Swim Spa Solution™
Gasket with or without
adhesive

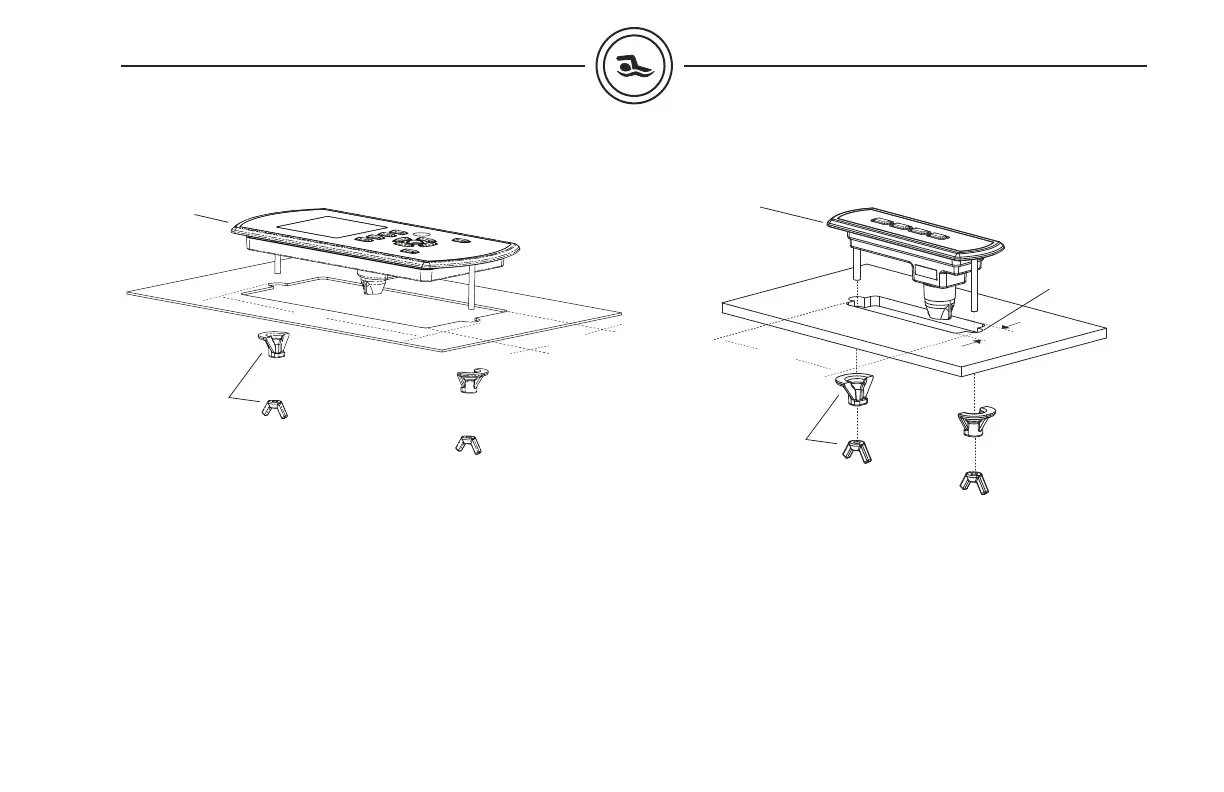

To install the in.k600
TM
low profile, determine the mounting
location and cut out a rectangular shape opening of 7.250" by
3.750" (see illustration).
Clean the installation surface and peel the adhesive gasket from the
back of the keypad.
Insert keypad and align it correctly, then ensure it's properly glued
by gently pressing evenly on the entire surface.
Installation in.k600
TM
Optional
wing nuts and
spacers
7.250"
3.750"
keypad installation & connections
Installation in.k100
TM
To install the in.k100
TM
, determine the mounting location and cut
out a rectangular shape opening of 4
3/32" by 1 3/32" (see illustration).
Clean the installation surface and peel the adhesive gasket from the
back of the keypad.
Insert keypad and align it correctly, then ensure it's properly glued
by gently pressing evenly on the entire surface.
4
3/32
"
∅ 7/16"
Gasket with or
without adhesive
1
3/32
"
Optional
wing nuts and
spacers
