gefran 1300 User Manual

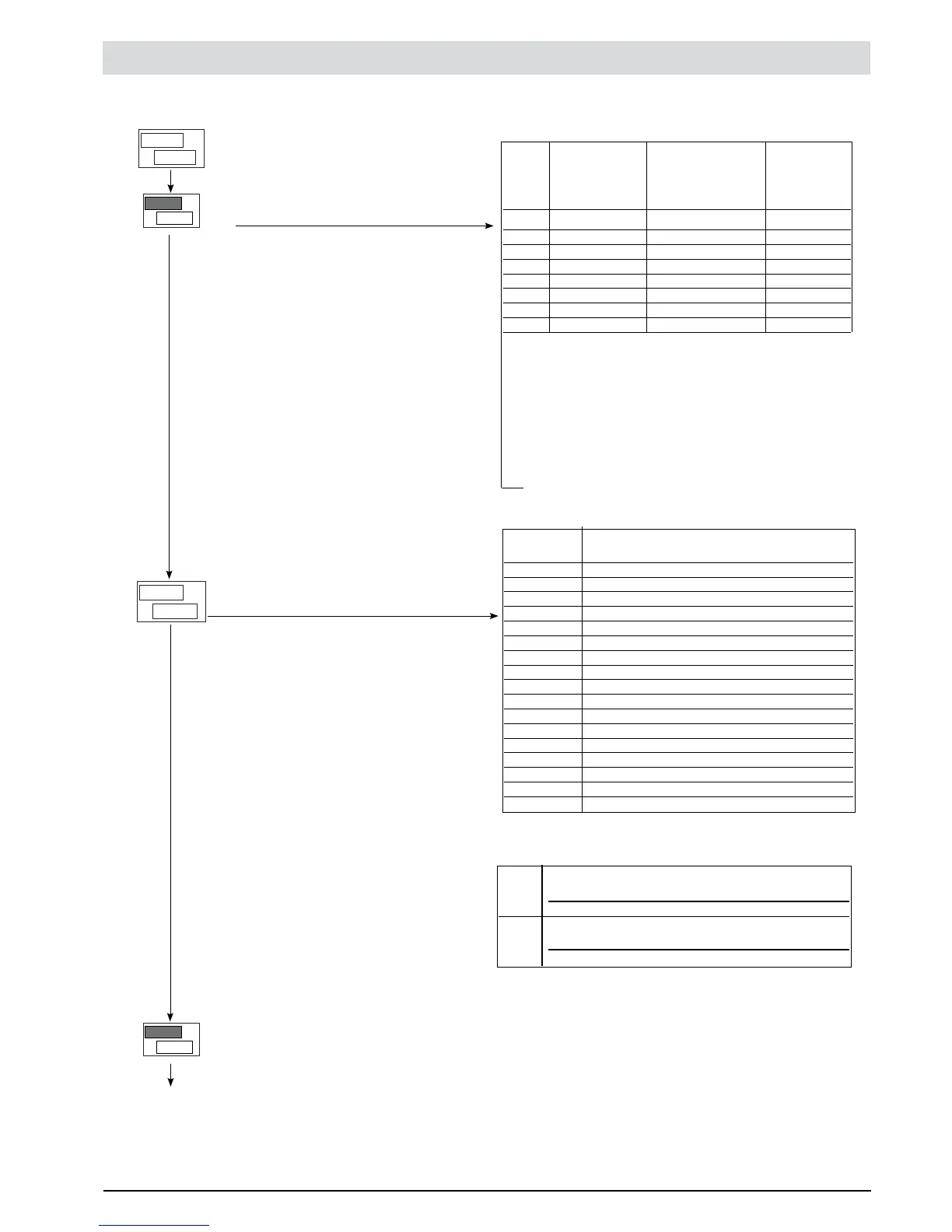

0VT Outputs Settings Second menu to set up -Easy-
This menu is used to configure the type of Alarm 1 and the Output 2 cycle time.
PV
SV
v
0
t
---
0
AI.t
PV
SV
Alarm type 1
If more alarms are
enabled *, please set
them using the same
table
* (A2t, A3t).
A1.T Direct
(high limit Normal
Inverse Absolute/Relative Symmetric
(low limit) to active Setpoint (window)
0 Direct Absolute Normal
1 Inverse Absolute Normal
2 Direct Relative Normal
3 Inverse Relative Normal
4 Direct Absolute Symmetric
5 Inverse Absolute Symmetric
6 Direct Relative Symmetric
7 Inverse Relative Symmetric
By adding the following amounts to the values shown in
the table a series of supplementary functions can be
enabled
+8: to disable on power up until first interception.
+16: to enable alarm memory.
+32: KY.1 menu [FG = alarm trigger delay time
([0..999] sec. (excluding absolute symmetric)
+64: KY.1 menu [FG = alarm trigger delay time
([0..999] min. (excluding absolute symmetric)
20
Gt.2
PV
SV
OUT 2 Cycle time (HEAT or COOL)
[1 ... 200] sec.
the same setting range is valid also for
Ct1, Ct3, Ct4.
PV
SV
L.
r
2
1
OUT 1
Allocation of reference signal
If more outputs are available *, plea-
se set them using the same table
* (rL2, rL3, rL4)
RL.1; RL.2
RL.3; RL.4 Function
0 HEAT (control output for heating)
1 COOL (control output for cooling)
2 AL1 – alarm 1
3 AL2 – alarm 2
4 AL3 – alarm 3
5 AL. HB – HB alarm
6 LBA – LBA alarm
7 IN – repetition of logic input 1
8 Repeat but key (if BVT menu KRD = 8)
9 AL1 or AL2
10 AL1 or AL2 or AL3
11 AL1 And AL2
12 AL1 and AL2 and AL3
13 AL1 or AL. HB
14 AL1 or AL2 or AL. HB
15 AL1 and AL. HB
16 AL1 and AL2 and AL. HB
Add +32 to the values indicated in the table to obtain the denied
logic level in output, except for codes 0..1 with continuous output
64 * RL.2 HEAT: heat control output with fast cycle time
(0.1 ... 20.0 sec.)
RL.3 HEAT: continuous output 2 – 10 V
65 * RL.2 COOL: cool control output with fast cycle
time (0.1 ... 20.0 sec.)
RL.3 COOL: continuous output 2 – 10 V
*) only for RL.3 o RL.2 if continuous OUT3 is not present
17
81801G_MHW_1200-1300_07-2011_ENG
