Gehl CTL80 User Manual

103
MAINTENANCE
L H
1
2
T7G005

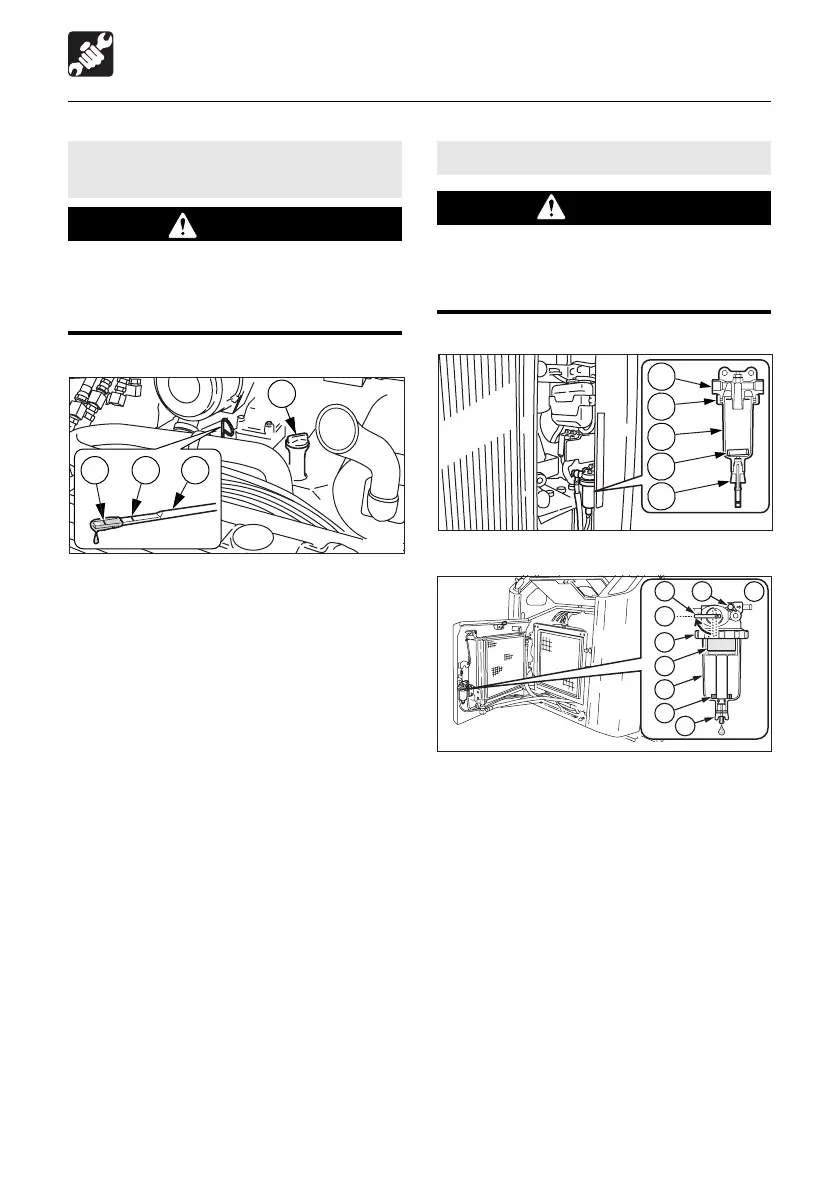

Inspecting and Replenishing the
Engine Oil
WARNING
Stop the engine and allow the machine
to cool down before performing
inspection and maintenance.
Inspection
1. Open the engine hood.
2. Pull out the dipstick (1) and wipe off the
oil with a rag.
3. Fully reinsert the dipstick (1), then pull it
back out.
4. Check the oil on the dipstick (1).
The level should be between the upper
limit (H) and lower limit (L).
If it is below the lower limit (L), replenish.
Replenishing
1. Remove the oil supply cap (2).
2. Add oil up to the upper limit (H) of the
dipstick (1).
Problems could arise if the oil level is either
too low or too high.
3. Tighten the oil supply cap (2).
4. Start the engine, run it at low idle for about
3 minutes, then stop it.
5. After about 20 minutes, inspect the oil
level.
Inspecting the Water Separator
WARNING
Stop the engine and allow the machine
to cool down before performing
inspection and maintenance.
< CTL70 >
< CTL60 / CTL80 >
S : Closed
1. Open the rear door.
2. Inspect the water separator (1).
If the red indicator ring (6) is sunk to the
bottom of the case (4), no water is mixed
in.
If the red indicator ring (6) is floating, there
is water up to the bottom of the ring. Drain
the water and clean.
3. Place a pan under the drain valve (7).
4. Open the drain valve (7) and drain the
water.
If the water does not drain easily, loosen
the vent plug (8).
5. Close the drain valve (7) and vent plug
(8).
Daily Inspection (Every 10 Hours)
T9G003
1
7
6
4
3
ON
OFF
6
3
S
5
4
2
1
7
8
T7G0062
