36
CONTROLS

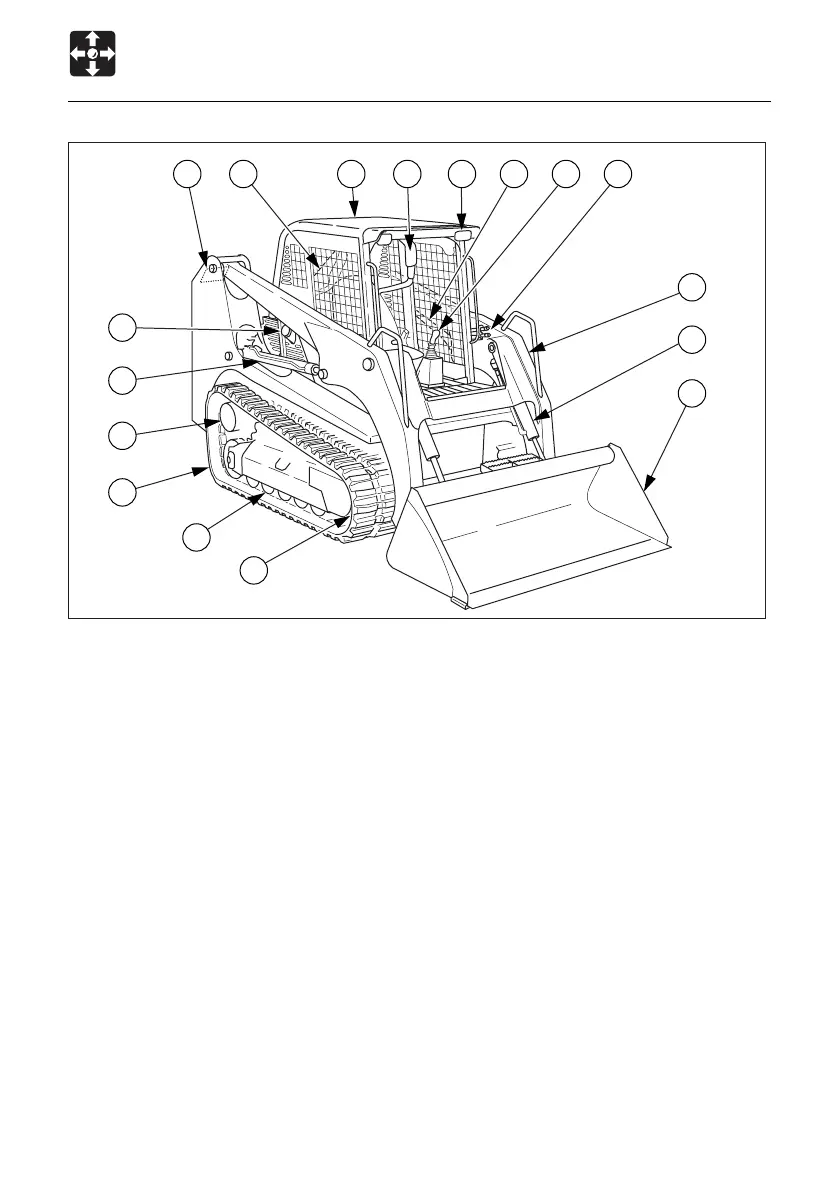

Names of Components
1.
T
ail light
2.
Hydraulic tank
3.
ROPS
4.
Safety bar
5.
Front light
6.
Lift arm stop
7.
Left control lever
8.
Auxiliary hydraulic lines
9.
Lift arm
10.
Bucket cylinder
11
.
Bucket
12.
Fuel filler cap
13.
Arm cylinder
14.
T
ravel motor
15.
Crawler belt
16.
T
rack roller
17.
Idler
T9B006
23
4
5678
10
12
13
14
15
16
17
1
9
11
37
39
Table of Contents
Table of Contents
7
Introduction
4
Machine Description
5
Table of Contents
7
Safety
9
Controls
37
Names of Components
38
Doors and Covers
40
Seat and Seat Belt
44
Instrument Panel
46
Switches
48
Levers and Pedals
52
Accessories
54
Operation
59
Before Starting Operation
60
Starting and Stopping the Engine
61
Machine Operation
64
Operating Procedures
72
Parking the Machine
80
Handling in Cold Weather
81
Handling Rubber Crawlers
82
Transport
85
Maintenance
89
General
90
Service Data
92
Important Parts
96
Maintenance Chart
98
Maintenance Log
100
Walk-Around Inspection
102
Daily Inspection (Every 10 Hours)
104
(New Machines Only)
109
After First 50 Hours
109
Every 50 Hours
113
Every 100 Hours
116
Every 250 Hours
117
After First 500 Hours (New Machines Only)
118
Every 500 Hours
119
Every 1000 Hours
122
Every 2000 Hours
127
When Required
128
Long-Term Storage
133
Troubleshooting
135
Symptoms that Are Not Malfunctions
136
If the Engine Overheats
137
If the Battery Goes Dead
138
After the Fuel Runs out
139
If a Fuse Blows
140
If a Warning Lamp Flashes
142
Other Symptoms
144
To Lower the Lift Arms
