CONTROLS

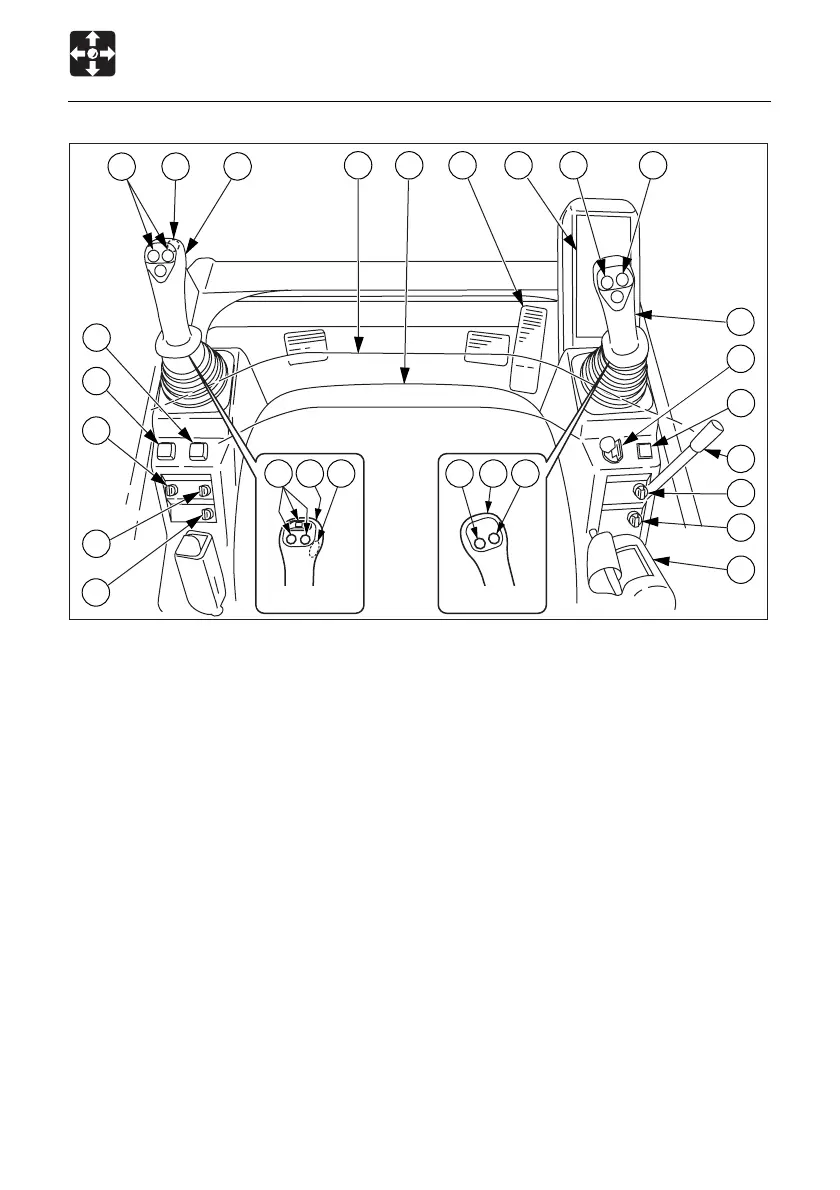

Names of Components
1. Left control lever
2. Travel speed switch
3. Auxiliary hydraulic switches
4. Detent mode switch
(for auxiliary hydraulic switches)
5. Flow selector switch (2way → 1way)
6. Heater switch (option)
7. Front wiper switch (option)
8. Rear wiper switch (option)
9. Safety bar
10. Seat
11. Auxiliary pedal (If equipped)
12. Instrument panel
13. Float switch
14. Horn switch
15. Right control lever
16. Starter switch
17. High flow switch (option)
18. Throttle lever
19. Front light switch
20. Tail light switch
21. Seat belt
T9B007
1
10 14
15
16
17
18
19
12
13
1123
4
5
6
7
8
9
20
21
1415133 21
If EquippedIf Equipped
