MAINTENANCE
When Required
IMPORTANT: Before operating the
machine, always inspect the quick
attachment latch pin (4) engagement by
raising the loader arms high enough to
view the latch pin (4) engagement from
the operator’s seat.
Supplement: If the quick attachment (3)
lock levers (2) do not lower into the LOCKED
position, remove the attachment and
investigate the cause.
Removal
1. Raise the bucket (1) or attachment 25 to
50 mm (1 to 2 in.) off the ground.
2. Stop the engine, raise the safety bar and
release the seat belt.
3. Pull both attachment lock levers (2)
upward to disengage the bucket (1) or
attachment.
4. Return to the operator’s seat, lower the
safety bar, fasten the seat belt and start
the engine.
5. Rotate the quick attachment (3) out
(bucket dump function) allowing the
bucket or attachment to slide off the top
edge of the quick attachment (3).

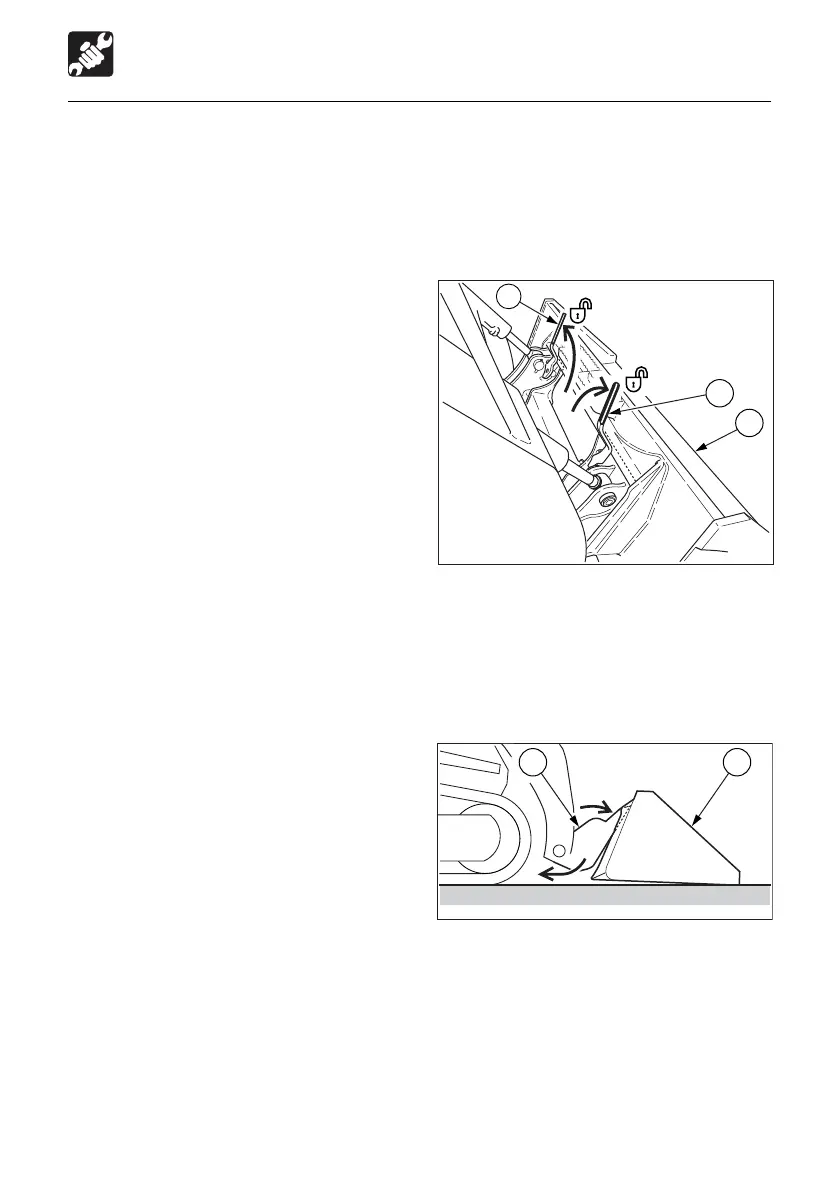

T9G013
1
2
2
1
3
T9G014
