Gehl CTL80 User Manual

41
CONTROLS

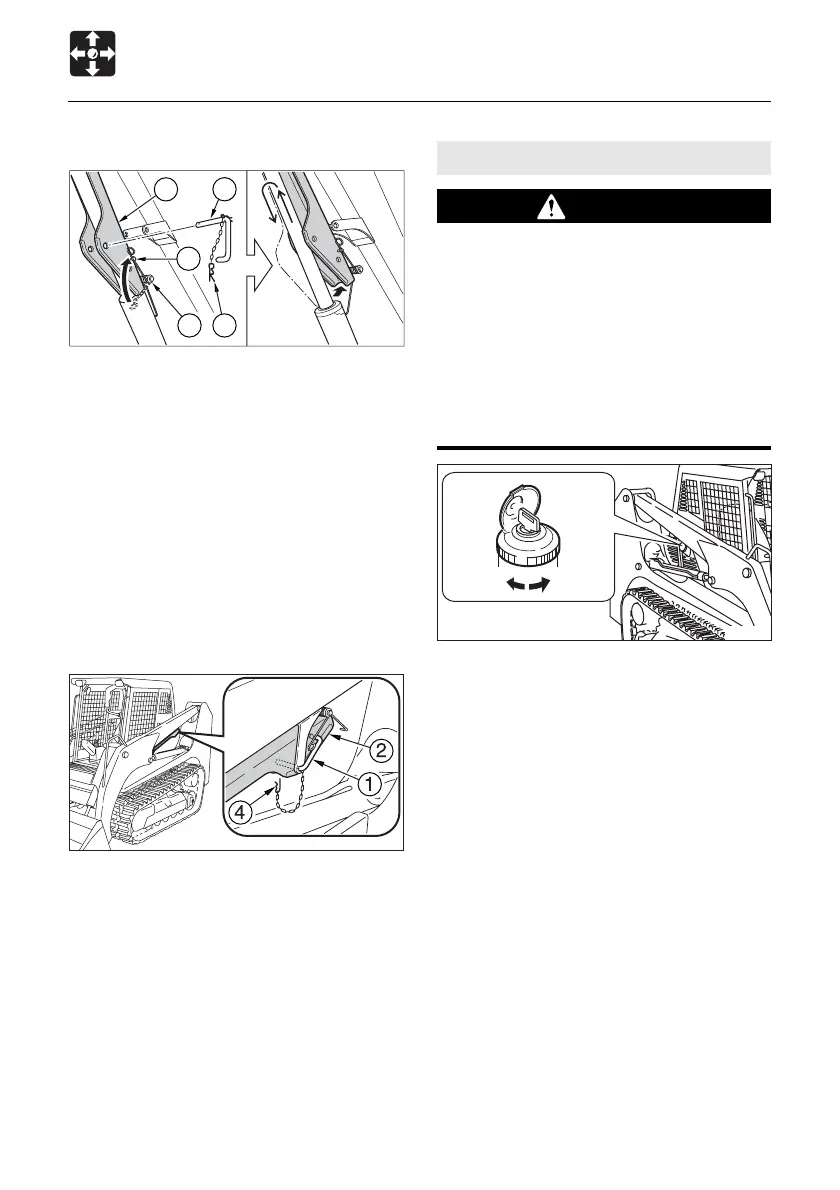

Doors and Covers
Fuel Filler Cap
WARNING
¡¡
¡¡
¡Do not smoke or permit open flames
while fueling or near fueling
operations.
¡¡
¡¡
¡Supply fuel in a well ventilated place
and with the engine stopped.
¡¡
¡¡
¡Clean up spilled fuel immediately.
¡¡
¡¡
¡Do not fill the fuel tank to capacity.
Allow room for expansion.
¡¡
¡¡
¡Tighten the fuel filler cap securely.
Opening
1. Open the key cover, insert the key and
turn it counterclockwise to unlock the fuel
cap.
2. Turn the fuel cap counterclockwise and
remove it.
Closing
1. Set the fuel cap in place and turn it
clockwise.
2. Turn the key clockwise to lock the fuel cap,
then remove the key.
Disengagement
1. Remove the rear R-pin (4) from the locking
pin (1).
2. Pull out the locking pin (1) from the lift arm
stop (2).
3. Hook the end part of the spring (3) onto
the hook (5) of the lift arm stop (2).
4. Sit in the seat, fasten the seat belt, start
the engine and lower the safety bar.
5. Raise the lift arms slowly until the spring
(3) will lift the lift arm stop (2) off the cylinder
rod.
6. Lower the lift arms slowly to the ground
and stop the engine.
7. Raise the lift arm stop (2) into storage
position and insert the locking pin (1)
through lift arm stop and bracket.
8. Install the R-pin (4) to the locking pin (1).
T7B005E
Close Open
T9B004
5
4
3
1
2
T9B005
