Gehl R220 User Manual

50950106/AP0313 15
ISO-Style (used Internationally)

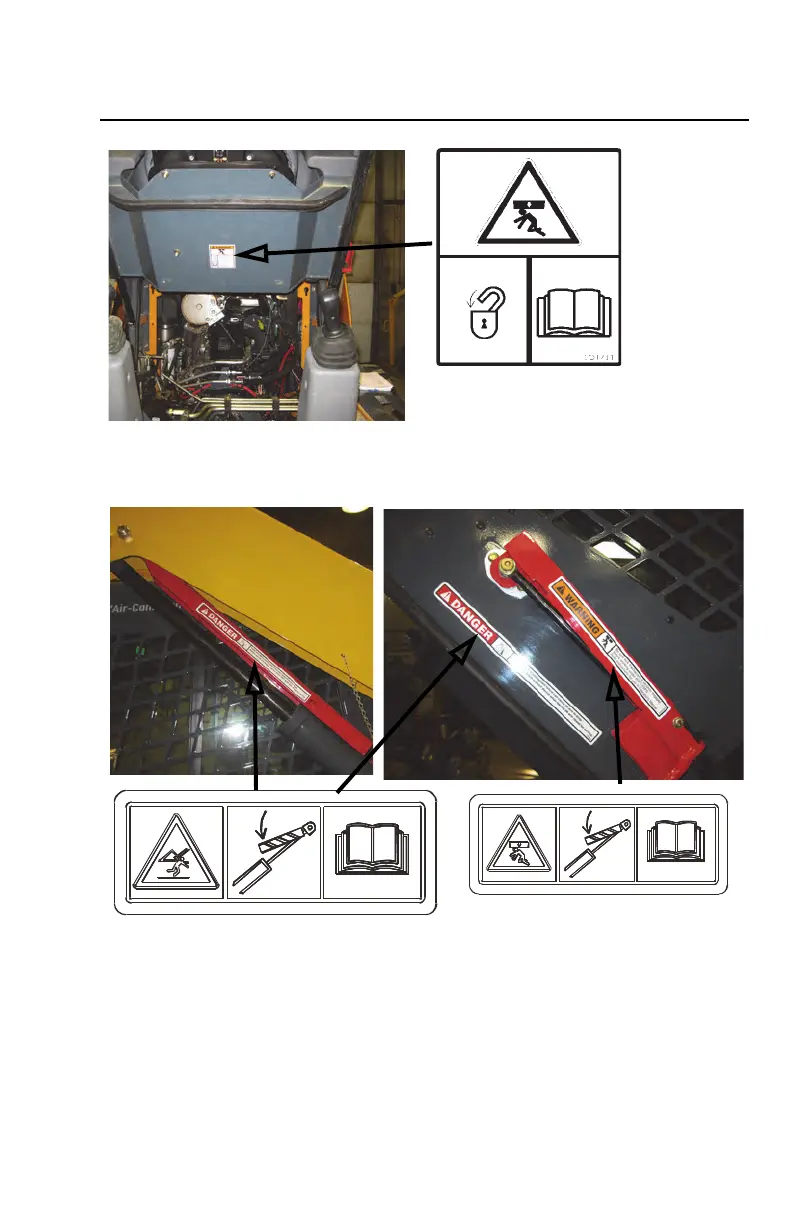

Safety Decals on the outside of the Loader
50352631
50352566
184711 – Located under the ROPS/FOPS
Crush hazard: Be sure lock mechanism is
securely engaged before working under
ROPS/FOPS. Read instructions for use
in Operator’s Manual.
50352631 – Located on the left side of the
ROPS/FOPS and on the lift arm support
device
50352566 – Located on the ROPS/
FOPS locking mechanism
A
B
C
A
B
C
A – Crush hazard: Keep out from under lift
arm unless lift arm is supported.
B – Secure lift arm support device.
C – Read instructions for use in Operator’s
Manual.
A – Crush hazard: Be sure lock
mechanism is securely engaged
before working under ROPS/
FOPS.
B – Secure lift arm support device.
C – Read instructions for use in
Operator’s Manual.

Gehl R220 Specifications

General

Engine Power	70.7 hp
Rated Operating Capacity	2, 200 lbs
Tipping Load	4, 400 lbs
Engine Make	Yanmar
Hydraulic Pressure	3, 335 psi
