50950106/AP0313 79
Engine Service
2
1
3
4
5
6
7
8
9
10
11, 12
13
14
2
1
3
4
5
6
7
8
9
10
12
13
14
11

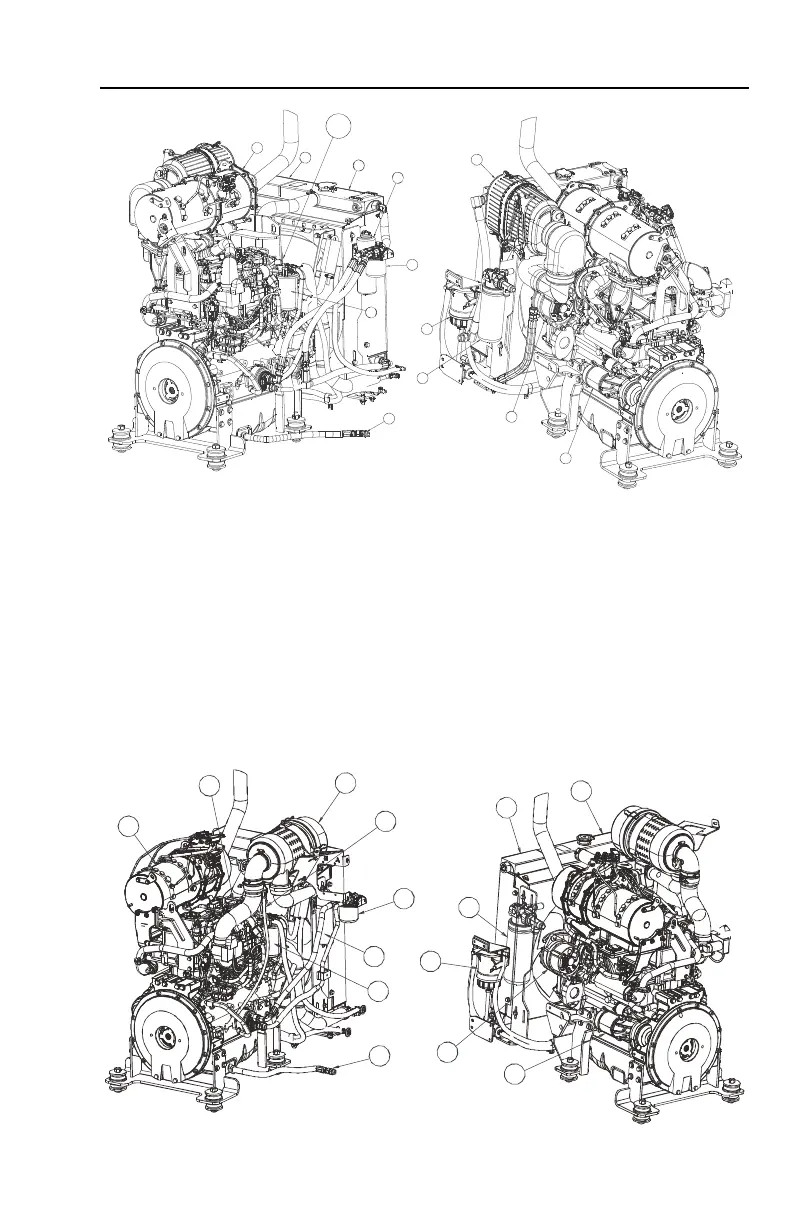

Figure 40 Engine Service Components
1. Muffler
2. Air Cleaner
3. Coolant Bottle
4. Engine Radiator
5. Hydraulic Cooler
6. Hydraulic Filter
7. Remote Engine Oil Filter
8. Water Separator
9. Fuel Filter
10. Remote Engine Oil Drain
11. Engine Oil Fill Cap
12. Engine Oil Dipstick
13. Starter
14. Alternator
R220/R260 Models
R190 Models
