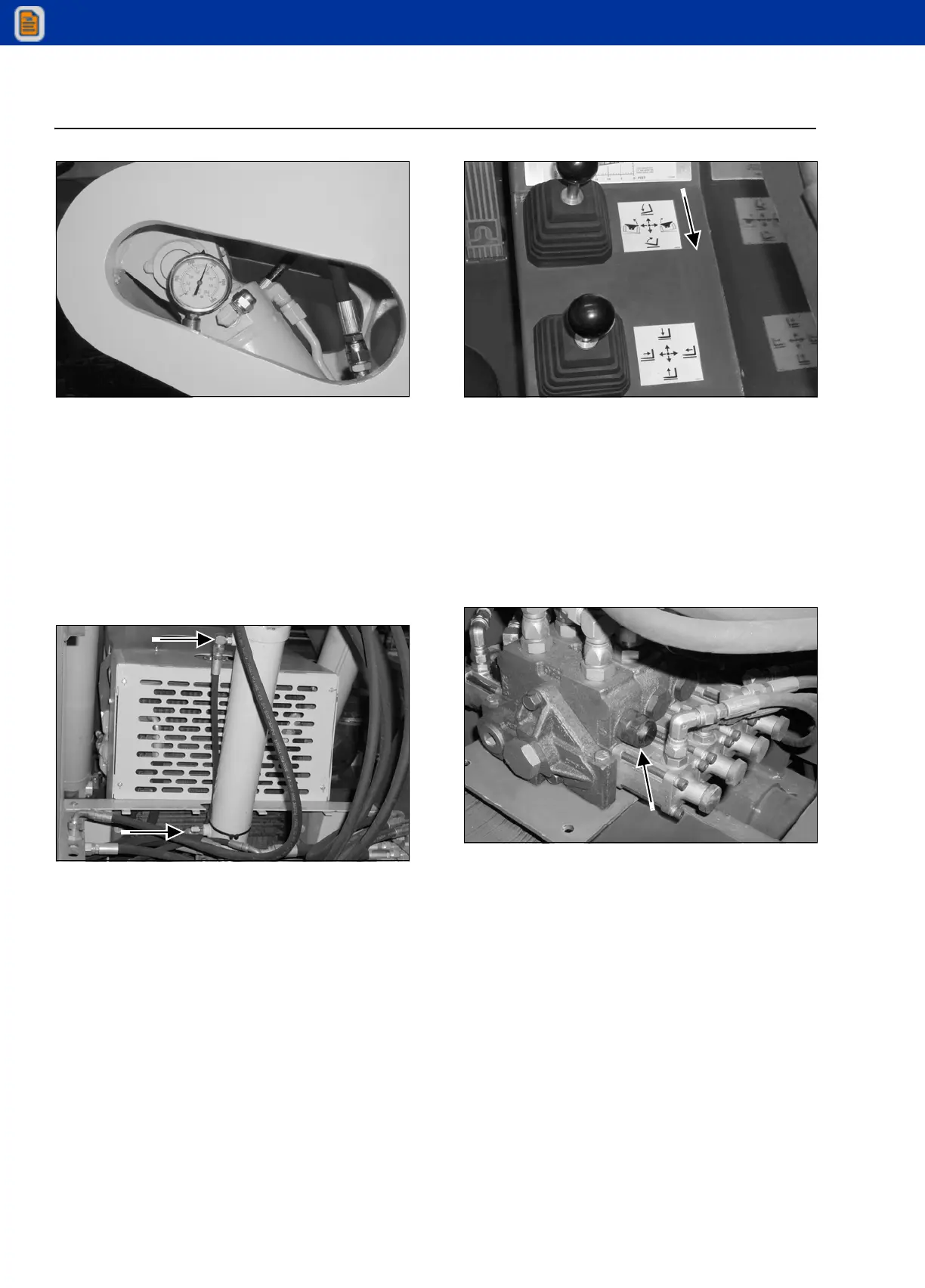

STEP 31
G0805104
Start the engine and run at 1000 RPM. Hold the
joystick in the TILT UP position. The pressure gauge
should read 3000 psi (207 bar).
If the pressure is 3000 psi (207 bar), repair or replace
the tilt cylinder.
If the pressure is less than 3000 psi (207 bar),
proceed to the next step.
STEP 32
G0805100
Shut off the engine. Remove the slave cylinder
hoses. Install plugs in the hose ends and caps on the
fittings.
STEP 33
G0805077
Start the engine and run at idle RPM. Hold the
joystick in the TILT UP position.
If the pressure gauge reads 3000 psi (207 bar),
repair or replace the slave cylinder.
If the pressure is less than 3000 psi (207 bar),
proceed to the next step.
STEP 34
G0805102
Replace the tilt up relief valve.
STEP 35
Repeat Steps 32 and 33. If the pressure is less than
3000 psi (207 bar) repair or replace the control valve.
To Next Page
