RS5-34 Telescopic Handler ENGINE
MANDATORY SAFETY SHUTDOWN
PROCEDURE
BEFORE cleaning, adjusting, lubricating, or
servicing this unit:
1. Stop machine on a level surface. (AVOID parking
on a slope, but if necessary, park across the
slope and block the tires.)
2. Fully retract the boom and lower the attachment
tool to the ground. Idle engine for gradual
cooling.
3. Place controls in neutral and apply parking
brake.
4. Shut off the engine and remove the key.
ONLY when you have taken these precautions
can you be sure it is safe to proceed. Failure to
follow the above procedure could lead to death or
serious injury.
RELIEVE HYDRAULIC OIL PRESSURE:
1. Engage the park brake.
2. Lower equipment to the ground. Return the
engine to idle for 30 seconds then shut down the
engine.
3. Turn the key switch on. Operate the joystick in
each direction. Confirm that there is no
attachment or unit movement. This should
ensure there is no residual pressure trapped in
the control circuit.

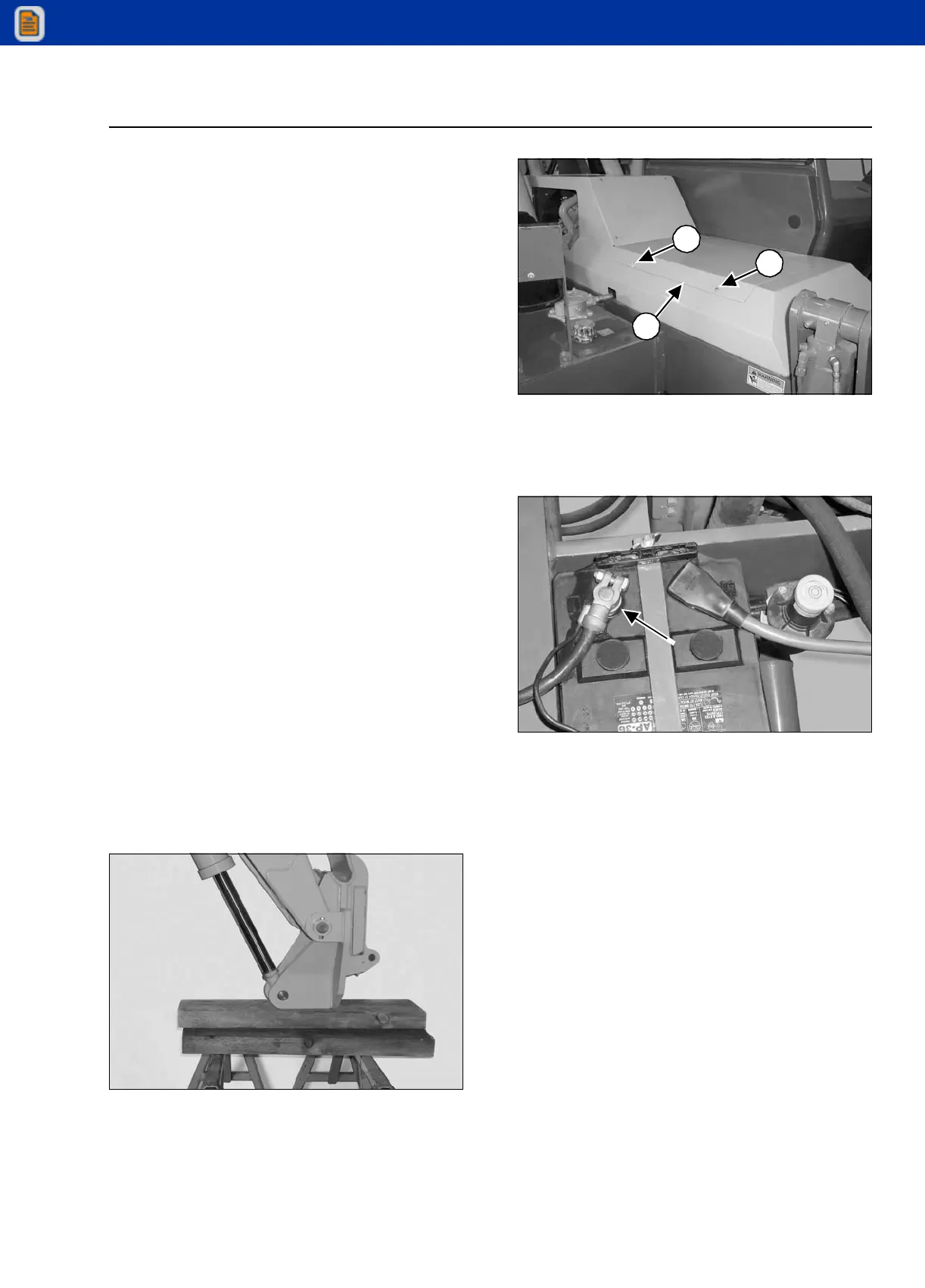

ENGINE REMOVAL
STEP 1
G0805189
Raise the telescopic boom approximately 60 inches
(1.5 m) to allow a hoist to be used for removal and
installation. Support the boom on a support stand.
STEP 2
G0805075
Loosen the two thumbscrews and remove the battery
access cover (2).
STEP 3
G0905001
Disconnect the negative (-) battery cable from the
battery.
