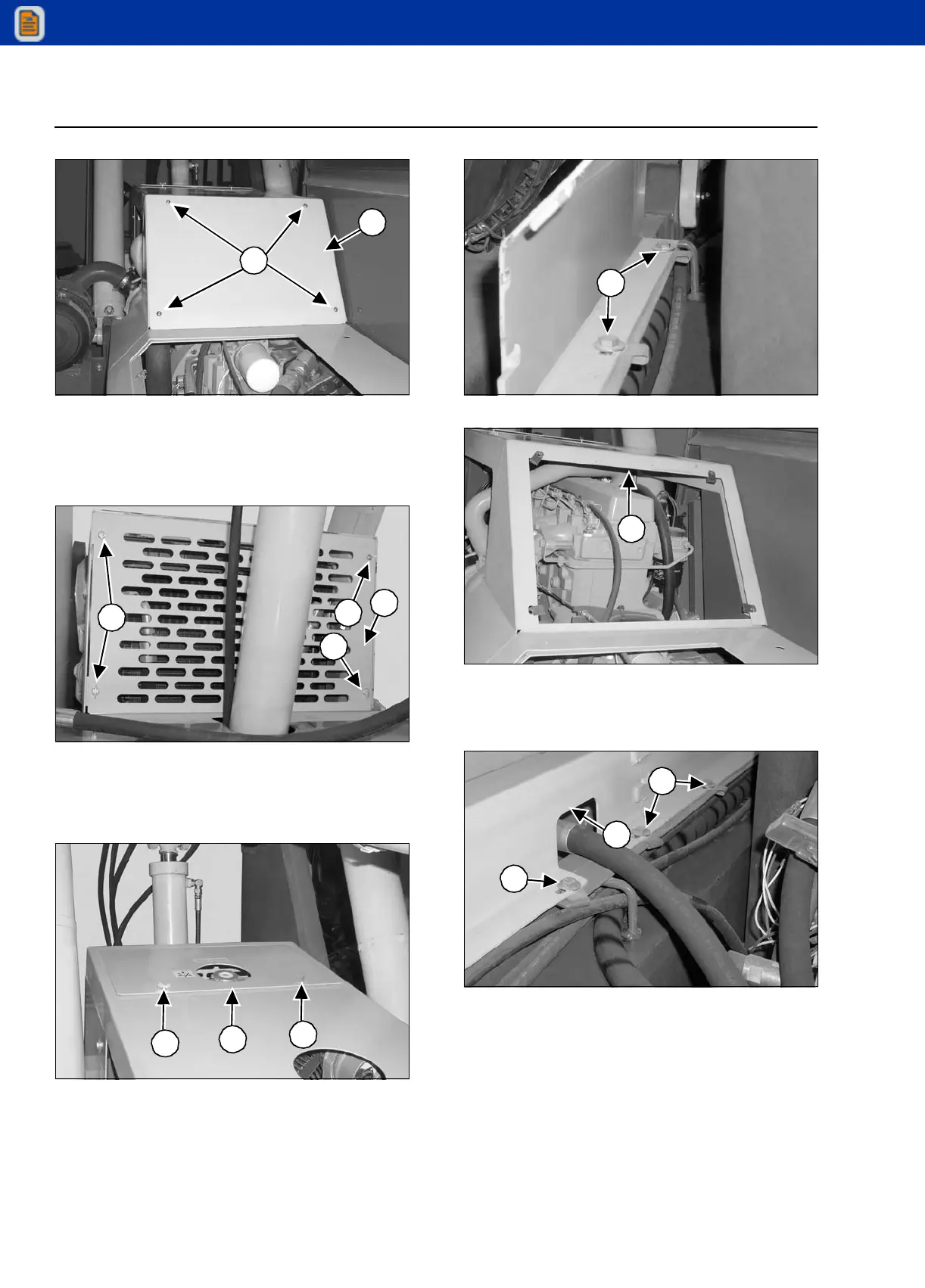

STEP 4
G0905077
Remove the four screws (1) and the fuel filter access
cover (2).
STEP 5
G0905082
Loosen the four thumbscrews (1) and remove the
radiator grille (2).
STEP 6
G0905080
Loosen the two thumbscrews (1) and remove the
radiator cover (2).
STEP 7
G0905083
G0905081
Remove the four bolts (1) and the engine cover (2).
STEP 8
G0905079
Remove the six bolts (1) and the transmission cover
(2).
1
2
1
1
1
2
1
1
2
1
2
1
1
2
