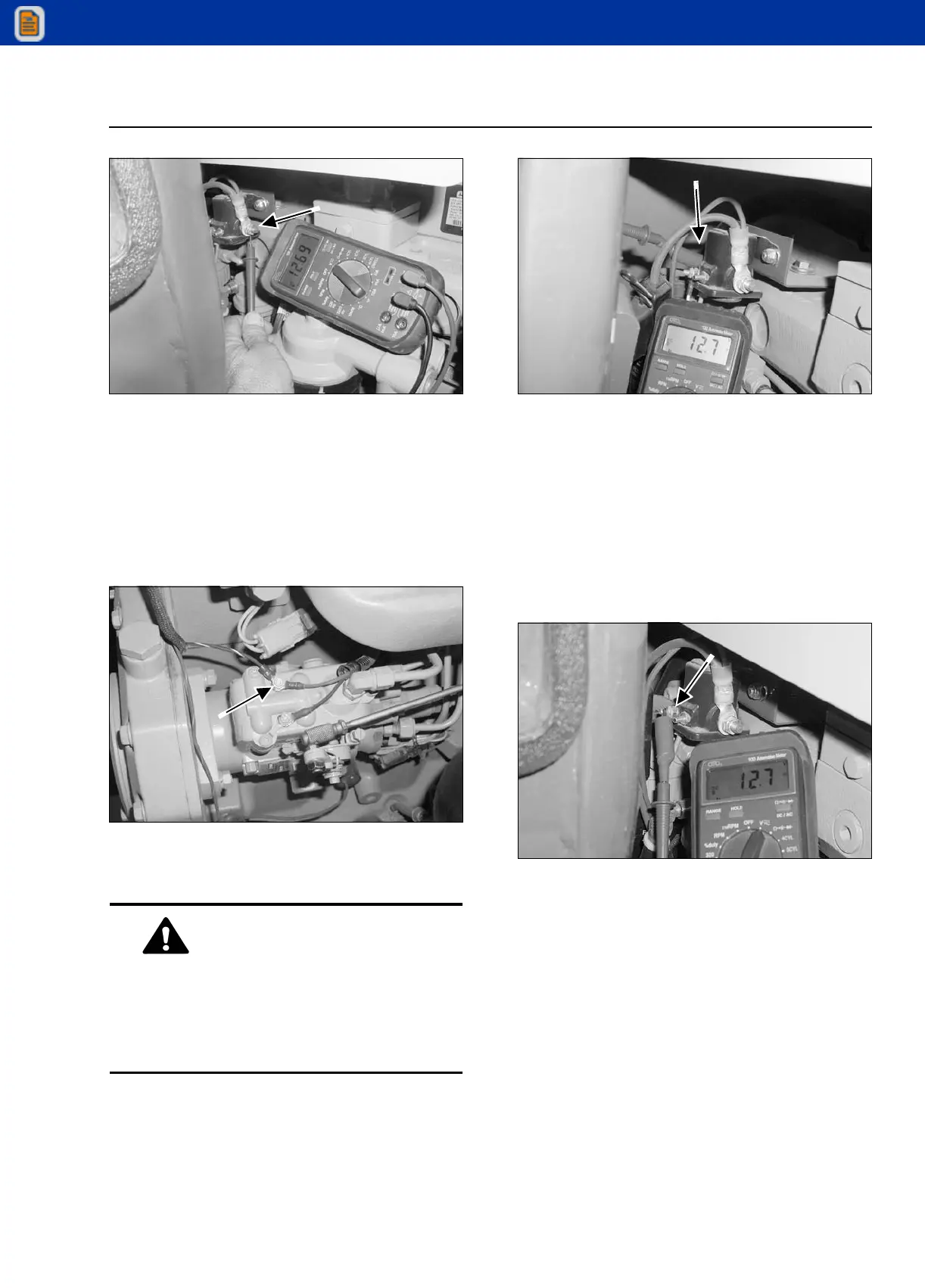

STEP 8
G0805156
Connect the positive (+) test lead to the battery
terminal of the starter relay. The multimeter should
read 12 to 13 volts.
If there is no voltage, replace the wire between the
starter relay battery terminal and the starter.
If there is 12 to 13 volts, proceed to the next step.
STEP 9
G0805158
Remove the wire from the fuel shut off solenoid.
STEP 10
G0805184
Connect the positive (+) test lead to the starter
terminal of the starter relay. Turn the key switch to the
ON position and press the starter button. The
multimeter should read 12 to 13 volts.
If there is no voltage, proceed to the next step.
If there is 12 to 13 volts and the starter does not turn
over the engine, repair or replace the starter and/or
the starter solenoid.
STEP 11
G0805183
Turn the key switch to the OFF position. Connect the
positive (+) test lead to the ignition terminal of the
starter relay. Turn the key switch to the ON position
and press the starter switch. The multimeter should
read 12 to 13 volts.
If there is no voltage, proceed to the next step.
If there is 12 to 13 volts, but the starter does not turn
over the engine, turn the key switch to the OFF
position and replace the starter relay.
Install the wire on the fuel shutoff solenoid.
WARNING
When a test involves turning over the engine
or starting the engine, use test leads long
enough to read the multimeter from the
operator’s seat or standing clear of the
machine.
To Next Page
