Gehl RS5-34 Service Manual

RS5-34 Telescopic Handler ELECTRICAL
PRINTED IN U.S.A. 301-21 913241
Alt
=
to
hide
template
information
Alt+ to display template information
Template
Name:
OML
_
2
_
col
907871E
Template Date: 1997_02_12

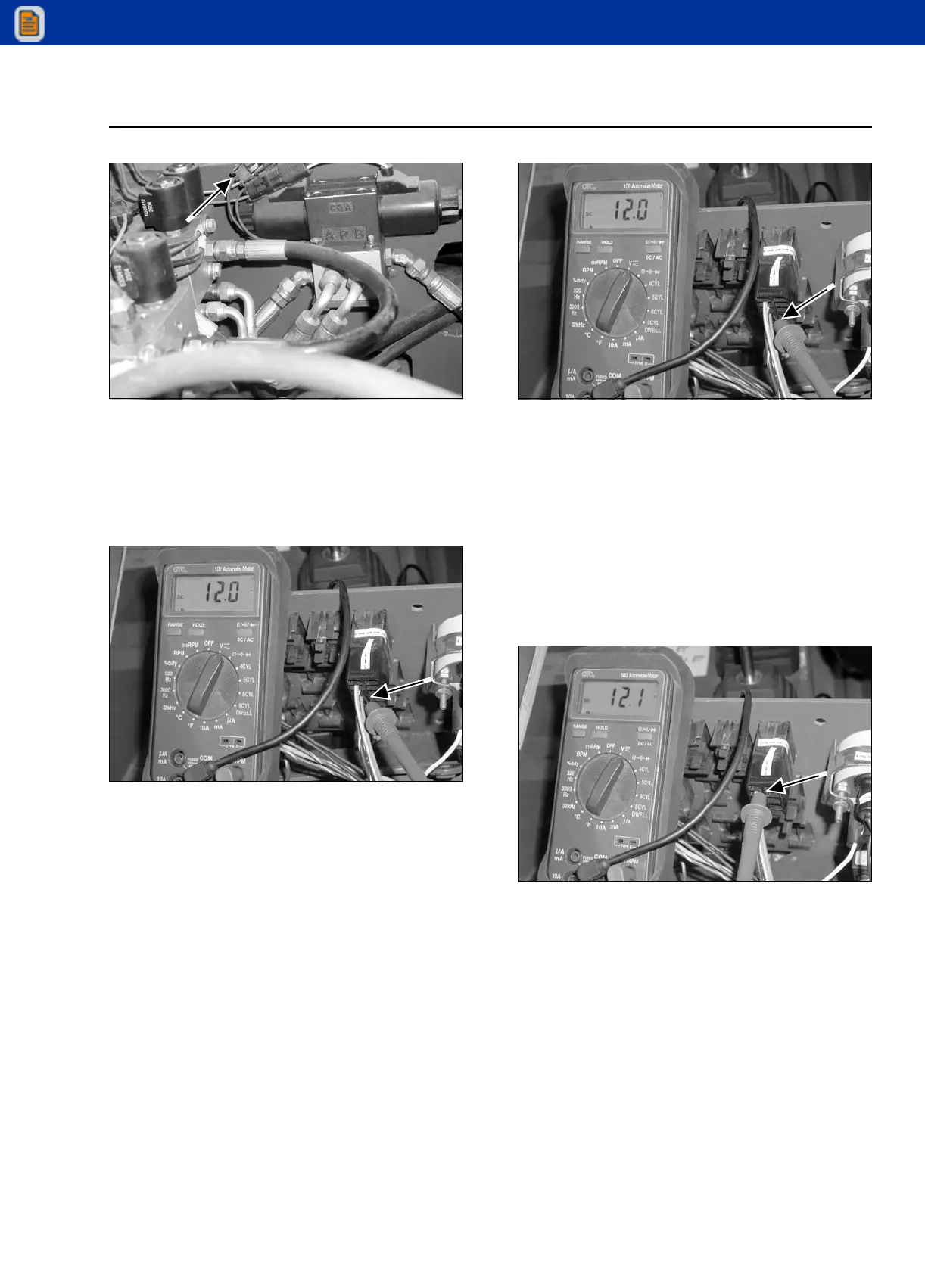

STEP 38
G0805135
If there is 12 to 13 volts, but the crab-steer mode
does not function, replace the solenoid valve.
Connect the wire harness to the crab-steer mode
solenoid connector.
STEP 39
G0805178
Complete Step 13 to remove the instrument panel.
Connect the positive (+) test lead to the black/yellow
wire terminal of the steer-mode switch located on the
left side of the instrument panel. With the key switch
in the ON position the multimeter should read 12 to
13 volts.
If there is no voltage, repair or replace the black/
yellow wire between the switch and the fuse panel.
If there is 12 to 13 volts, proceed to the next step.
STEP 40
G0805179
Connect the positive (+) test lead to the green wire
terminal of the steer-mode switch. With the key
switch in the ON position and the steer-mode switch
in the 4-WHEEL-STEER position, the multimeter
should read 12 to 13 volts.
If there is no voltage, replace the steer-mode switch.
If there is 12 to 13 volts, but no voltage in Step 34,
repair or replace the green wire between the switch
and the solenoid valve.
STEP 41
G0805180
Connect the positive (+) test lead to the orange/white
wire terminal of the steer-mode switch. With the key
switch in the ON position and the steer-mode switch
in the CRAB-STEER position, the multimeter should
read 12 to 13 volts.
If there is no voltage, replace the steer-mode switch.
If there is 12 to 13 volts, but no voltage in Step 35,
repair or replace the orange/white wire between the
switch and the solenoid valve.
