STEP 34
G0805079

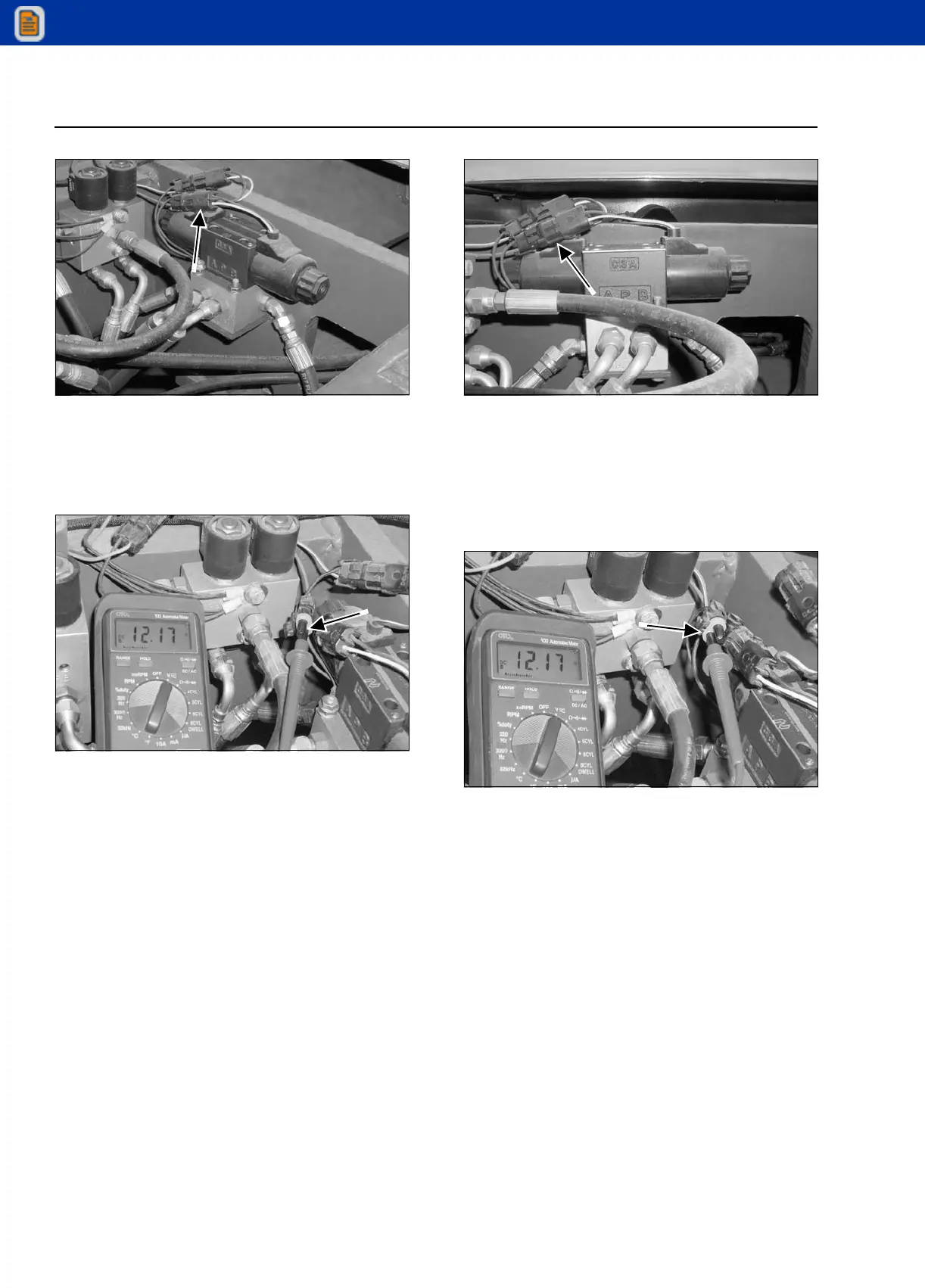

Set the multimeter to read DC volts. Disconnect 4-
wheel-steer wire harness (green and black wires)
from the steer-mode solenoid connector.
STEP 35
G0805176
Install the positive (+) test lead in the green wire
prong of the wire harness. With the key switch in the
ON position and the steer-mode switch in the 4-
wheel-steer position. The multimeter should read 12
to 13 volts.
If there is no voltage proceed to Step 42.
STEP 36
G0805083
If there is 12 to 13 volts but the 4-wheel-steer mode
does not function, replace the solenoid valve.
Connect the wire harness to the 4-wheel-steer mode
solenoid connector.
STEP 37
G0805177
Disconnect the crab steer wire harness (orange/
white and black wires) from the steer-mode solenoid
connector. Install the positive (+) test lead in the
orange/white wire prong of the wire harness. With the
key switch in the ON position and the steer-mode
switch in the crab-steer position, the multimeter
should read 12 to 13 volts.
If there is no voltage, proceed to the next step.
