STEP 7
G09050035

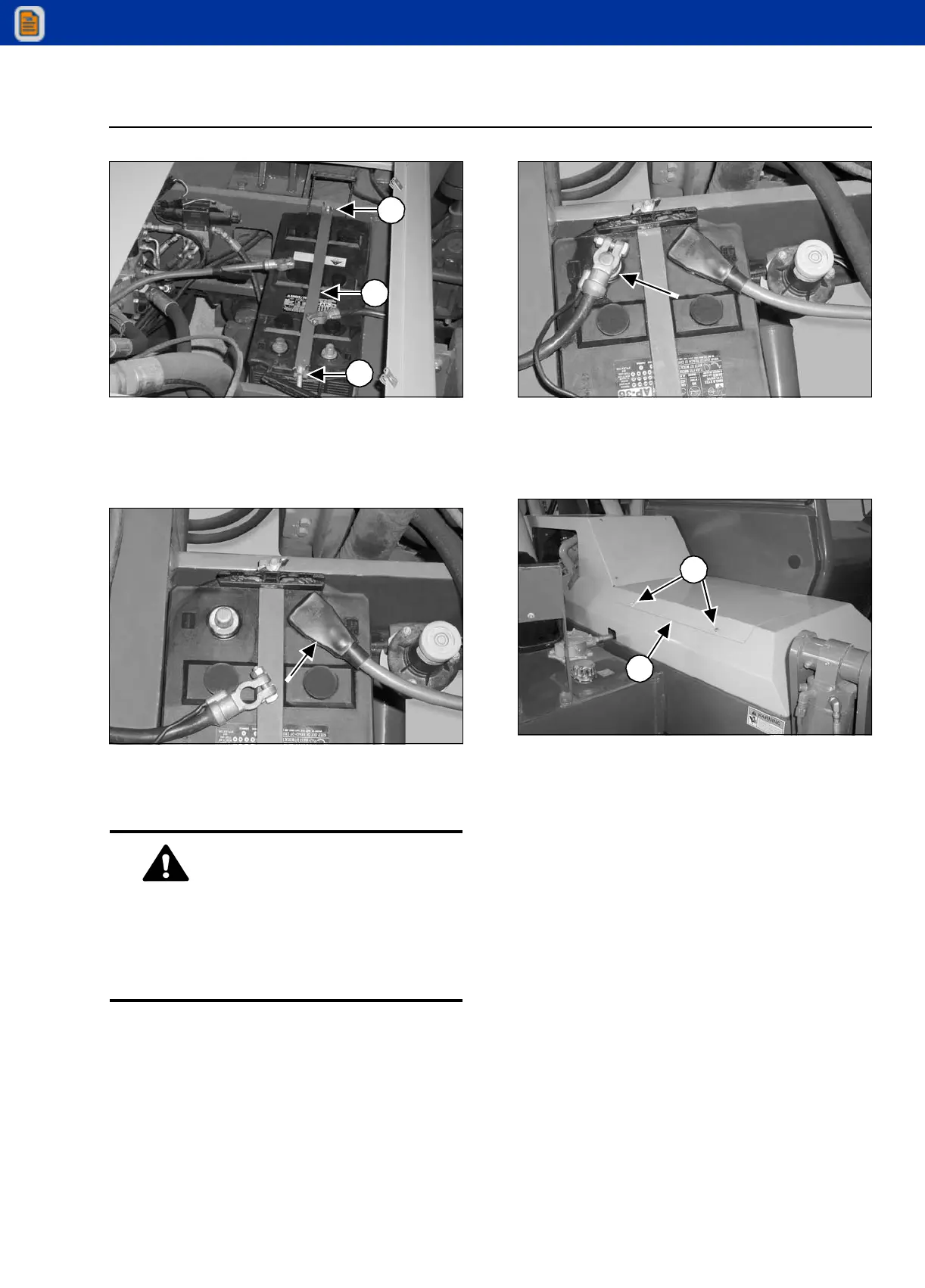

Install the hold-down bar (1) and secure with the two
wing nuts (2).
STEP 8
G0905002
Install the positive (+) battery cable on the positive
(+) battery post.
STEP 9
G0905001
Install the negative (-) battery cable on the negative (-
) battery post.
STEP 10
G0805075
Install the battery access cover (1) and secure using
the two thumbscrews (2).
WARNING
Always install the negative (-) battery cable
last so you do not cause a spark at the battery.
A spark can cause the battery to explode and
cause personal injury or damage to the
machine.
