Gehl Z27 User Manual

13. Operating Instructions
2-47
Operate the machine using the right and left control levers,
the boom swing pedal and the blade lever.
<STD Pattern>
• Control lever (L) : Operates arm and upperstructure swing.
• Control lever (R) : Operates boom and bucket.
<OPT Pattern>
• Control lever (L) : Operates boom and upperstructure swing.
• Control lever (R) : Operates arm and bucket.
• Boom swing pedal : Operates boom swing.
• Blade lever : Operates blade.

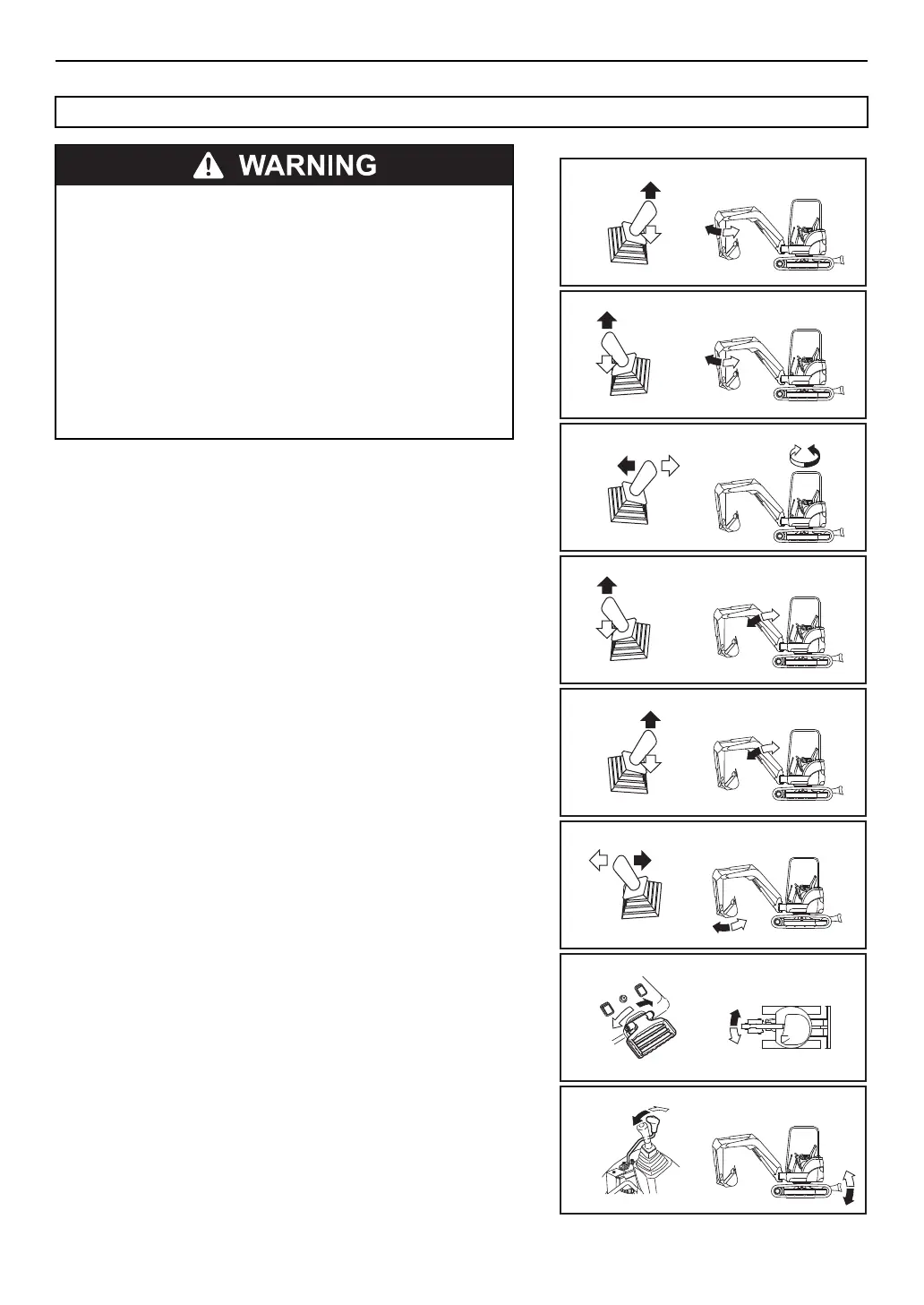

The relation between the operation of the levers and the
boom swing pedal, and the movement of the implement
are shown in the illustrations on the right.
On releasing the levers and the boom swing pedal, they re-
turn to the neutral position and the implement will stop as
they are.
13-8. Operating the implements
• Check the area around the machine for safety
and sound the horn before beginning to operate
the machine.
• According to the switching of pattern change le-
ver, control lever operation can be chosen in two
patterns.
• To prevent accidental injury, never operate Exca-
vator before confirming location of pattern
change lever.
عOperating the arm <STD Pattern>
عOperating the arm <OPT Pattern>
عSwing the upperstructure
عOperating the boom <STD Pattern>
عOperating the boom <OPT Pattern>
عOperating the bucket
عOperating the boom swing
عOperating the blade
Control lever (L)
Control lever (L)
Control lever (L)
Control lever (R)
Control lever (R)
Right
swing
Left
swing
Control lever (R)
Boom swing pedal
Blade lever
015568-00E
