3030 mFlow

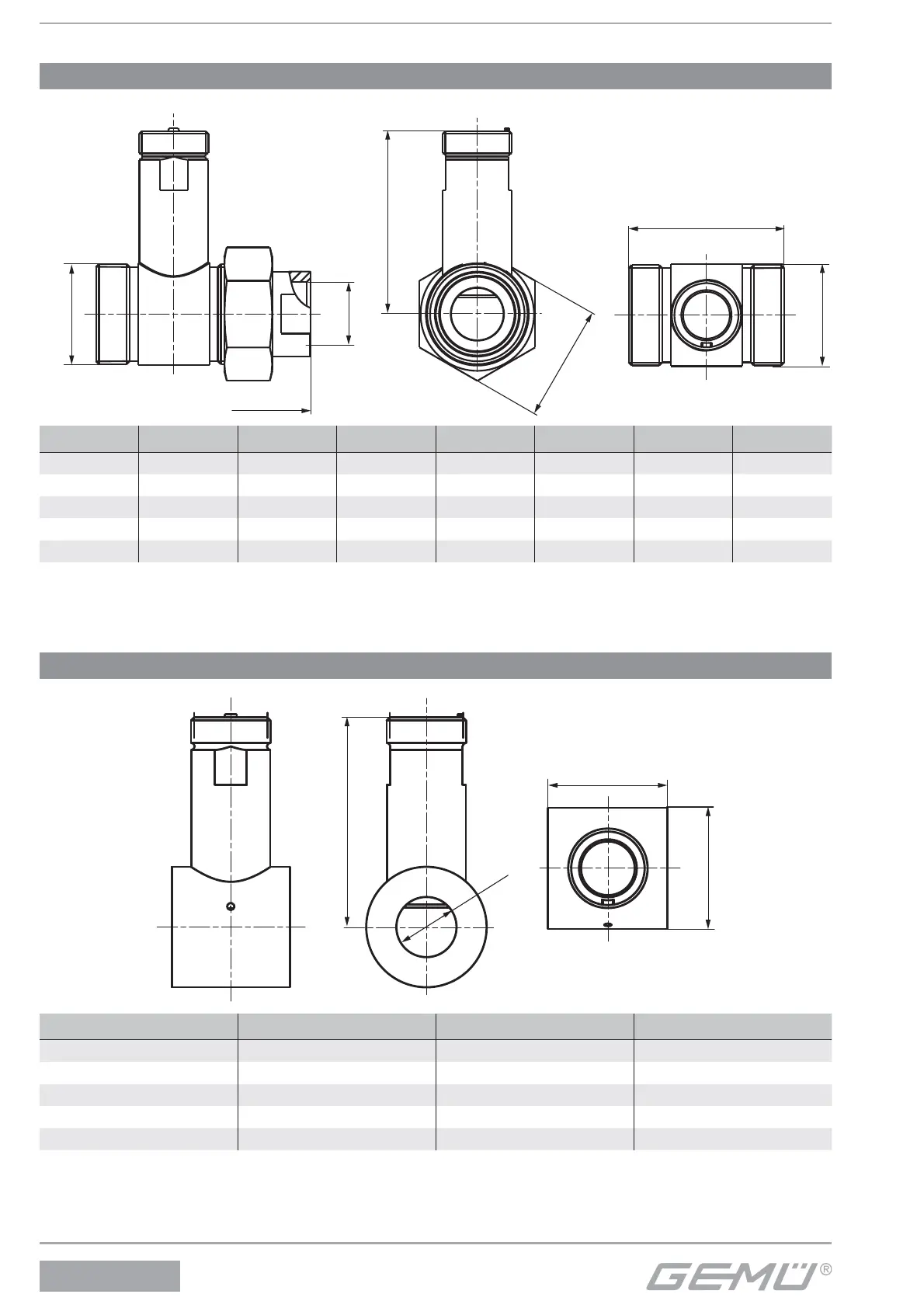

21.2 Dimensions of installation fi ttings
G
L1
Ød1
SW
H
ØD
L
L
DN
D
H
GEMÜ wafer-type flange
GEMÜ in-line housing
DN H L L1 SW d1 D G
25 87.0 74 130 55 Rp 1 48.5 G 1 1/2
32 89.0 74 140 65 Rp 1 1/4 60.0 G 2
40 91.8 74 142 75 Rp 1 1/2 66.0 G 2 1/4
50 95.8 106 186 90 Rp 2 81.5 G 2 3/4
65 101.5 106 192 110 Rp 2 1/2 101.0 G 3 1/2
DN H L D
25 87.0 49 50
32 89.0 49 60
40 91.8 49 70
50 95.7 49 107
65 101.5 49 100
