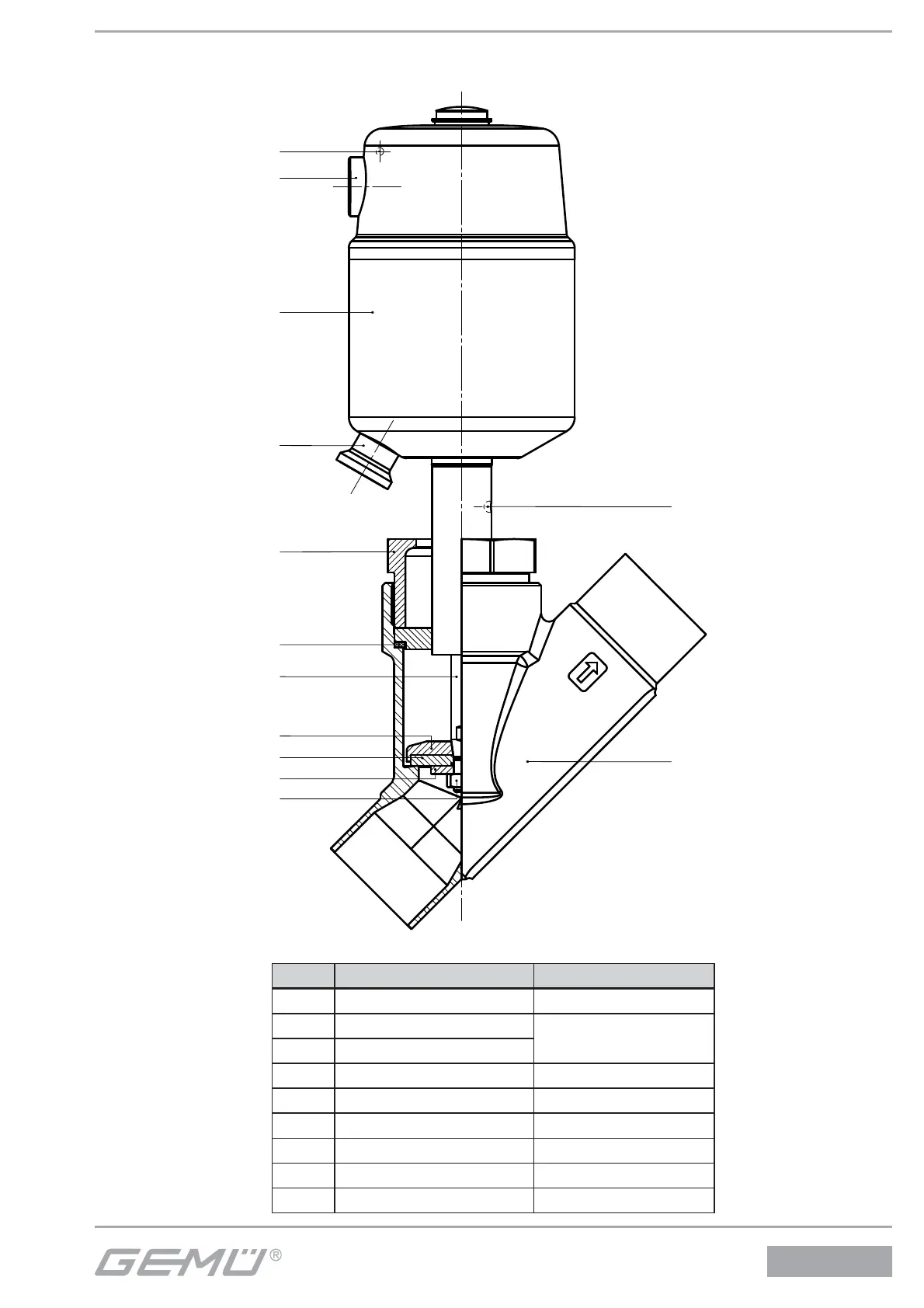

20 Sectional drawing and spare parts
Item Name Order description
1 Valve body K 500...
4 Gasket
}
550...SVS...
14 Seat seal
A Actuator 9550
a Union nut -
b Spindle -
c Valve plug -
d Nut -
e Washer -
Connector 2
Leak detection hole
Connector 4
A
a
4
d
b
c
1
14
Vent hole
e
