Pag.12
4.3

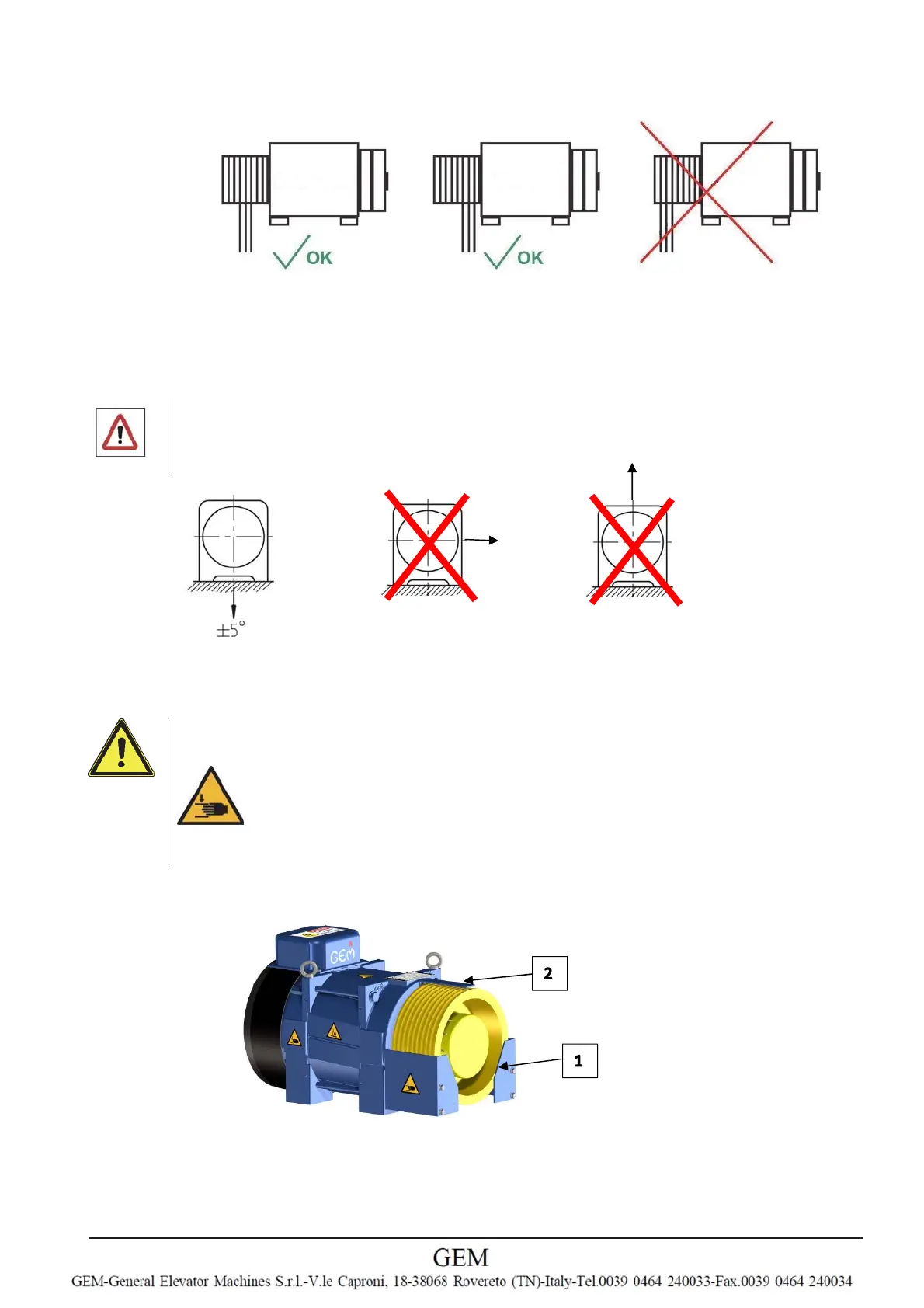

Fitting the ropes
Fitting the ropes
If the traction sheave should offer more grooves than the actual number of ropes, the ropes must
be
applied on the sheave either centred or towards the motor side.
4.4
Rope pull
The rope pull must only be in the vertical direction to the motor foot.
The rope force direction resulting from rope pull must be observed.
Resulting rope force No lateral ropes force No upward ropes force
4.5
Fastening rope guard
Warning!
Warning of hand injuries!
Risk of injury from reaching into the rope guard.
Do not carry out any activities during operation.
Only perform maintenance work on the drive when stopped.
Rope guard GEM GLSxx
The elevator machine is on the right and left fitted with rope
protections (1).
A rope retainer (2) is optionally available.
Set the rope protections to a distance of 2 - 3 mm from the ropes.
