Pag.13
4.5.1

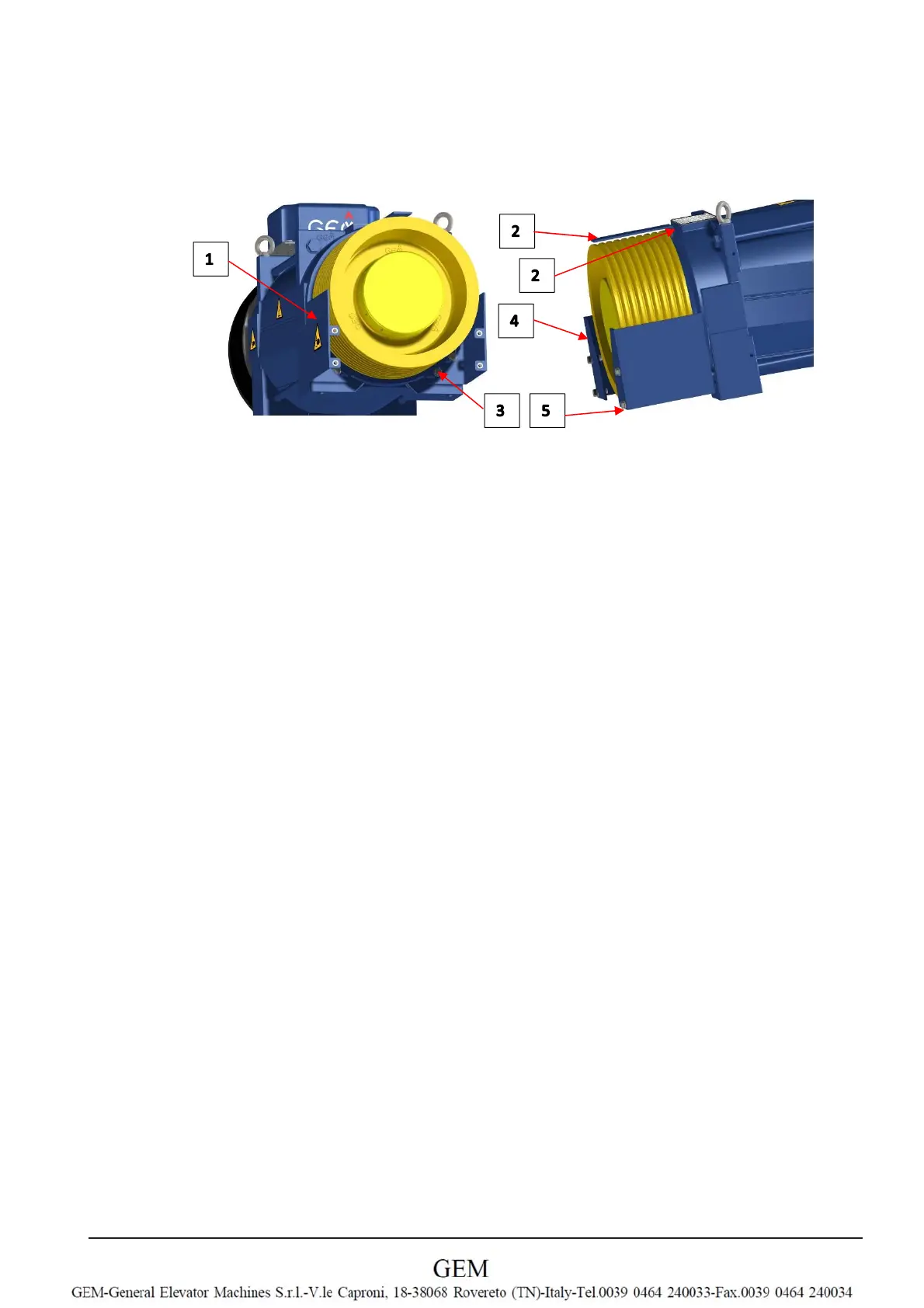

Rope protections attachment on GEM GLSxx
Adjustability on both sides ± 5°. Normal wrap angles 175° - 185°.
Protection base on GLSxx
Frontal protection on GLSxx
The protection base (1) is attached to the machine housing with two auto-locking hexagon head screws
M6 x 14 – cl.8.8 (3) in each side. Those screws remain attached to the housing when removing or
adapting the protection base.
The slotted hole in the protection base (1) enables the required distance to the ropes to be set (easier
using a long tube key Ch10) ,
tightening torque M6 - 8.8: 10 Nm
The frontal protections (4) are attached with two auto-locking hexagon head screws M6 x 14 – cl.8.8
(5) in
each side. Those screws remain attached to the protection base when removing or adapting
the frontal protection.
Tightening torque M6 - 8.8: 10 Nm
The optional rope retainer (2) is attached with two auto-locking hexagon head screws M6 x 14 – cl.8.8 (6).
Those screws remain attached to the housing when removing or adapting the rope retainer.
The elongated slots in the rope retainer (2) enable the required distance to the ropes to be set.
Tightening torque M6 - 8.8: 10 Nm
