1•2 User Guide
○○○○○○○○○○○○○○○○○○○○○○

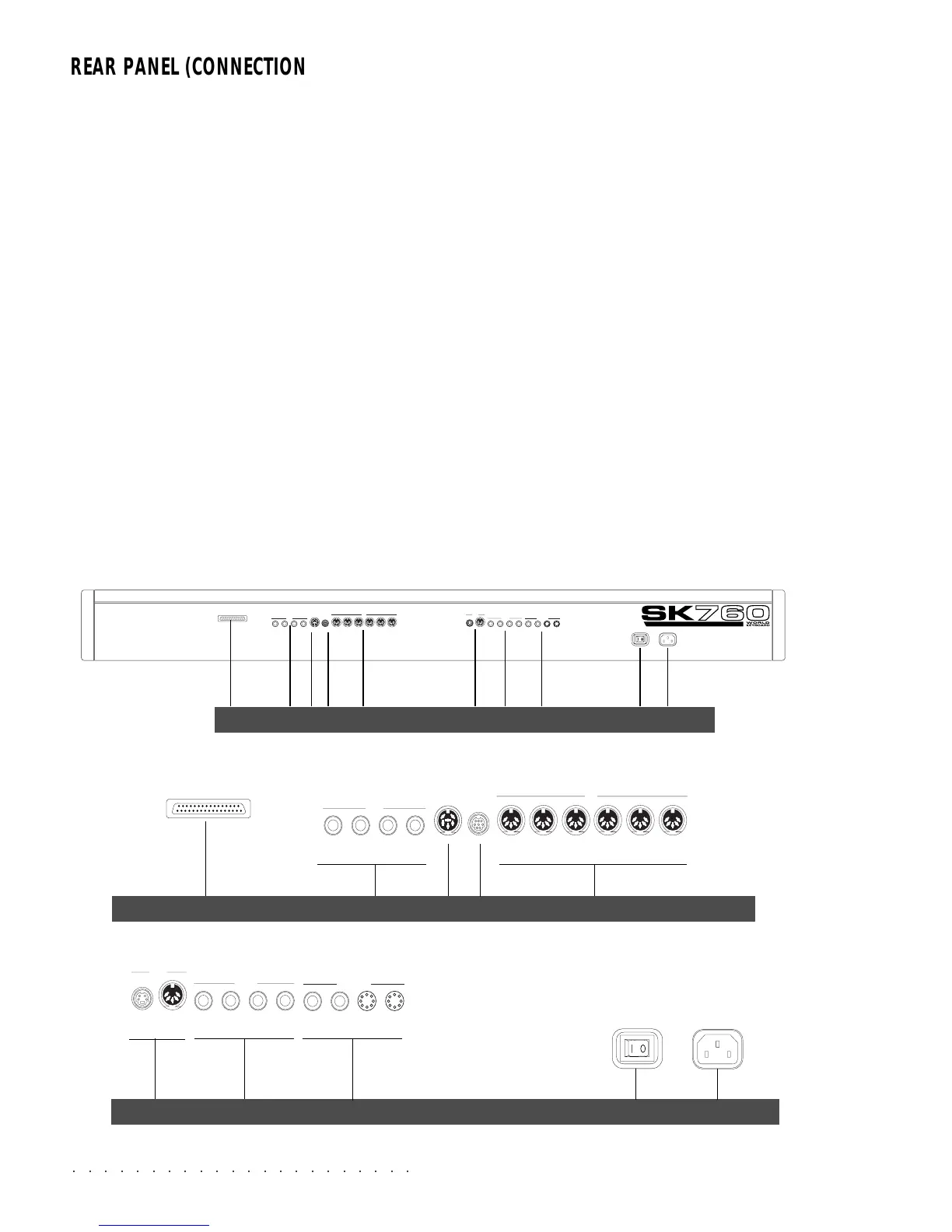

REAR PANEL (CONNECTIONS)
1. SCSI port (optional).
2. Pedals: Damper, 1, 2, Volume.
3. Pedalboard port.
4. Computer port (serial connector for direct
computer conection (Apple Macintosh or IBM
PC and compatibles).
5. MIDI interface: (MIDI IN A/B, MIDI THRU A/
B, MIDI OUT A/B).
6. Video RGB, SVHS: RGB (Video output in
RGB/Composite Video standard), SVHS (Vid-
eo output in SVHS/Composite Video stand-
ard). Both outputs are operational only with
the Audio/Video Interface (optional). Models
not fitted with the A/V Interface leave the fac-
tory with an adhesive applied below these
outputs saying “NO VIDEO INTERFACE IN-
STALLED”.
7. Output: (Left, Right, 1, 2). For Mono repro-
duction, use either the RIGHT or LEFT jack.
The auxiliary outputs emit “dry” sounds (i.e.
with no effects).
8. Mic/Line In: 1, 2, Gain 2/1 (audio inputs for
Microphone or Line signals and twin gain
control for the input signals). The optional A/
V board is required for most external process-
ing applications (optional for WK6 standard
and Power Station models).
9. Power On/Off Switch.
10. Mains socket: Insert the supplied power
cord into this socket.
15467298
DAMPER
21
PEDAL
VOLUME PEDALB. COMPUTER THRU B IN BOUT B IN AOUT ATHRU A
MIDI
SCSI PORT
MIC / LINE IN
212121
RIGHTLEFT
OUTPUT
RGB
S-VHS
VIDEO
1532
67 108
3
4
DAMPER
21
PEDAL
VOLUME PEDALB. COMPUTER THRU B IN BOUT B IN AOUT ATHRU A
MIDI
MIC / LINE IN
212121
RIGHTLEFT
OUTPUT
RGB
S-VHS
VIDEO
SCSI PORT
10
9
