3.7 Weidmueller GPIO Interface
35
 EHSxT_BGS5T_HID_v02 2014-05-23
Confidential / Preliminary
Page 26 of 70

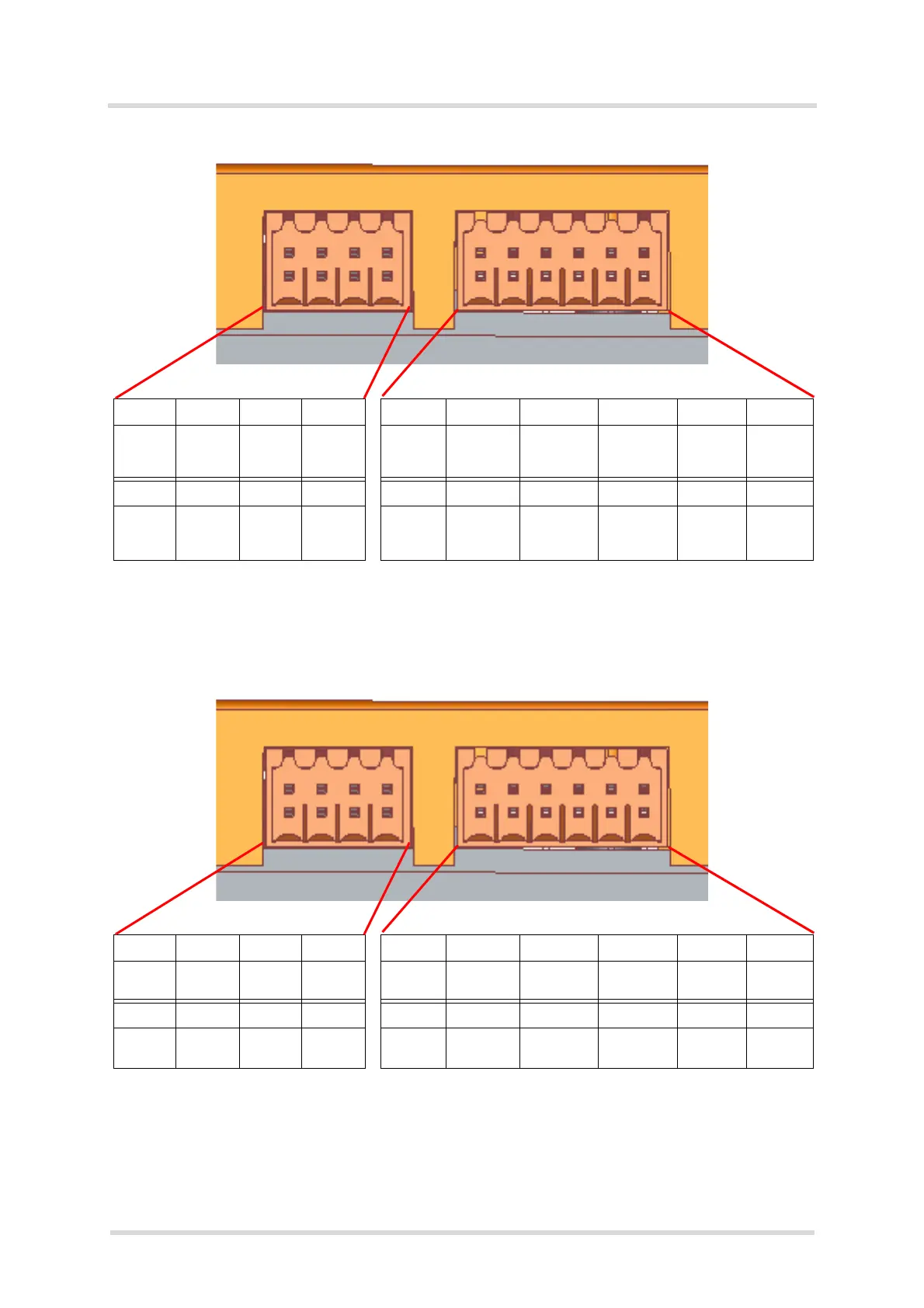

Figure 7: EHS6T USB: Weidmueller connectors (8-pin and 12-pin)
Figure 8: BGS5T USB: Weidmueller connectors (8-pin and 12-pin)
1234 1 2 3 4 5 6
GPIO6 GPIO7 GPIO8 GPIO11 VCCref GND TXD1/
SPI_MISO
RXD1/
SPI_MOSI
CTS1
(RS232)/
SPI_CS
RTS1
(RS232/
5678 7 8 9 10 1112
GPIO12 GPIO13 GPIO14 GPIO15 +5Vout DSR0/
ADC1_IN/
SPI_CLK
I2CDAT I2CCLK GPIO20 GPIO21
EHS6T
USB:
1234 1 2 3 4 5 6
GPIO6 GPIO7 GPIO8 n/a VCCref GND TXD1 RXD1 CTS1
(RS232)/
RTS1
(RS232/
5678 7 8 9 10 1112
n/an/an/an/a +5VoutDSR0/
ADC1_IN
I2CDAT I2CCLK GPIO20 GPIO21
BGS5T
n/a: not applicable
USB:
