6 Full Type Approval
6.1 Gemalto M2M Reference Setup
The Gemalto M2M reference setup submitted to type approve Java Terminals consists of the
following components:
• Java Terminals with approved Java module
•PC as MMI
• Power Supply

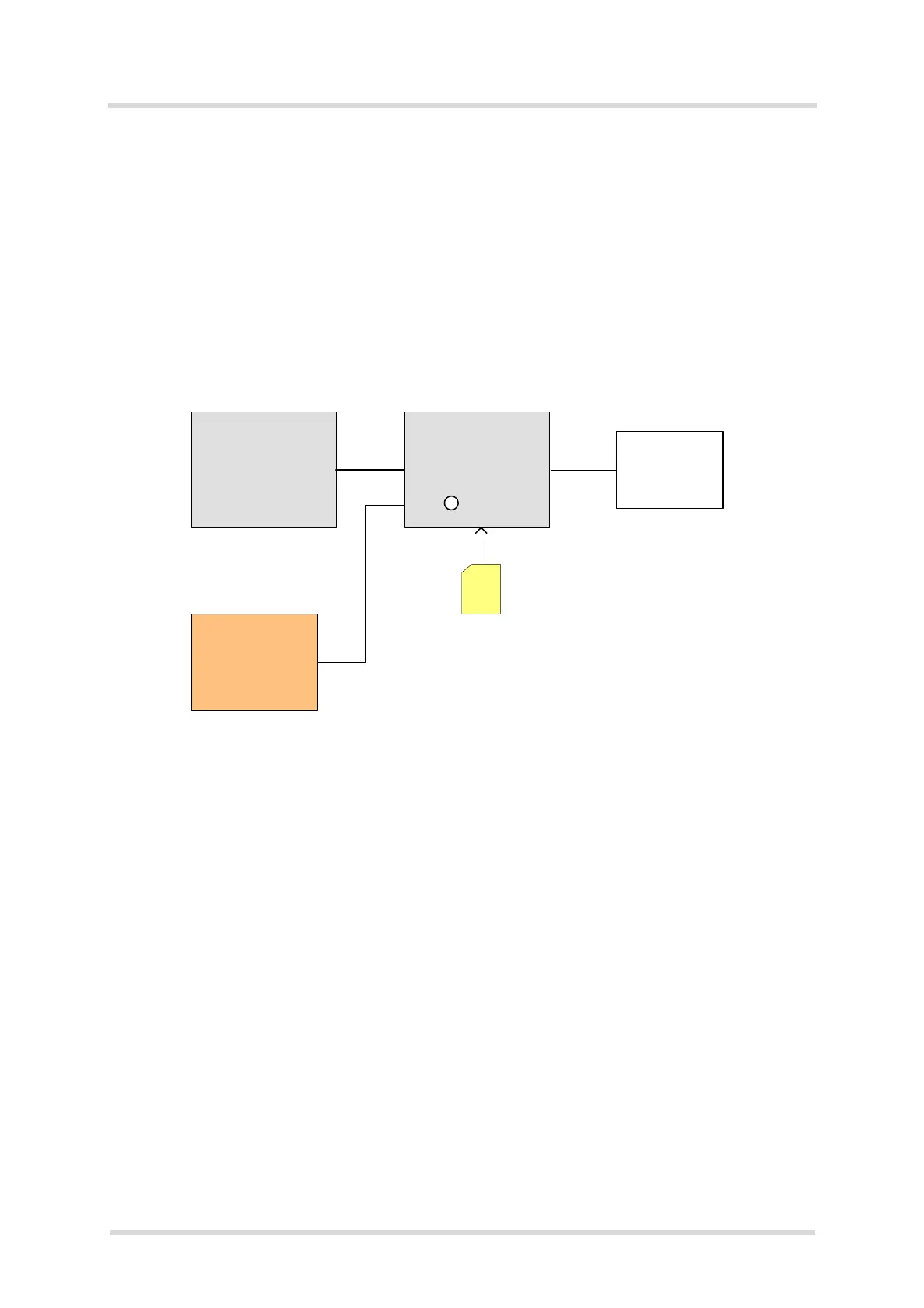

Figure 16: Reference equipment for approval
For ordering information please refer to Chapter 7.
PC
Power supply
SIM
RS-232/
USB
Java
Terminal
Antenna
or
50Ohm cable
to the
system simulator
ARP
