上海鲍麦克斯电子科技有限公司 AS系列数控交流伺服系统说明书
2
① Light; ② Pedal socket .
1.3 Wiring and Gounding
We must prepare the system grounding project;a qualified electrical engineer is
requested for the construction. Product is energized and ready for use; you must
ensure that the power outlet the AC input is securely grounded. The grounding wire is
yellow and green lines, it must be connected to the grid and reliable security
protection on the ground to ensure safe use, and prevent abnormal situation.
：All the power line, signal line, ground wire connection not by other objects or excessive
pressure to distort, in order to ensure the safe use!
1
2

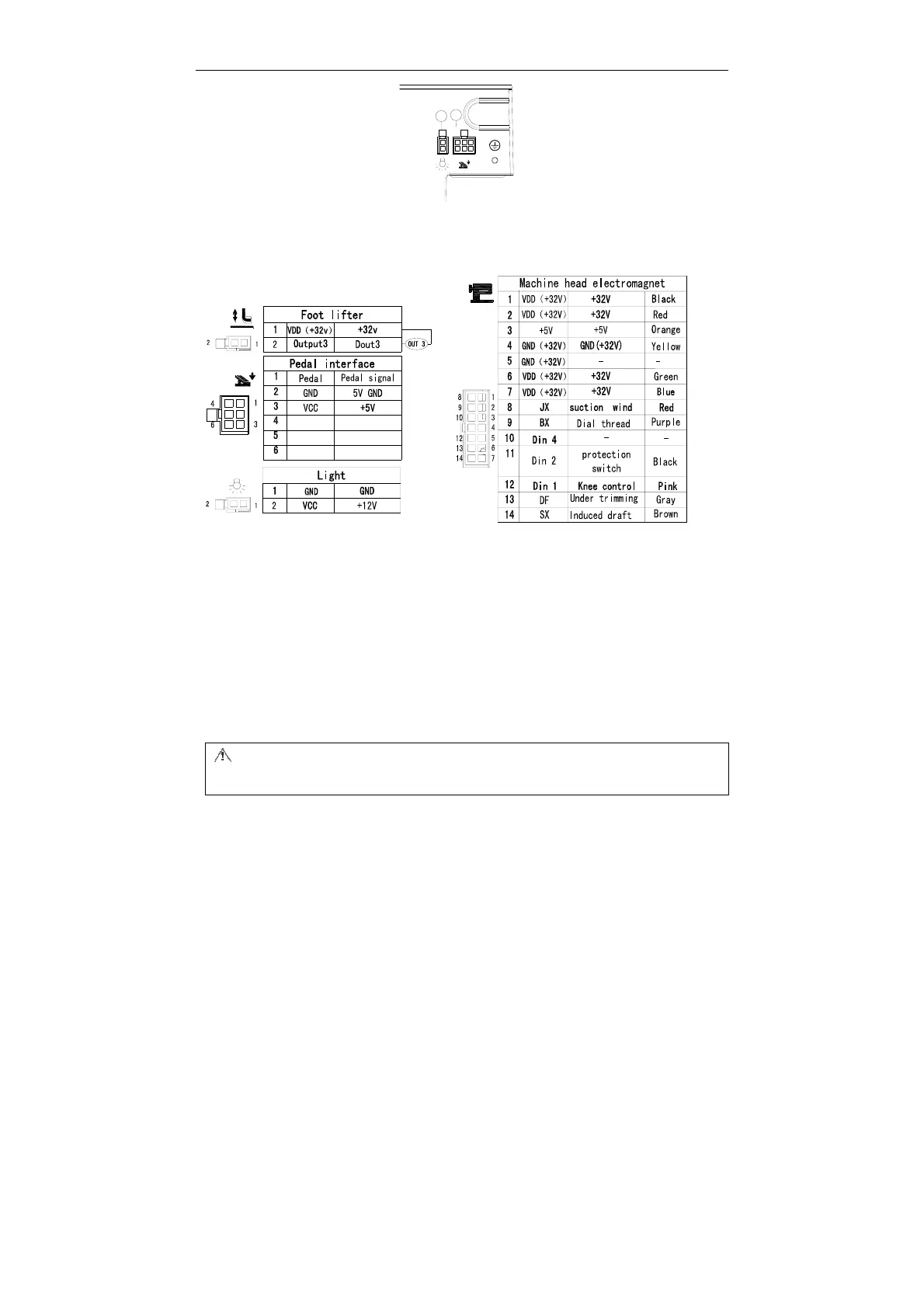

Fig.1-1 Controller Socket Diagram
