Gemsy 500 - 2 Operation Panel Instruction; 2.1 Operation Panel Display Instruction

上海鲍麦克斯电子科技有限公司 AS系列数控交流伺服系统说明书
3
STOP
ABCD
2 Operation Panel Instruction
2.1 Operation panel display instruction

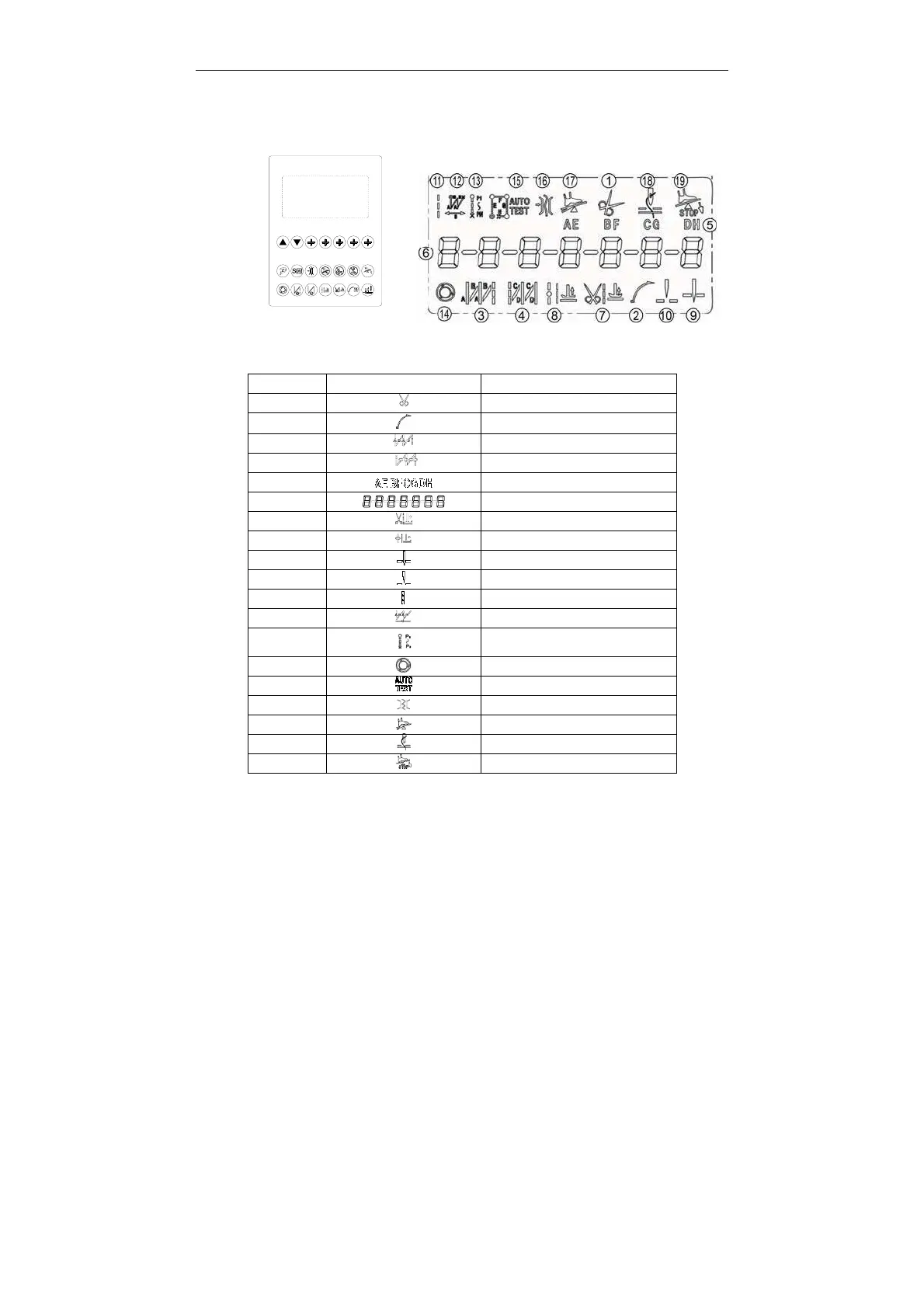

Fig.2-1 Operation Panel Fig.2-2 LCD Display
Table 2-1LCD Icon Display Description
Index
Icon Description
○
1
Automatic Trimming
○
2
Soft start
③
Start back tacking
④
End back tacking
⑤
Sewing segments index
⑥
Number Display
⑦
Presser Foot Lifting after trimming
⑧
Presser Foot Lifting at Seam End
⑨
Position Down
⑩
Position up
○
11
Free Sewing
○
12
W Sewing
○
13
Multi-section Constant-Stitch
Sewing
○
14
One-shot Sewing
○
15
Automatic Test
○
16
Thread clamp
○
17
Back half pedal function
○
18
Thread sweeping function
○
19
Start sewing
