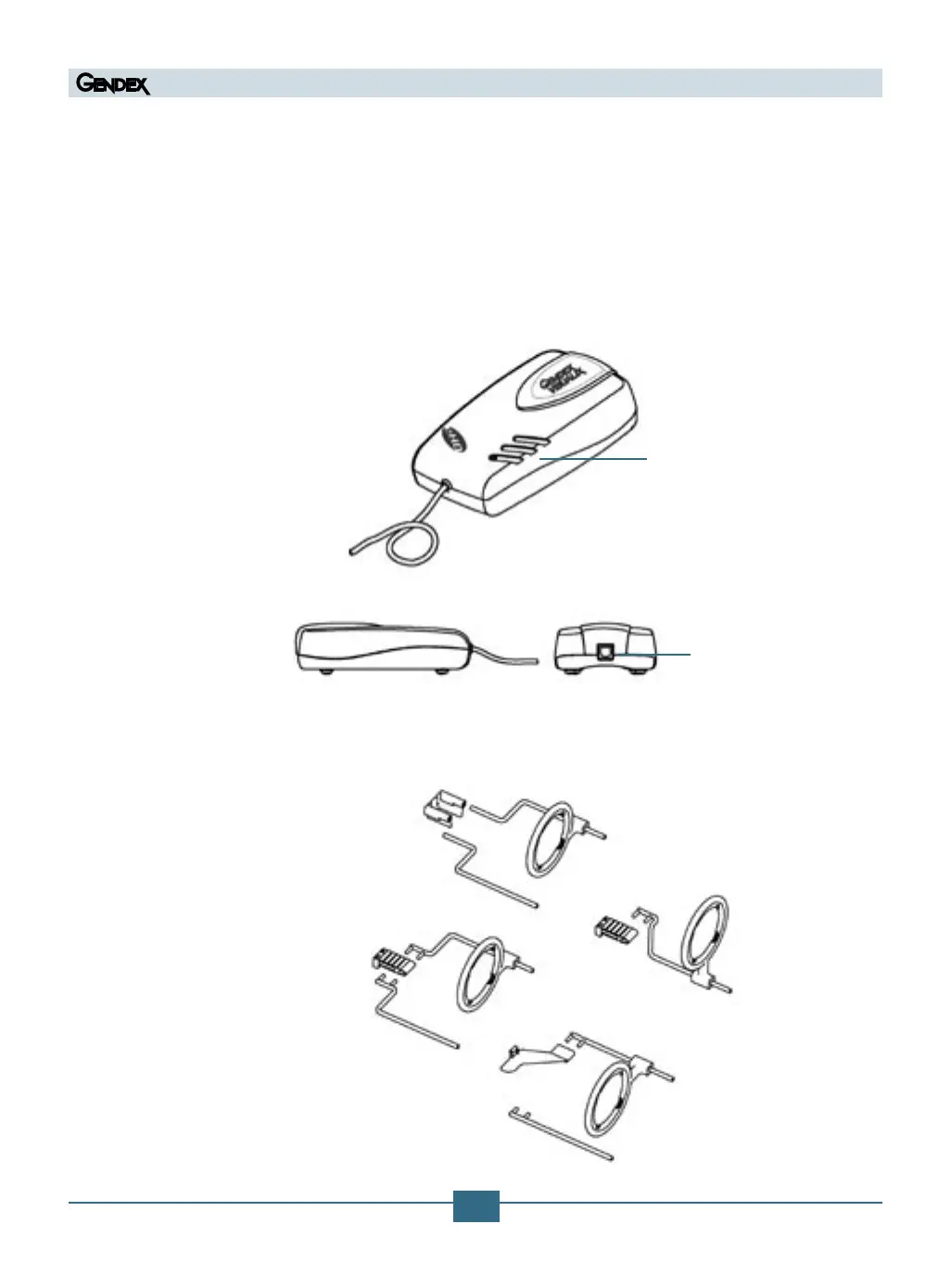

2) Intermediate Electronics unit (IME)
providing:
• power for the sensor
• timing and synchronisation of sensor signals
• signal pre-amplication
• analogue/digital signal conversion
• USB port interface
Indicator status (led)
Sensor cable
USB Port
3) RINN intra-oral positioning device
Specically designed to support the sensor and align it with the X-ray beam and with
the teeth of the upper and lower jaws.
