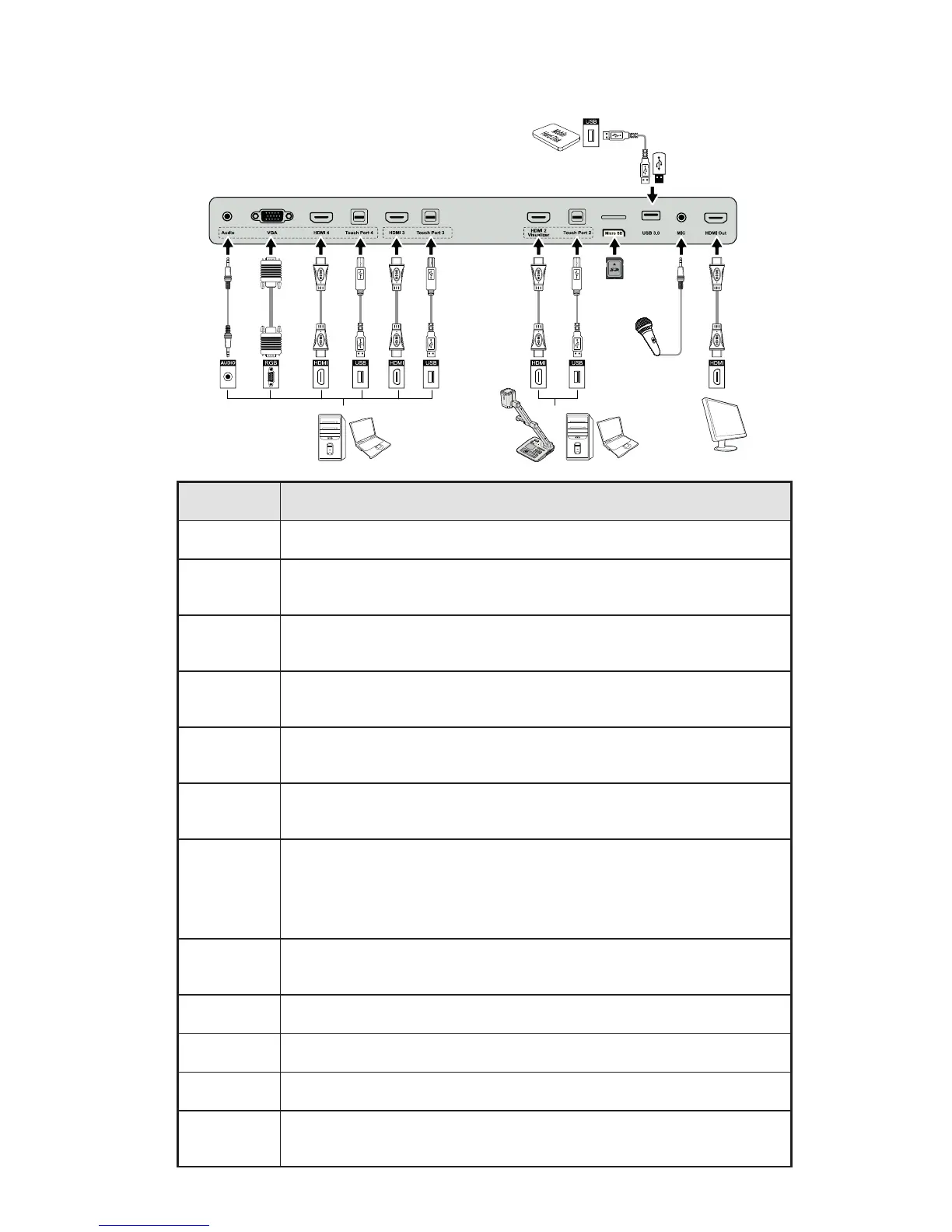

Connection Panel 2
Name Function Description
Audio Audio input port.
VGA
The VGA port for an external PC, which is used with the Touch Port 4 to
operate PC in the way of touch control.
HDMI 4
The input terminal 4 for high definition signal, which is used with the
Touch Port 4 to operate PC in the way of touch control.
Touch
Port 4
The terminal 4 for touch control signal.
HDMI 3
The input terminal 3 for high definition signal, which is used with the
Touch Port 3 to operate PC in the way of touch control.
Touch
Port 3
The terminal 3 for touch control signal.
HDMI 2
Visualiser
The input terminal 2 for high definition signal, which is used with the
Touch Port 2 to operate PC or Visualiser in the way of touch control.
Note: Connect a visualiser for touch display control function and HD display
mode; please use the HDMI 2 Visualiser port.
Touch
Port 2
The USB terminal 2 for touch control signal.
Micro SD The external port for the micro SD card.
USB 3.0 The port for USB 3.0.
MIC The external microphone port.
HDMI Out
The output terminal for high definition signal, which can transmit the
signal to other display equipment with high definition.
