DISASSEMBLY
PART 6
Page 151

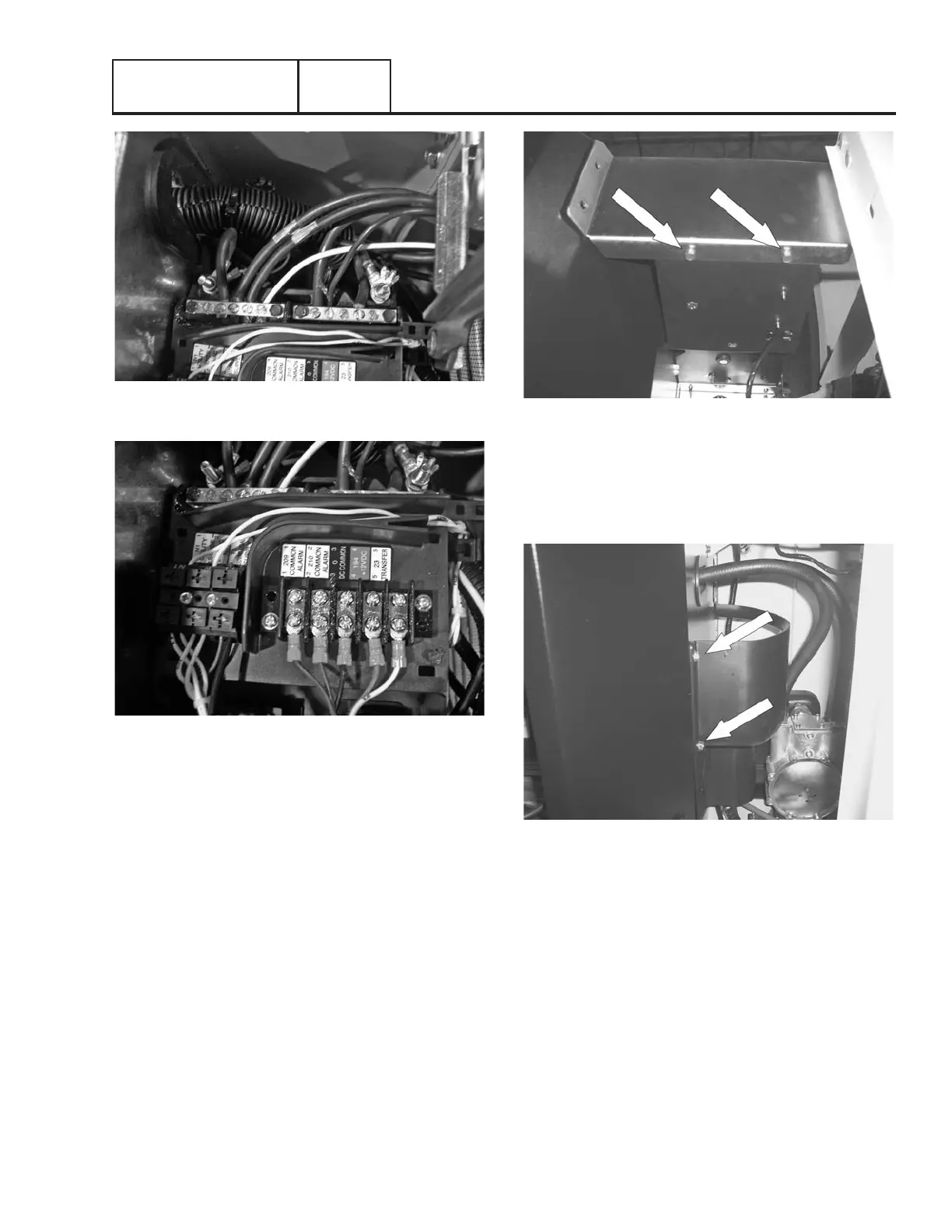

Figure 167.
Figure 168.
6. Remove controller mounting box: Using an 8mm socket
remove the two screws from the rear of the controller
mounting box. Using a 10mm socket remove the two
bolts from under the front of the controller mounting box.
See Figure 169.
Figure 169.
7. Remove engine intake baffle: Using a 10mm socket
remove the two bolts from the engine intake baffle. Pull
baffle toward you carefully, there are tabs holding the
backside of the baffle to the divider panel. See Figure 170.
Figure 170.
8. Loosen side panel: Using a 10mm socket remove the
two bolts from the base of the enclosure side panel. See
Figure 171.
9. Unbolt enclosure side panel mounting bracket: Using a
10mm socket remove the two bolts from the enclosure
side panel mounting bracket. See Figure 172.
