PART 6
DISASSEMBLY
Page 152
Section 6.1
Major Disassembly

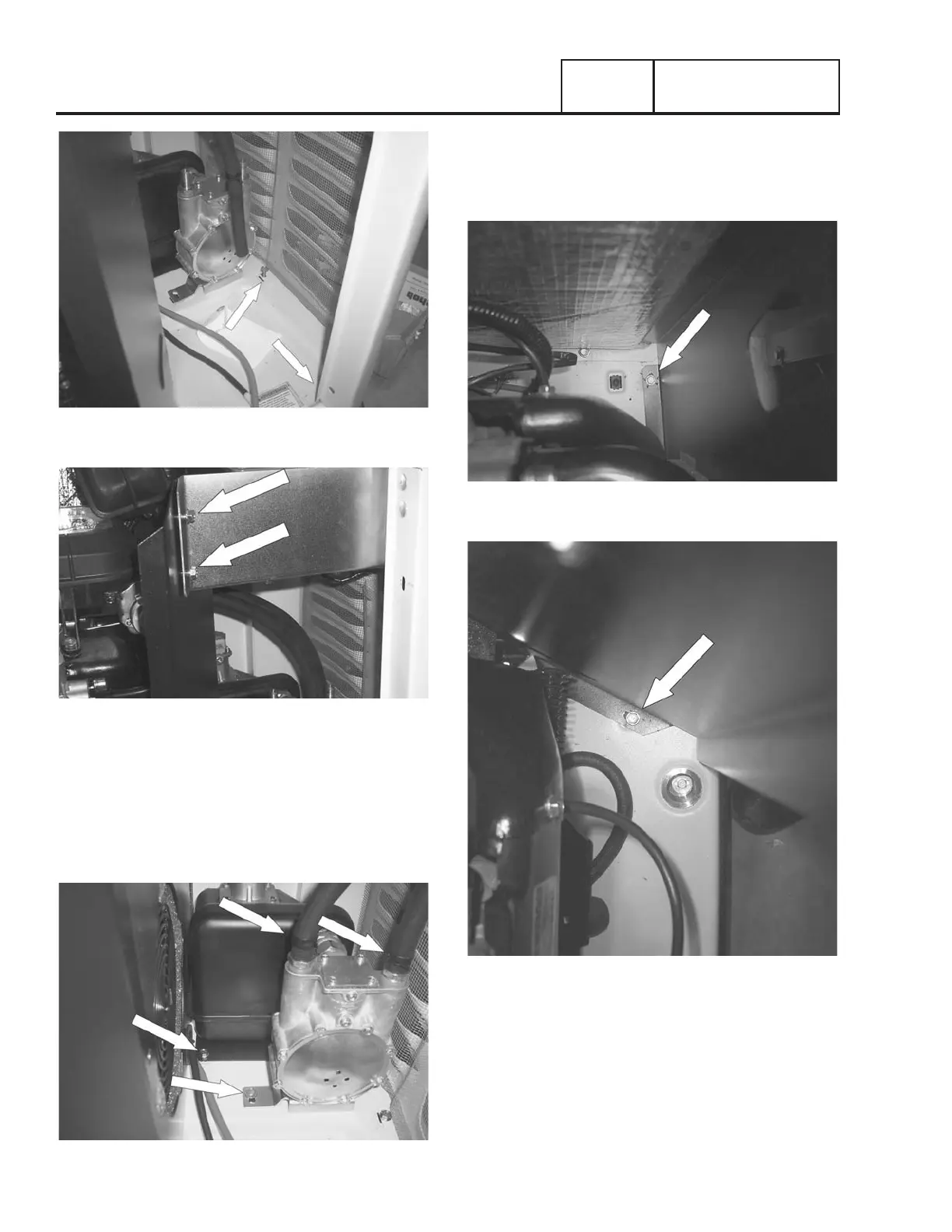

Figure 171.
Figure 172.
10. Remove fuel regulator: Remove the two fuel hoses at
the top of the regulator. Using a 10mm socket remove
one 10mm bolt from the base of the plenum and one
10mm bolt from the base of the fuel regulator. Flex the
enclosure side out to allow for room to remove the
regulator assembly. See Figure 173.
Figure 173.
11. Remove engine divider panel: Using a 10mm socket
remove the rear 10mm bolt from the base of the
enclosure. See Figure 174. Remove the front 10mm
bolt from the base of the enclosure. See Figure 175.
Figure 174.
Figure 175.
12. Remove Air Box: Using a 6mm allen wrench remove the
four intake manifold socket head cap screws. See Figure
176. Using a 4mm allen wrench, remove the four airbox
allen head shoulder bolts. While removing the airbox
remove the four rubber washers. See Figure 177.
