Installation Planning
10 Installation Guidelines for Protector Diesel Generators
Receiving
Receiving and Unpacking
Handle shipping cartons and crates with care to avoid
damage. Store and unpack cartons with the correct side
up, as noted by label on shipping carton.
Inspection
Carefully inspect generator and all contents of cartons for
any damage that may have occurred during shipment.
See shipping documentation for any provisions or guid-
ance when damage is incurred. Correct all damage or
deficiencies before installing generator.
Storage Before Installation
Long Term Storage
If unit will be stored (or installed and not started) for six
months or more, store unit in accordance with the manu-
facturer’s instructions. Contact an IASD to obtain the
Long Term Preservation and Storage Manual (Part No.
0G4018) and the Preservation Checklist (Part No.
0G4018A).
Short Term Storage
If unit will be stored (or installed and not started) for less
than six months, proceed as follows:
• All units are provided with an enclosure.
• Place unit on a smooth flat surface. Do not leave unit
on shipping pallet, as it leaves the bottom open for
entry of dirt, debris, insects, rodents, etc.
• Leave exhaust system openings covered.
• Leave plastic plugs in fuel connection points.
• Use anti-rodent plugs and other enclosure features
to prevent entry of birds, small animals, and foreign
objects.
Lifting
Generators weighing more than 900 lbs (408 kg) require
correct tools, equipment, and qualified personnel to be
used in all phases of handling and unpacking.
To ensure personal safety and prevent damage to unit,
use only correctly sized equipment intended for safe rig-
ging, lifting, and moving of heavy machinery. See Lifting
Hazards.
Use a spreader bar to prevent damage to unit. Failure to
use a spreader bar will result in scratches and dam-
age to painted surfaces.
See Figure 2-2. Installation drawings show lifting points
for rigging and lifting purposes. Always attach lifting and
rigging devices at designated points only. Do not use lift-
ing points of the engine or alternator to move generator.

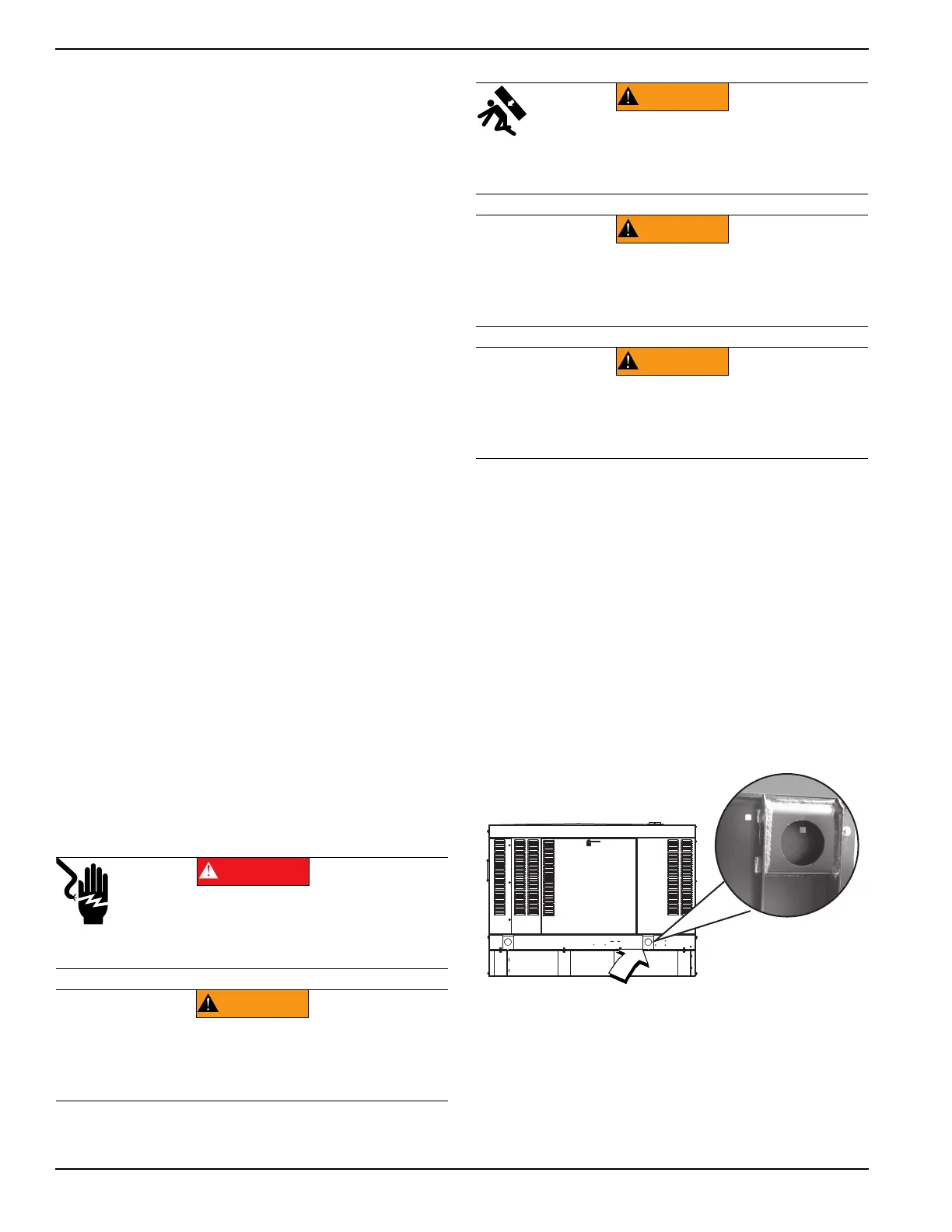

Figure 2-2. Lifting Points (Four Places)
DANGER
(000245)
Risk of electrocution. Avoid touching overhead
power lines when lifting or hoisting generator.
Failure to do so will result in death or serious
injury.
WARNING
Personal injury. Excessive weight. Use only
appropriate lifting eyes and lifting equipment to
lift unit. Improper lifting techniques could result in
equipment damage, death or serious injury.
(000224)
WARNING
Personal injury. Failure to properly connect
lifting cables, chains, or straps could result in
death, serious injury, or property damage.
(000346)
WARNING
Personal Injury. Do not use lifting hook if there are
signs of damage or corrosion. Doing so could result
in death, serious injury, or property damage.
(000349)
WARNING
Personal Injury. Do not use lifting eye if there are signs
of damage or corrosion. Doing socould result in death,
serious injury, or property damage.
(000433)
006364
