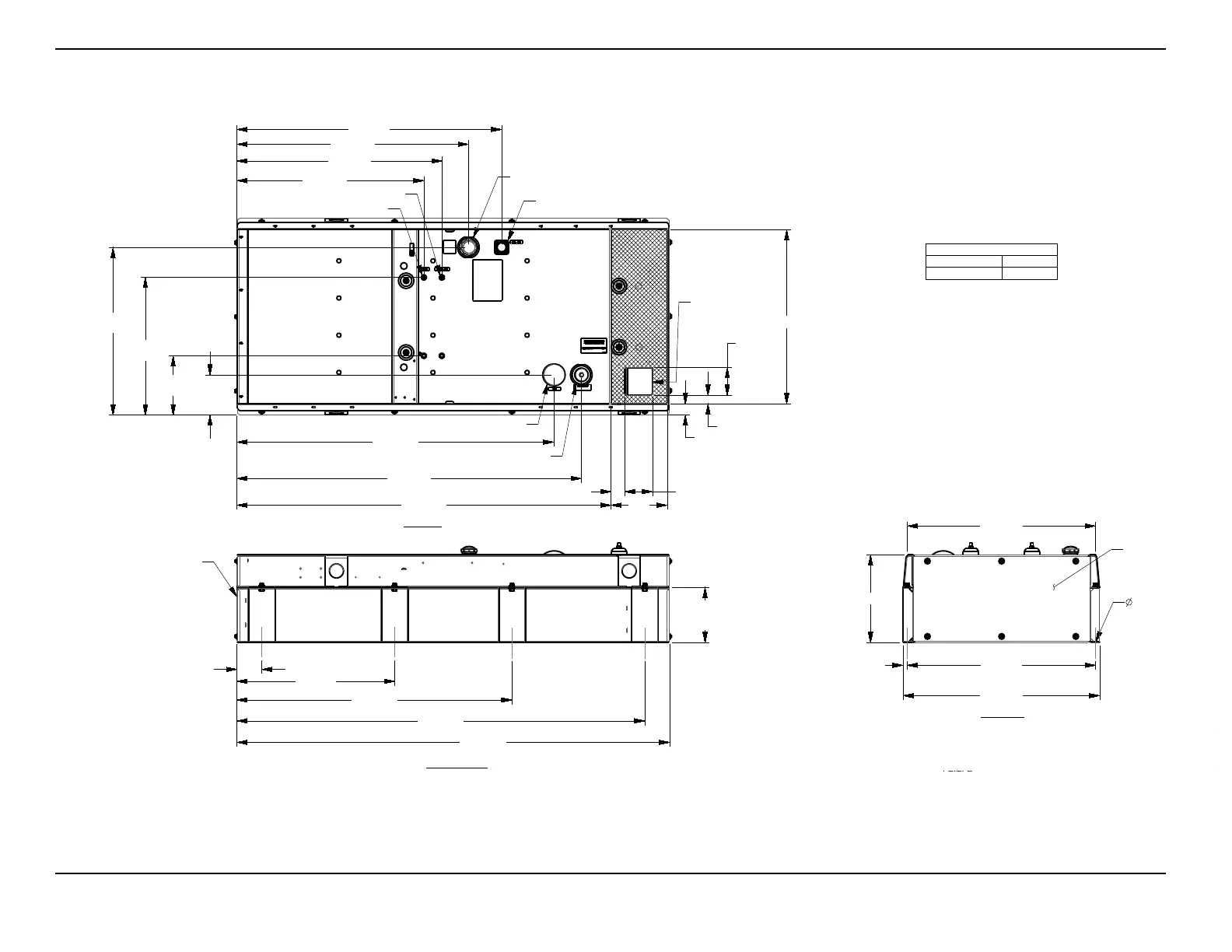

D2.2L G22 Single Wall (10000018294, page 2 of 2)
888 [35.0]
851 [33.5]
MOUNTING CENTERS
TYP
19 [.7]
TYP
397 [15.6]
112 [4.4]
TYP
712 [28.0]
TYP
1242 [48.9]
TYP
1842 [72.5]
TYP
1954 [76.9]
250 [9.9]
FUEL TANK
HEIGHT
844 [33.2]
TYP
926 [36.5]
TYP
1045 [41.2]
1196 [47.1]
1430 [56.3]
1690 [66.5]
1555 [61.2]
181 [7.1]
TYP
621 [24.5]
TYP
757 [29.8]
TYP
267 [10.5]
TYP
125 [4.9]
STUB-UP
AREA
125 [4.9]
STUB-UP
AREA
253
[10.0]
51
[2.0]
38
[1.5]
786 [30.9]
850 [33.5]
62 [2.5]
TITLE
FUEL TANK
TOTAL CAPACITY 253.6 [67]
USABLE CAPACITY 230.9 [61]
CAPACITY: LITER [GALLONS]
DIMENSIONS: MM [INCH]
*NOTE: STUB-UP AREA FOR HIGH
AND LOW VOLTAGE CONNECTIONS,
CIRCUIT BREAKER, NEUTRAL AND
CUSTOMER CONNECTION OPENING.
REAR VIEW
16.7 [0.66]
MOUNTING HOLES
(8 PLACES) SEE
NOTE 9
REMOVABLE
STUB-UP COVER
SEE NOTE 4
LEFT SIDE VIEW
REMOVABLE COVER
TOP VIEW
HIGH AND LOW
VOLTAGE STUB-UP
AREA
EMERGENCY VENT
(2" NPT FEMALE)
NORMAL VENT
(2" NPT FEMALE)
FUEL LEVEL
GAUGE/SENDER
FUEL FILL
(2" NPT FEMALE)
FUEL SUPPLY
FUEL RETURN
