Installation Drawings
46 Installation Guidelines for Protector Diesel Generators

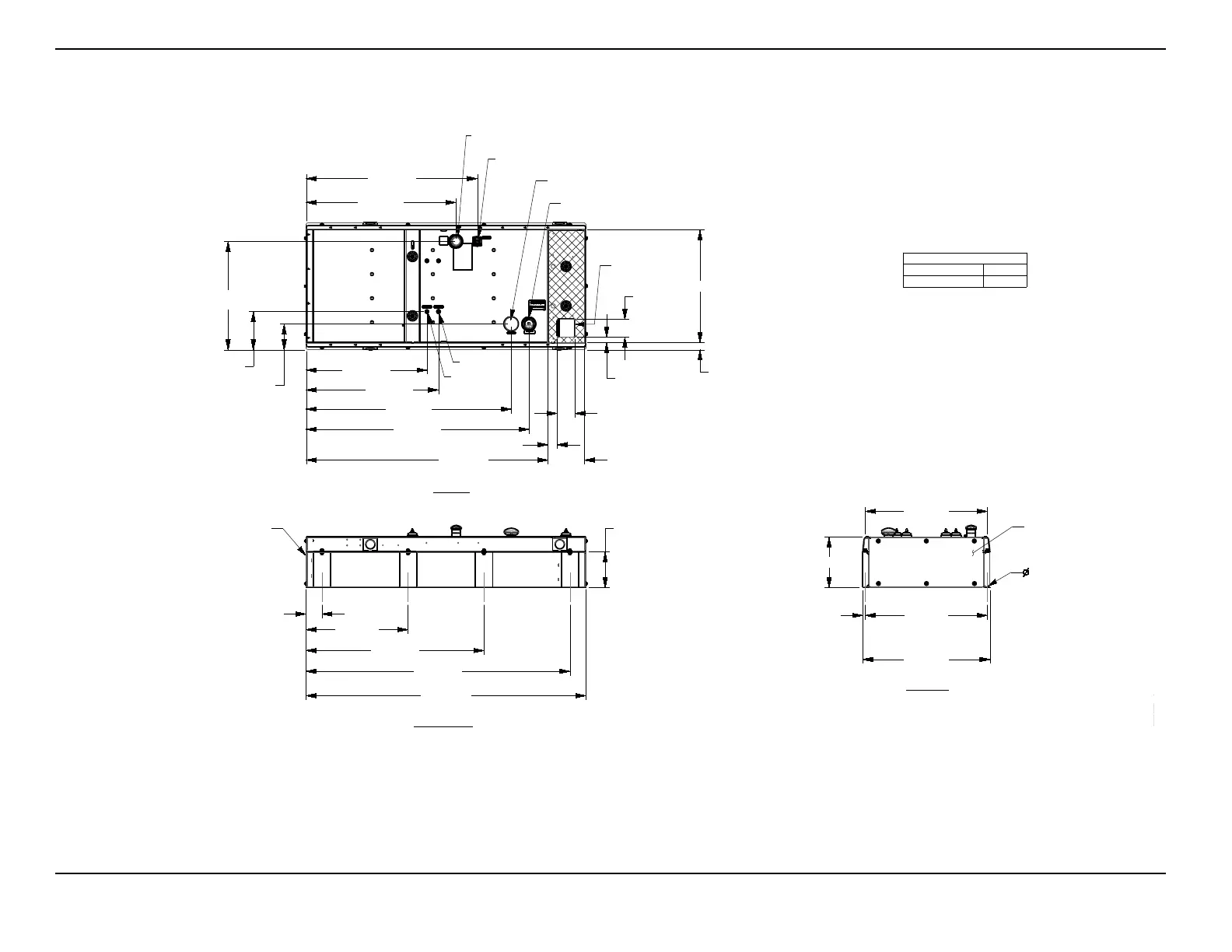

D3.4L G16 Single Wall (10000042752, page 2 of 2)
888.1 [35.0]
851.1 [33.5]
MOUNTING CENTERS
TYP
SEE NOTE 9
352.9 [13.9]
111.9 [4.4]
TYP
711.9 [28.0]
TYP
1241.9 [48.9]
TYP
1841.9 [72.5]
TYP
1953.8 [76.9]
267.1 [10.5 ]
TYP
181.1 [7.1]
TYP
757.1 [29.8]
TYP
842.3 [33.2]
923.2 [36.3]
1043.6 [41.1]
1194.2 [47.0]
1431.1[56.3]
1553.5 [61.2]
786 [30.9]
51.1 [2.0]
125 [4.9]
*STUB-UP
AREA
38 [1.5]
125 [4.9]
*STUB-UP
AREA
253.3 [10.0]
62.4 [2.5]
1687.6 [66.4]
18.5 [.7]
TYP
250.2 [9.9]
FUEL TANK
HEIGHT
850.1 [33.5]
FUEL TANK
TOTAL CAPACITY 253.6 [67]
USABLE CAPACITY 230.9 [61]
*NOTE: STUB-UP AREA FOR HIGH AND LOW
VOLTAGE CONNECTIONS, CIRCUIT BREAKER,
NEUTRAL AND CUSTOMER CONNECTION OPENING.
CAPACITY: LITER [GALLONS]
DIMENSIONS: MM [INCH]
16.7 [.66] MOUNTING HOLES
(8 PLACES)
SEE NOTE 9
REMOVABLE
STUB-UP COVER
SEE NOTE 4
REAR VIEW
REMOVABLE COVER
LEFT SIDE VIEW
FUEL RETURN
FUEL SUPPLY
FUEL FILL
(2" NPT FEMALE)
FUEL LEVEL
GAUGE/SENDER
NORMAL VENT
(2" NPT FEMALE)
EMERGENCY VENT
(2" NPT FEMALE)
HIGH AND LOW
VOLTAGE STUB-UP
TOP VIEW
