Generac Power Systems D3.4L G16 Extended Tank User Manual

Installation Drawings
36 Installation Guidelines for Protector Diesel Generators

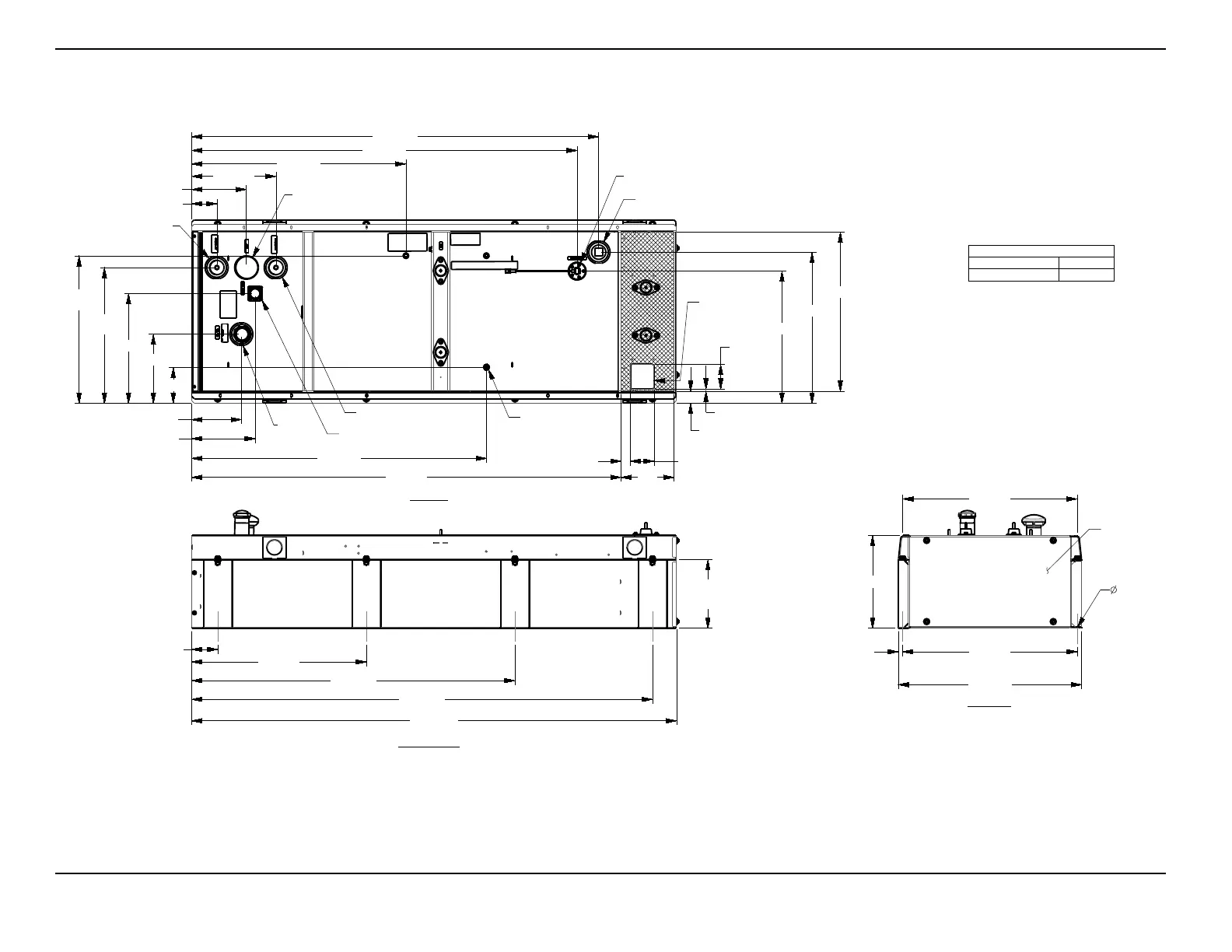

D2.5L G2 Extended Tank (10000018189, page 2 of 2)
738 [29.1]
674 [26.5]
105 [4.1]
STUB-UP
AREA
9
[.4]
51
[2.0]
1817 [71.5]
100 [3.9]
STUB-UP
AREA
1248 [49.1]
TYP
224
[8.8]
40 [1.6]
559 [22.0]
639 [25.2]
1722 [67.8]
1631 [64.2]
906 [35.7]
357 [14.0]
231 [9.1]
107 [4.2]
210 [8.3]
269 [10.6]
292 [11.5]
464 [18.3]
574 [22.6]
TYP
624 [24.6]
TYP
152 [6.0]
110 [4.3]
TYP
739 [29.1]
TYP
1368 [53.9]
TYP
1950 [76.8]
TYP
2052 [80.8]
290 [11.4]
FUEL TANK
HEIGHT
393 [15.5]
19 [.7]
TYP
739 [29.1]
MTG CENTERS
TYP
776 [30.6]
FUEL TANK
TOTAL CAPACITY 127 [33.5]
USABLE CAPACITY 121 [32]
CAPACITY: LITER [GALLON]
DIMENSIONS: MM [INCH]
NOTE: STUB-UP AREA FOR HIGH
AND LOW VOLTAGE CONNECTIONS,
CIRCUIT BREAKER, NEUTRAL AND
CUSTOMER CONNECTION OPENING.
TANK IS LISTED TO UL142 AND ULC5601
LEFT SIDE VIEW
HIGH AND LOW
VOLTAGE
STUB-UP AREA
TOP VIEW
INNER TANK NORMAL VENT
(2" NPT FEMALE)
INNER TANK EMERGENCY VENT
(2" NPT FEMALE)
FUEL LEVEL
GAUGE/SENDER
FUEL FILL
(2" NPT
FEMALE)
CUSTOMER OPTION
(2" NPT FEMALE)
OUTER TANK
LEAK DETECTOR
OUTER TANK
EMERGENCY VENT
(2" NPT FEMALE)
FUEL SUPPLY
16.66 [0.66]
MTG HOLES
(8 PLACES)
SEE NOTE 8
REMOVABLE
STUB-UP COVER
SEE NOTE 4
REAR VIEW
