Installation Drawings
44 Installation Guidelines for Protector Diesel Generators

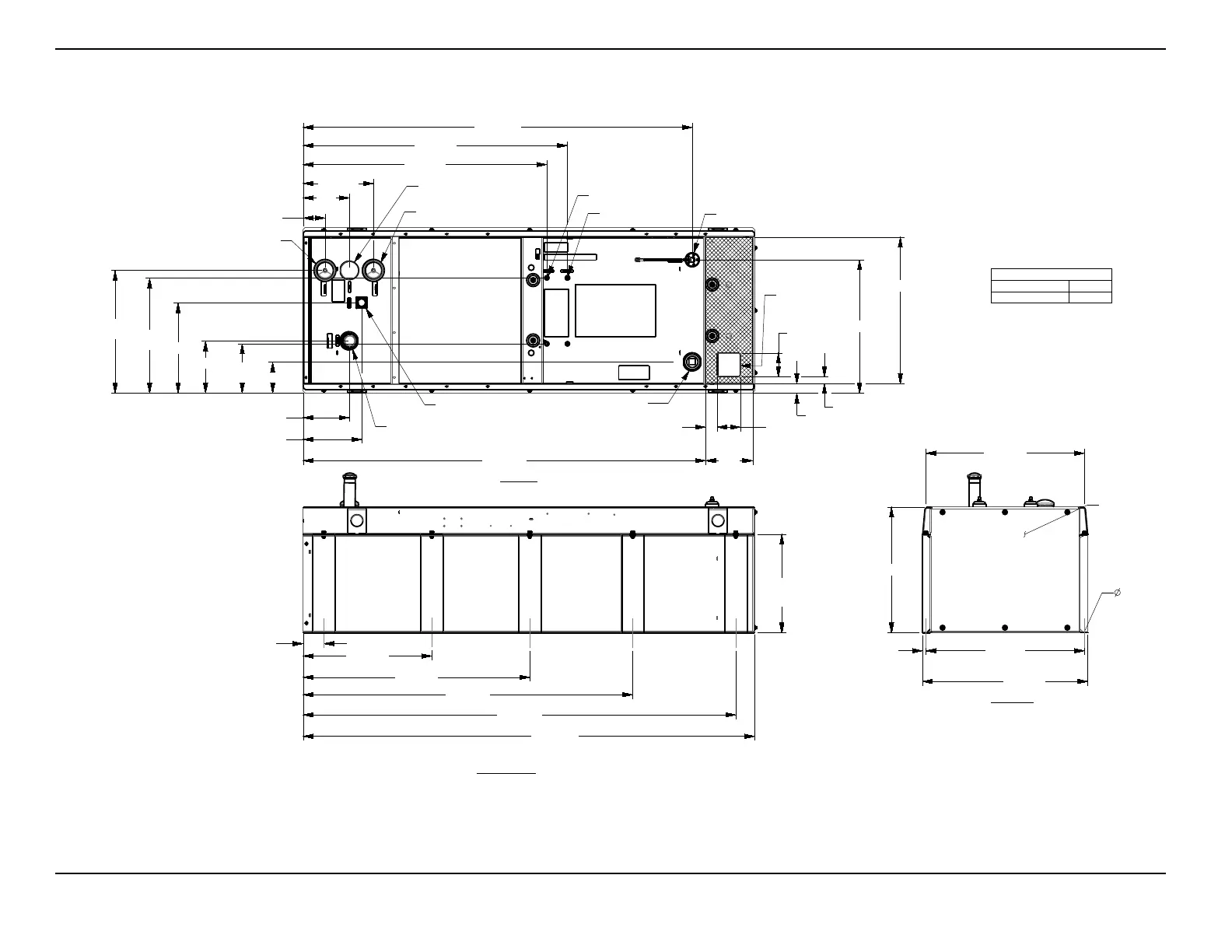

D2.2L G22–132 Gal Tank (10000029492, page 2 of 2)
888 [35.0]
851 [33.5]
MOUNTING CENTERS
TYP
19 [.7]
TYP
676 [26.6]
529 [20.8]
FUEL TANK
HEIGHT
110 [4.3]
TYP
690 [27.2]
TYP
1216 [47.9]
TYP
1769 [69.6]
TYP
2322 [91.4]
TYP
2424 [95.4]
715 [28.1]
2089 [82.2]
TYP
377 [14.8]
247
[9.7]
117 [4.6]
280 [11.0]
264 [10.4]
TYP
485 [19.1]
618 [24.3]
TYP
658 [25.9]
TYP
167 [6.6]
247 [9.7]
314 [12.4]
1307 [51.5]
TYP
1418 [55.8]
TYP
125 [4.9]
STUB-UP
AREA
125 [4.9]
STUB-UP
AREA
253
[10.0]
62 [2.5]
38
[1.5]
786 [30.9]
2160 [85.0]
51
[2.0]
850 [33.5]
FUEL TANK
TOTAL CAPACITY 524 [138.5]
USABLE CAPACITY 500 [132]
TITLE
INSTALL PROTECTOR D2.2L G22
132 GAL TANK
D
RAWING CREATED FROM PRO/ENGINEER
3
D FILE. ECO MODIFICATION TO BE
APPLIED TO SOLID MODEL ONLY
NOTE: STUB-UP AREA FOR HIGH
AND LOW VOLTAGE CONNECTIONS,
CIRCUIT BREAKER, NEUTRAL AND
CUSTOMER CONNECTION OPENING.
CAPACITY: LITER [GALLON]
DIMENSIONS: MM [INCH]
16.7 [0.66]
MOUNTING HOLES
(10 PLACES) SEE
NOTE 9
REMOVABLE
STUB-UP COVER
SEE NOTE 4
REAR VIEW
LEFT SIDE VIEW
OUTER TANK EMERGENCY VENT
(2" NPT FEMALE)
INNER TANK NORMAL VENT
(2" NPT FEMALE)
INNER TANK EMERGENCY VENT
(2" NPT FEMALE)
FUEL SUPPLY
OUTER TANK LEAK DETECTOR
HIGH AND
LOW VOLTAGE
STUB-UP AREA
TOP VIEW
FUEL FILL
(2" NPT FEMALE)
FUEL LEVEL
GAUGE/SENDER
CUSTOMER OPTION
(2" NPT FEMALE)
FUEL RETURN
