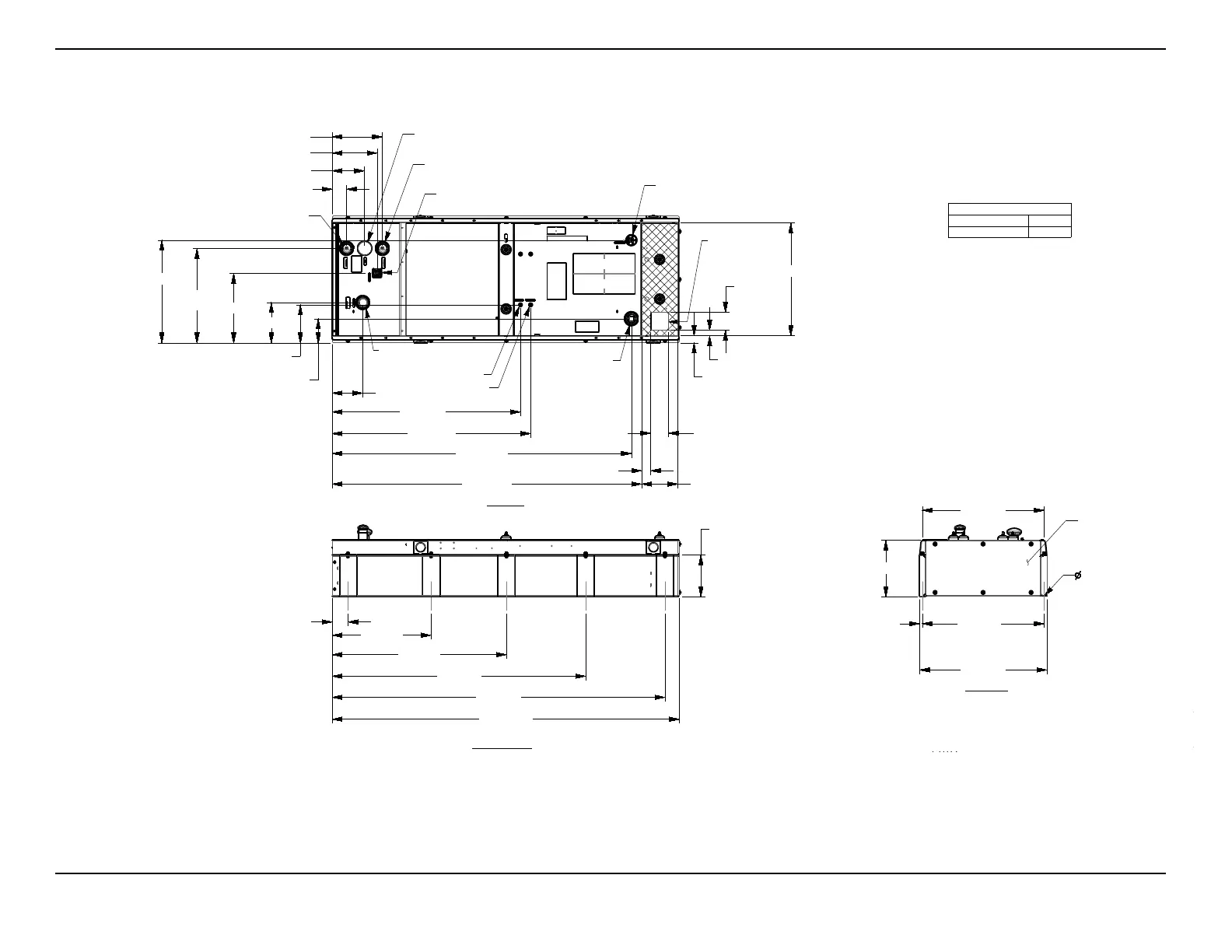

D3.4L G16 Extended Tank (10000042807, page 2 of 2)
18.5 [.7]
TYP
851.1 [33.5]
MOUNTING CENTERS
TYP
SEE NOTE 9
888.1 [35.0]
394 [15.5]
110 [4.3]
TYP
690 [27.2]
TYP
1216 [47.9]
TYP
1769 [69.6]
TYP
2322 [91.4]
TYP
100.5 [4.0]
225.5 [8.9]
313.8 [12.4]
350.5 [13.8]
213.5 [8.4]
282.1 [11.1]
487.1 [19.2]
660.1 [26.0]
TYP
266.1 [10.5 ]
TYP
1314.4 [51.8 ]
1386.1 [54.6]
169.1 [6.7]
717.1 [28.2]
2088.4 [82.2]
TYP
786 [30.9]
125 [4.9]
*STUB-UP
AREA
38 [1.5]
51.1 [2.0]
2159.6 [85.0]
62.4 [2.5]
125 [4.9]
*STUB-UP
AREA
253.3 [10.0]
2423.9 [95.4]
291.3 [11.5]
FUEL TANK
HEIGHT
850.1 [33.5]
FUEL TANK
TOTAL CAPACITY 233 [61]
USABLE CAPACITY 209 [55]
TITLE
CAPACITY: LITER [GALLONS]
DIMENSIONS: MM [INCH]
*NOTE: STUB-UP AREA FOR HIGH AND LOW
VOLTAGE CONNECTIONS, CIRCUIT BREAKER,
NEUTRAL AND CUSTOMER CONNECTION OPENING.
THIS TANK IS LISTED TO UL142 AND ULC5601
16.7 [.66] MOUNTING HOLES
(10 PLACES)
REAR TANK
COVER PANEL
SEE NOTE 4
REAR VIEW
LEFT SIDE VIEW
OUTER TANK EMERGENCY VENT
(2" NPT FEMALE)
FUEL FILL
(2" NPT FEMALE)
FUEL RETURN
FUEL SUPPLY
CUSTOMER OPTION
(2" NPT FEMALE)
OUTER TANK
LEAK DETECTOR
INNER TANK NORMAL VENT
(2" NPT FEMALE)
INNER TANK EMERGENCY VENT
(2" NPT FEMALE)
FUEL LEVEL
GAUGE/SENDER
HIGH AND
LOW VOLTAGE
STUB-UP AREA
TOP VIEW
