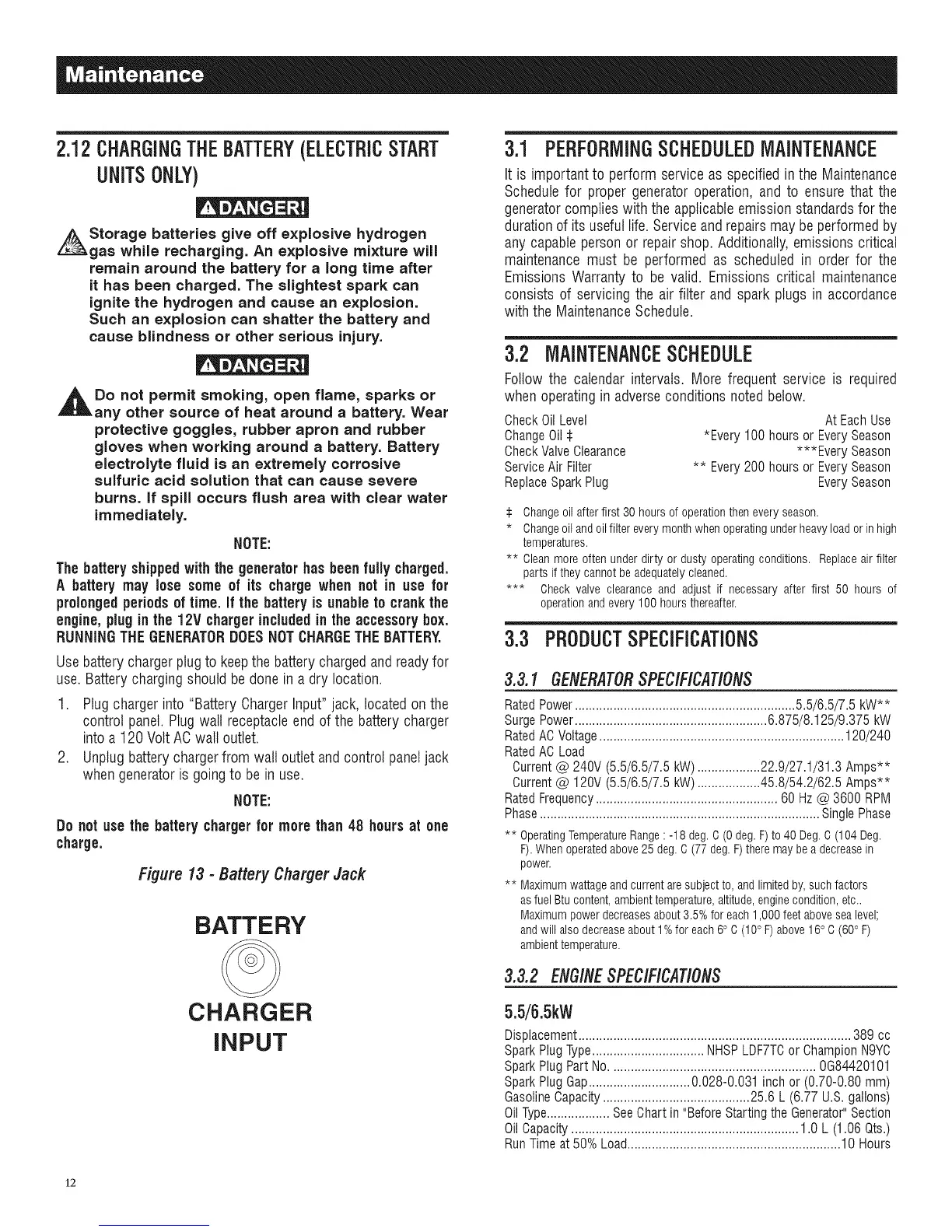

2.12CHARGINGTHEBATTERY(ELECTRICSTART
UNITSONLY)
Storage batteries give off explosive hydrogen
gas while recharging. An explosive mixture will
remain around the battery for a long time after
it has been charged. The slightest spark can
ignite the hydrogen and cause an explosion.
Such an explosion can shatter the battery and
cause blindness or other serious injury.
Do not permit smoking, open flame, sparks or
any other source of heat around a battery. Wear
protective goggles, rubber apron and rubber
gloves when working around a battery. Battery
electrolyte fluid is an extremely corrosive
sulfuric acid solution that can cause severe
burns. If spill occurs flush area with clear water
immediately.
NOTE:
Thebattery shippedwith the generator has been fully charged.
A battery may 10sesome of its chargewhen not in use for
pr0i0ngedperiodsof time. if the battery is unable to crankthe
engine, plugin the 12V chargerincludedin the accessorybox.
RUNNING THE GENERATOR DOES NOT CHARGE THE BATTERY.
Usebatterychargerplugto keepthe battery chargedandreadyfor
use. Batterychargingshouldbe done in a dry location.
1. Plugchargerinto "Battery ChargerInput"jack, locatedon the
control panel.Plug wall receptacleend of the battery charger
into a 120 Volt ACwalt outlet.
2. Unplugbatterychargerfrom walt outletand control paneljack
whengeneratoris goingto be in use.
NOTE:
Do not use the battery chargerfor more than48 hours at one
charge.
Figure13 - Battery Charger Jack
BATTERY
CHARGER
iNPUT
3.1 PERFORMINGSCHEDULEDMAINTENANCE
It is importantto perform serviceas specifiedin the Maintenance
Schedulefor proper generatoroperation,and to ensurethat the
generatorcomplieswith the applicableemissionstandardsfor the
durationof its useful life.Serviceandrepairsmay be performedby
any capablepersonor repairshop. Additionally,emissionscritical
maintenancemust be performed as scheduled in order for the
Emissions Warrantyto be valid. Emissions critical maintenance
consists of servicing the air filter and spark plugs in accordance
with the MaintenanceSchedule.
3.2 MAINTENANCESCHEDULE
Follow the calendar intervals. More frequent service is required
whenoperatingin adverseconditionsnotedbelow.
CheckOilLevel AtEachUse
ChangeOil$ *Every100hoursorEverySeason
CheckValveClearance ***EverySeason
ServiceAirFilter ** Every200hoursorEverySeason
ReplaceSparkPlug EverySeason
:i: Changeoil after first 30 hours of operationthen every season.
* Changeoiland oilfilter everymonth whenoperatingunderheavy load or in high
temperatures.
** Clean more often under dirty or dusty operating conditions. Replaceair filter
parts if they cannot be adequatelycleaned.
*** Check valve clearance and adjust if necessary after first 50 hours of
operationand every 100 hours thereafter.
3.3 PRODUCTSPECIFICATIONS
3.3.1 GENERATORSPECIFICATIONS
RatedPower............................................................... 5.5/6.5/7.5 kW**
Surge Power....................................................... 6.875/8.125/9.375 kW
RatedACVoltage...................................................................... 120/240
RatedAC Load
Current@ 240V (5.5/6.5/7.5 kW)..................22.9/27.1/31.3 Amps**
Current@ 120V (5.5/6.5/7.5 kW)..................45.8/54.2/62.5 Amps**
RatedFrequency.................................................... 60 Hz@ 3600 RPM
Phase................................................................................ SinglePhase
** OperatingTemperatureRange: -18deg.C (0deg.F)to 40Deg.C(104Deg.
F).Whenoperatedabove25deg.C (77deg.F)theremaybea decreasein
power.
** Maximumwattageandcurrentaresubjectto,andlimitedby,suchfactors
asfuelBtucontent,ambienttemperature,altitude,enginecondition,etc..
Maximumpowerdecreasesabout3.5%for each1,000feetabovesealevel;
andwillalsodecreaseabout1%for each6° C (10° F)above16° C(60° F)
ambienttemperature.
3.3.2 ENGINESPECIFICATIONS
5.5/6.5kW
Displacement.............................................................................. 389 cc
SparkPlugType................................ NHSPLDF7TCor ChampionN9YC
SparkPlug PartNo........................................................... 0G84420101
SparkPlug Gap............................. 0.028-0.031 inch or (0.70-0.80 mm)
GasolineCapacity.......................................... 25.6 L (6.77 U.S.gallons)
OilType.................. SeeChart in "Before Starting the Generator"Section
OilCapacity................................................................. 1.0 L (1.06 Qts.)
RunTimeat 50% Load............................................................. 10 Hours
12
