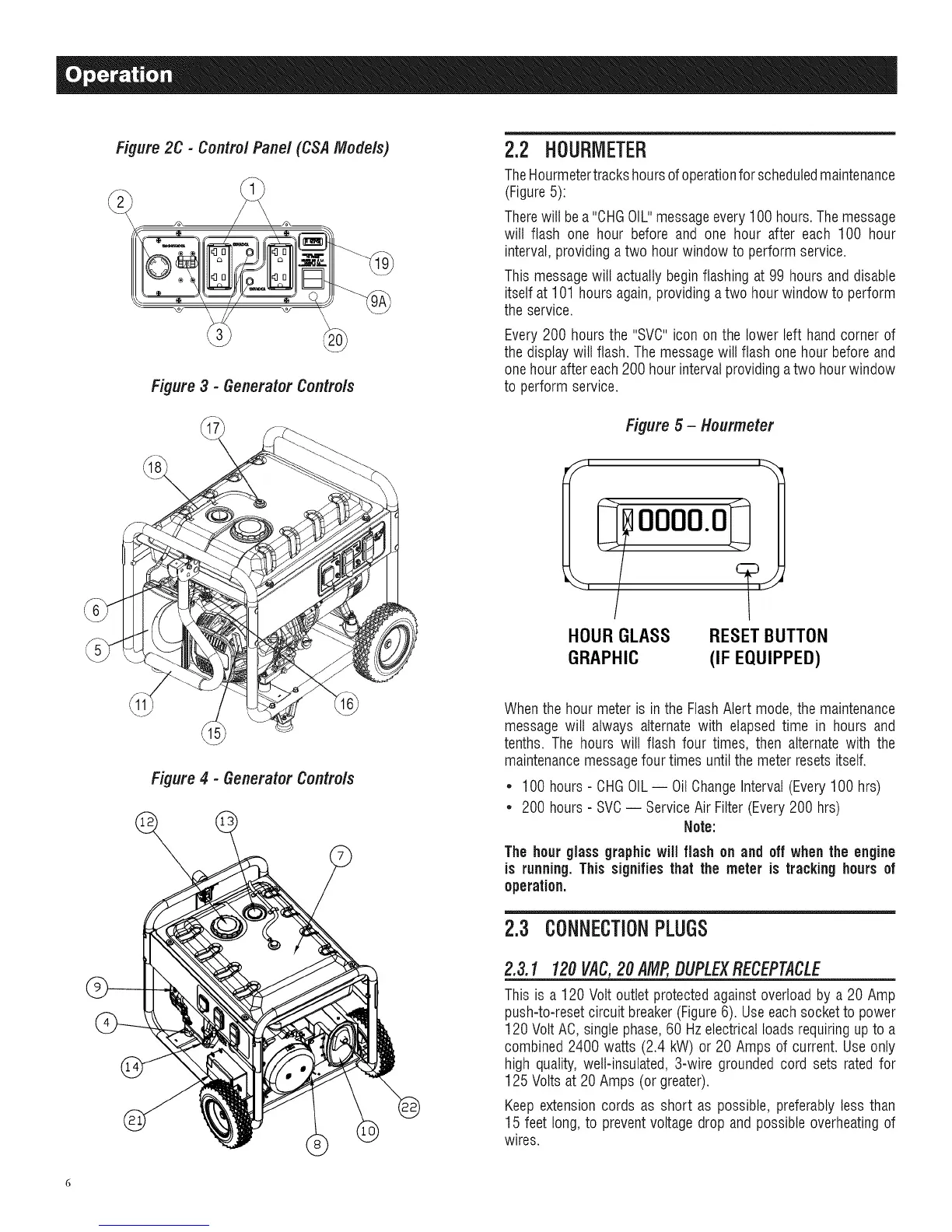

Figure 2C - Contro/ Pane/ (CSA Models)
Figure3 - GeneratorControls
2.2 HOURMETER
TheHourmetertrackshoursofoperationforscheduledmaintenance
(Figure5):
Therewill bea"CHGOIL"messageevery100 hours.Themessage
will flash one hour before and one hour after each 100 hour
interval,providinga two hourwindow to perform service.
This messagewill actuallybeginflashing at 99 hoursand disable
itselfat 101 hoursagain,providingatwo hourwindow to perform
theservice.
Every200 hoursthe "SVC"icon on the lower left hand corner of
thedisplay will flash. Themessagewill flash one hourbeforeand
onehour aftereach200 hourintervalprovidingatwo hourwindow
to perform service.
Figure5 - Hourmeter
HOUR GLASS
GRAPHIC
O000.O
RESETBUTTON
(IF EQUIPPED)
Figure4 - Generator Controls
Whenthe hour meter is inthe FlashAlert mode, the maintenance
message will always alternate with elapsed time in hours and
tenths. The hours wilt flash four times, then alternate with the
maintenancemessagefour times until the meter resets itself.
* 100 hours- CHGOIL-- OilChangeInterval(Every100 hrs)
* 200 hours- SVC-- ServiceAir Filter(Every200 hrs)
Note:
The hour glass graphic will flash on and off when the engine
is running.This signifies that the meter is tracking hours of
operation.
2.3 CONNECTIONPLUGS
2.3.1 120VAC,20AMP,DUPLEXRECEPTACLE
This is a 120 Volt outlet protectedagainst overloadby a 20 Amp
push-to-resetcircuitbreaker(Figure6). Useeach socketto power
120 VoltAC, singlephase,60 Hzelectricalloadsrequiringupto a
combined 2400 watts (2.4 kW) or 20 Amps of current. Use only
high quality,well-insulated, 3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater).
Keep extensioncords as short as possible, preferablyless than
15 feet long, to preventvoltage drop and possibleoverheatingof
wires.
