REPLACING THE MOTOR
Should the motor require replacement, proceed as follows:
Never attempt to repair the motor yourself. Contact a qualified technician.
REMOVING MOTOR - 90-270 & 90-270HD
Loosen the nut under the motor support plate , and
remove the bolt . Then, remove the nut behind the
motor support plate and remove the bolt .
Removing those two bolts will loosen the motor pulley’s
belt(s*). Remove the belt(s*). You will then be able to
remove the entire motor assembly.
MOTOR HANDLING - #
90-270HD ONLY
The motor on model 90-270HD is very heavy. Do not
over-exert. The help of at least one assistant will be
needed for the following step. Ideally, a hoist should
be used for lifting the motor. A hoisting eyebolt is
attached to the motor for this purpose.

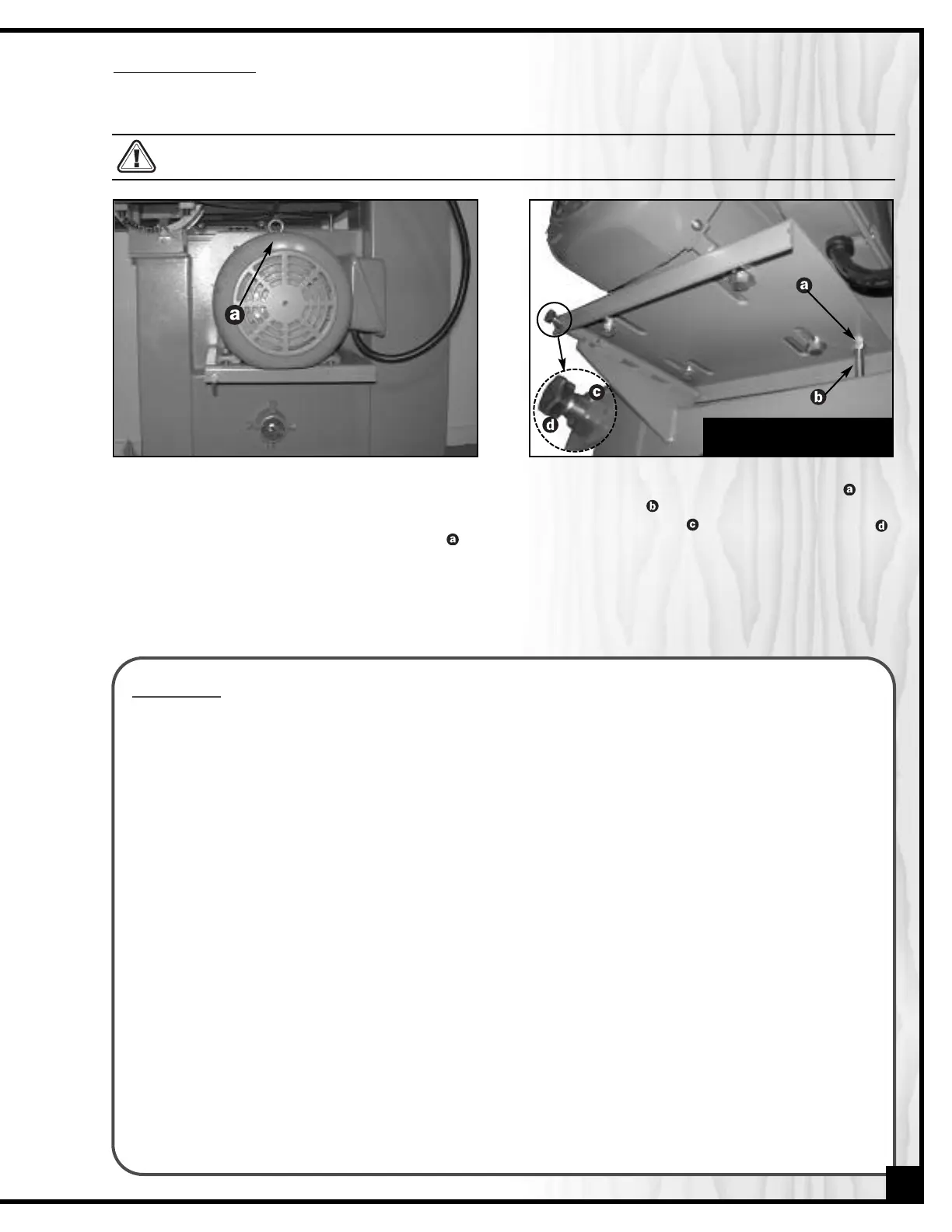

MOTOR UNDERSIDE VIEW
