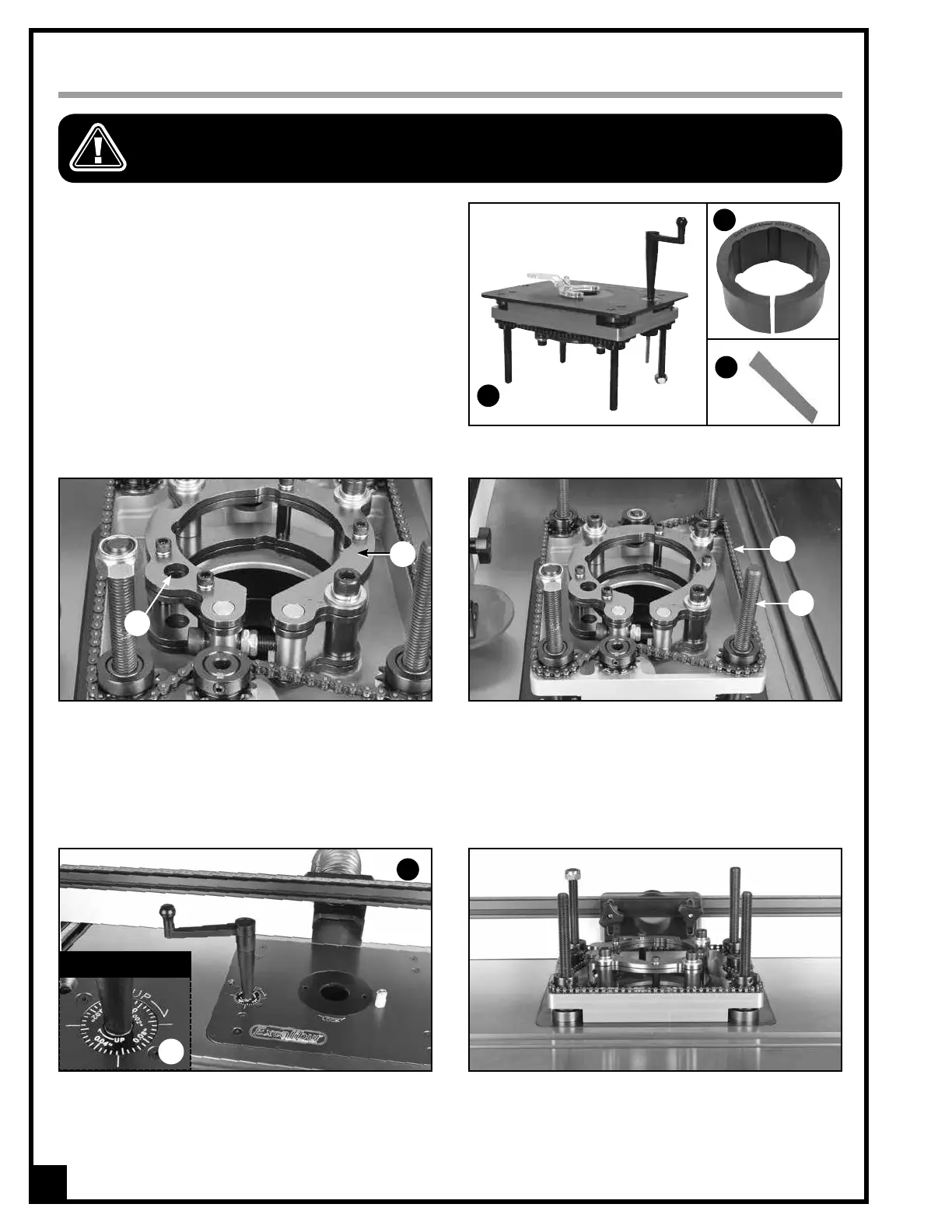

This model 40-125 “fixed base” router lift, A is designed to
accommodate the largest diameter router motor body
currently available.
Note: Based on our research this is the Porter Cable model
7518 and 7519 router motors which measure 4.200” in diam-
eter.
All other motors (smaller diameters) will require a shim C
(item # 40-626, available from you local General Intera-
tional dealer), or a reducer collar such as our model
40-312 (for 3 1/2” motors) or 40-314 (for 3 1/4” motors), B,
to center the router as well as prevent from overtightening
the clamping system.
ASSEMBLY INSTRUCTIONS - MOUNTING A ROUTER
SERIOUS PERSONAL INJURY COULD OCCUR IF YOU CONNECT THE MACHINE TO THE POWER SOURCE BEFORE YOU HAVE COM-
PLETED THE INSTALLATION AND ASSEMBLY STEPS. DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL INSTRUCTED
TO DO SO.
Clean packing lubricant from the lift posts/screws F
and the chain G. Clean it by spraying with a solvant
which will dilute the grease, and then wipe clean or
use compressed air to “blow dry”. After degreasing,
reapply some dry lubricant.
Note: The factory installed adjusting screw on the Milwau-
kee motor must be lined up and inserted into the hole D
located in our clamping bracket E.
1. Insert the crank handle in the black hole sur-
rounded by digits as shown in H.
2. To raise the lifting carriage on the router lift to the
highest or maximum upward position, turn the
crank handle clockwise.
3. Remove the crank handle, and flip the lift over in
the table.
A
B
C
H
E
D
F
G
20
CLOSE UP VIEW
I
To Next Page
