General Excalibur 40-200C User Manual

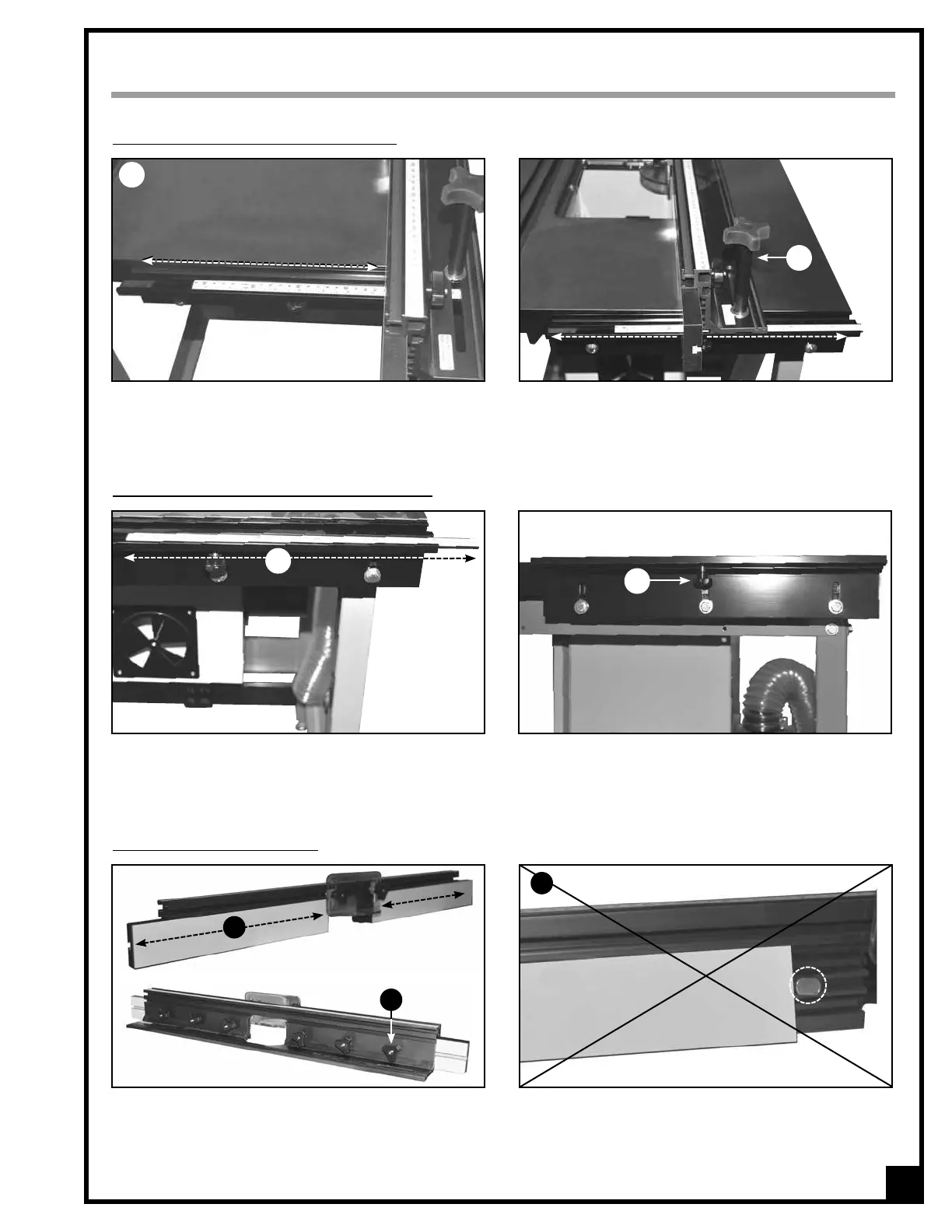

BASIC ADJUSTMENTS & CONTROLS
ADJUSTING THE FENCE ALONG THE RAILS
The fence can be slid along the rails A. Loosen locking handles B, slide fence then lock in position by re-tightening
the locking handle. Repeat on the other extremity of the fence.
ADJUSTING THE SLIDING SCALE ON THE RAILS
The scale on the rails can be adjusted along the rails A. Loosen lock knob B, slide the fence up to where you need
it to be, then lock in position by re-tightening the lock knob. Repeat for the sliding scale on the other rail.
A
B
A
ADJUSTING THE FENCE FACES
A
B
C
Depending on the size of the workpiece and the bit being used, the white fence faces can be adjusted along the
fence body A. Loosen the 3 lock knobs, B on one side of the fence and then slide the fence face up to where you
need it to be. Then lock in position by re-tightening the lock knobs. Repeat with the second fence face on the other
side of the fence body.
Note: Do not slide the fence faces too far and off the first T-bolt head, as shown in C.
23
B
