General Excalibur 40-200C - Parts List & Diagrams

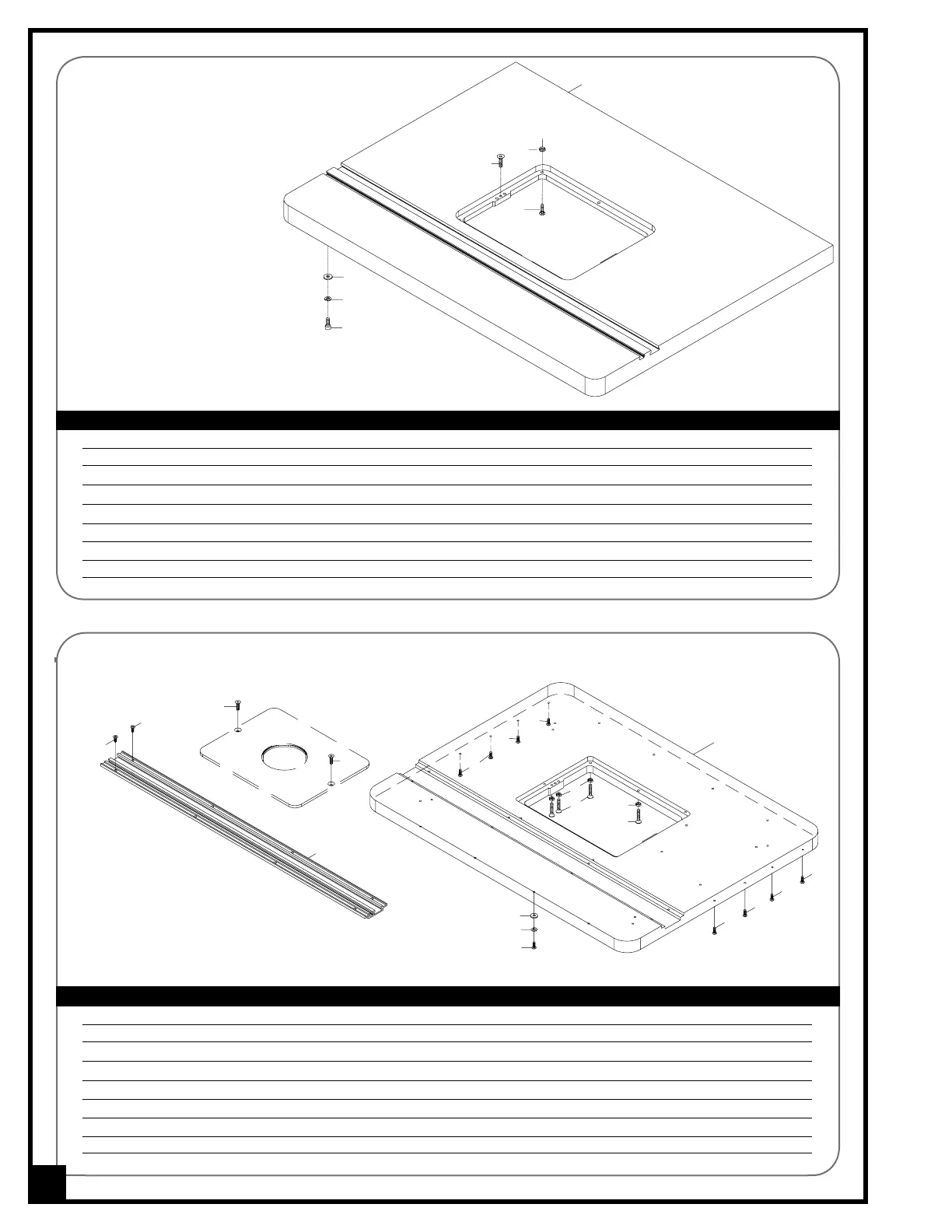

CAST-IRON TABLE 27”X 16”
#40-070
1
2
5
6
7
4
3
PART NO. REFERENCE NO. DESCRIPTION SPECIFICATION QTY
40075-01 3224U014 CAST-IRON TABLE 32” X 24” 1
40075-02 903M06030 FLAT HEAD CAP SCREW M6 X 30 MM 2
40075-03 910M06000 HEX NUT M6 10
40075-04 905M06020 FLAT HEAD SCREW M6 X 20 MM 10
40075-05 914M061602 FLAT WASHER M6 6
40075-06 915M06000 LOCK WASHER M6 6
40075-07 901M06016 CAP SCREW M6 X 16 MM 6
PARTS LIST – #40-075
Cast-iron table
(with model #40-200C)
4
4
3
1
7
7
7
7
7
7
7
7
5
6
5
6
9
8
2
2
PART NO. REFERENCE NO. DESCRIPTION SPECIFICATION QTY
40045-01 3224U014A PHENOLIC TABLE (3224) 800 X 600 1
40045-02 903M06030 FLAT HEX SOCKET HEAD SCREW M6 X 30 2
40045-03 60700030A T-SLOT GUIDE RAIL (3224) 1
40045-04 902M05012 ROUND SOCKET HEAD SCREW M5 X 12 8
40045-05 905M06040 FLAT HEAD SCREW M6 X 40 10
40045-06 910M06000 HEX NUT 40130 10
40045-07 901M06016 HEX SOCKET HEAD SCREW (3224) M6 X 16 32
40045-08 914M061302 FLAT WASHER (3224) M6 24
40045-09 915M06000 LOCK WASHER (3224) M6 24
PARTS LIST – #40-045
Phenolic table
(with model #40-200P)
30
