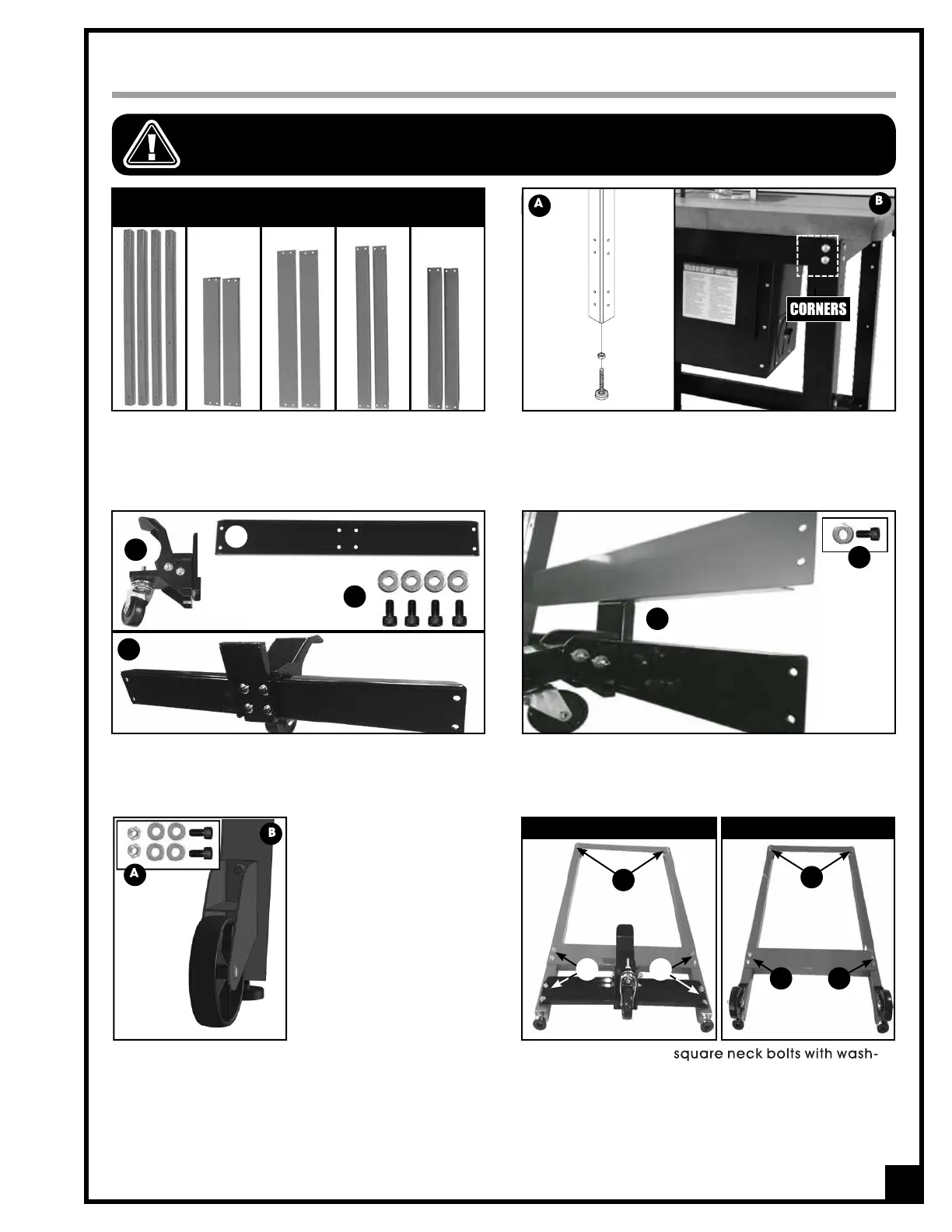

ASSEMBLY INSTRUCTIONS - 40-085 ROUTER TABLE STAND
SERIOUS PERSONAL INJURY COULD OCCUR IF YOU CONNECT THE MACHINE TO THE POWER SOURCE BEFORE YOU HAVE COM-
PLE-TED THE INSTALLATION AND ASSEMBLY STEPS. DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL INSTRUCTED
TO DO SO.
A
B
D
B
4. Using the supplied socket head screws with wash-
ers A, attach a caster bracket to the front and
rear right side legs as shown in B.
6. Using the supplied
ers, attach the bottom side brace with black swivel
caster assembly to the 2 legs without casters as
shown in A, Then attach a top side brace to the top
of the legs, B.
7. Attach the other bottom side brace to the bottom of
the two remaining legs C and the other top side bra-
ce to the top of the legs D.
RIGHT SIDE STAND SUB ASSEMBLY LEFT SIDE STAND SUB ASSEMBLY
A
B
A
C C
D
A
3. Attach the swivel caster assembly to a bottom side
brace as shown in A, using the 2 supplied socket
head screws with washers B.
2. Attach the pedal caster assembly A to the black
brace B using the 4 supplied socket head screws
with washers C as shown in D.
1. Insert an adjustable leveling foot into each leg as
shown in A.
Note: The four legs need to be positioned with the mount-
ing holes on both faces on the corners B.
LEGS
BOTTOM SIDE
CROSS BRACE
TOP SIDE
CROSS BRACE
FRONT/REAR
BOTTOM CROSS
BRACE
FRONT / REAR
TOP CROSS
BRACE
You will find two different brace lengths and styles; the
4 shorter ones are for the sides. All the narrow braces
are for the top of the stand, and the wider ones are for
the bottom.
C
11
B
To Next Page
