44-00-0297 SHERLOCK102/202 REV. 4.1 05-02-1518
STACKABLE BEACON
A unique signaling appliance which contains two strobe mod-
ules, blue, red or amber, stacked onto a single base unit.
ENCLOSURE: Indoor/outdoor - NEMA 3R
POWER INPUT: 12VDC, 500 ma max.
SOUND OUTPUT: 85 db at 10 ft. (3.05 m)
FLASH RATE: 65 flashes/min
LENS COLORS: Red, blue and/or amber
(must be different colors)
STROBE/ HORN STROBE / BEACON
Specifications
• lens color: Blue, Amber or Red
• long-life xenon tube
• protected against polarity reversal
• fully sealed and waterproof
• power output: 1W
• power supply: DC 12V
• current consumption: 150mA
• flash rate: 90-110/min.
• life expectancy: ± 3 x 1000000 flashes
• operation temperature: -40°F to +176°F
• black ABS / acrylic cover
• dimensions: 2.8”(Ø) x 2.5”

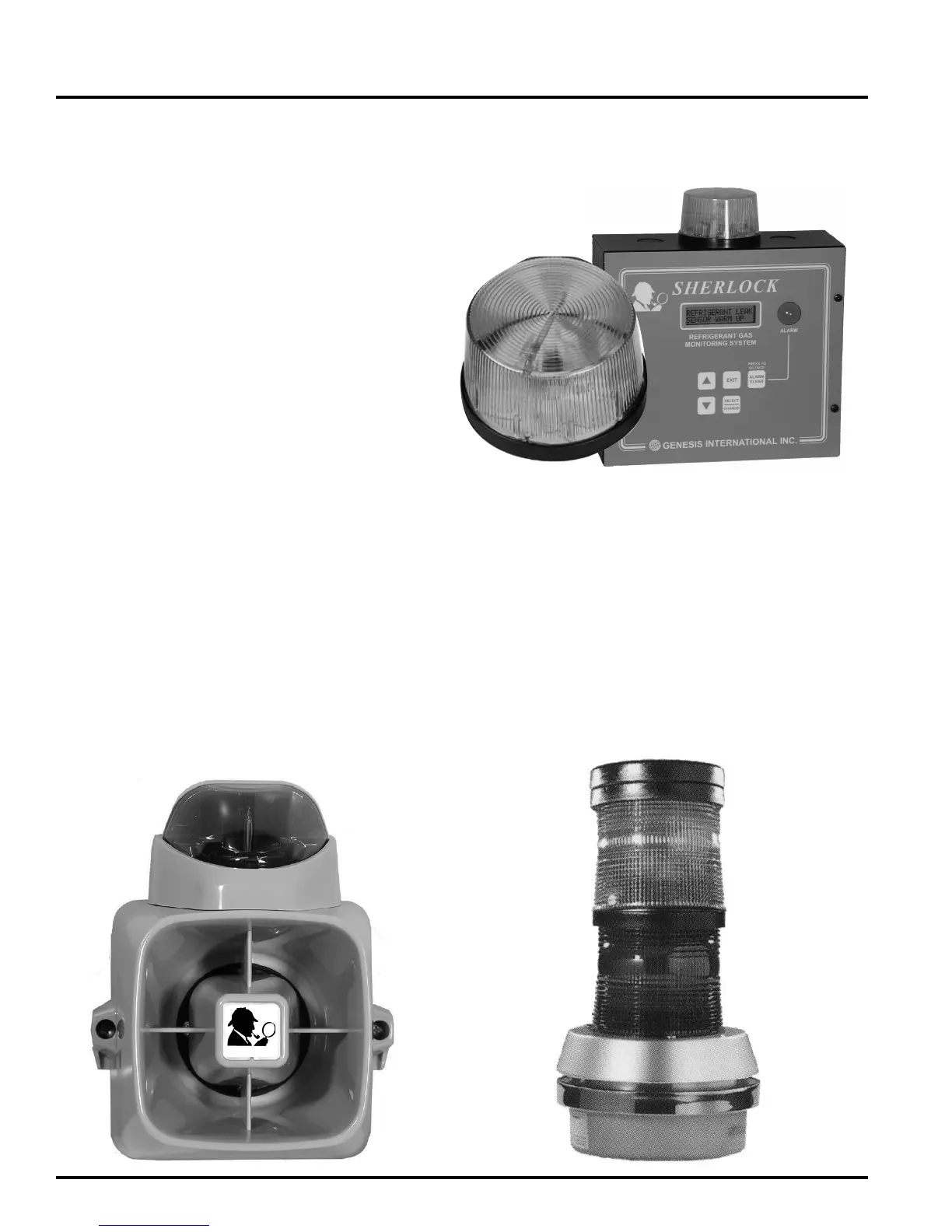

STROBE LIGHT
Optional Strobe light factory mounted on the SHERLOCK 102/202 Monitor
by GENESIS
COMBINATION HORN/STROBE
The Horn/Strobe is a durable indoor/outdoor self-contained
siren / strobe combination. The Horn/Strobe has a strong poly-
carbonate housing and a sturdy aluminum back plate to prevent
warping and cracking.
ENCLOSURE RATING Indoor/Outdoor
POWER INPUT 12V DC, 670mA
SOUND OUTPUT 120dB @ 10ft (3.05M)
FLASHING RATE 20 - 100 Flashes/Min
OPERATING ENVIRONMENT
TEMPERATURE -4°- 149°F (-20°- 65°C)
HUMIDITY 0 TO 95% RH Non-
Condensing
