4
For Help, call 1-800-35-GENIE or visit www.geniecompany.com
MEASURE GARAGE DOOR HEIGHT
Measure garage door height (7'-6", 8'-0", or taller) with
tape measure.
A If door height is 7'-6" or less, continue with Check Step 4.
B If your door height is above 7'-6", make sure your rail is long
enough to open the garage door. If there is any question
contact your Customer Service Representative at
1-800-35-GENIE.
Check Step 3:
CHECK DOOR H
EADER AREA
A Find vertical center line of door and header:
• Close door.
• Measure door width at top.
• Mark a point at center of door and on header directly
above door. Draw a center line to connect points.
B Find Header Bracket mounting height (Figure 4):
(Do not attach Header Bracket).
• Raise door, watching top edge of door and stop door
when its edge reaches its highest point.
• Measure distance (“H”) from top edge of door to floor.
–For sectional doors, add 2-1/2" to “H”.Mark a point
on center line. Bottom of Header Bracket will be
installed here.
–For one-piece doors, add 6" to “H”.Mark this point on
center line. Bottom of Header Bracket will be
installed here.
C Check wall for a stud or a solid header at your mark:
(If checking a finished wall, a stud finder may be helpful).
• If location is above Header, a 2" x 6" board must be
screwed to studs beside your mark with at least two Lag
Screws and Flat Washers (not provided).
• Transfer your mark to new mounting board.
Check Step 4:
NOTE
The header is a heavily reinforced section of the wall just
above the top of the garage door opening.
NOTE
• For both types of doors:
–If the ceiling in your garage is so low that there is
not at least a 3" space above the Header Bracket
mounting point, contact a Genie Factory
Authorized Dealer.
• If a door spring is in the way, place the Header
Bracket avove the spring. Do Not move the door spring.
Rail Extension for
8' door

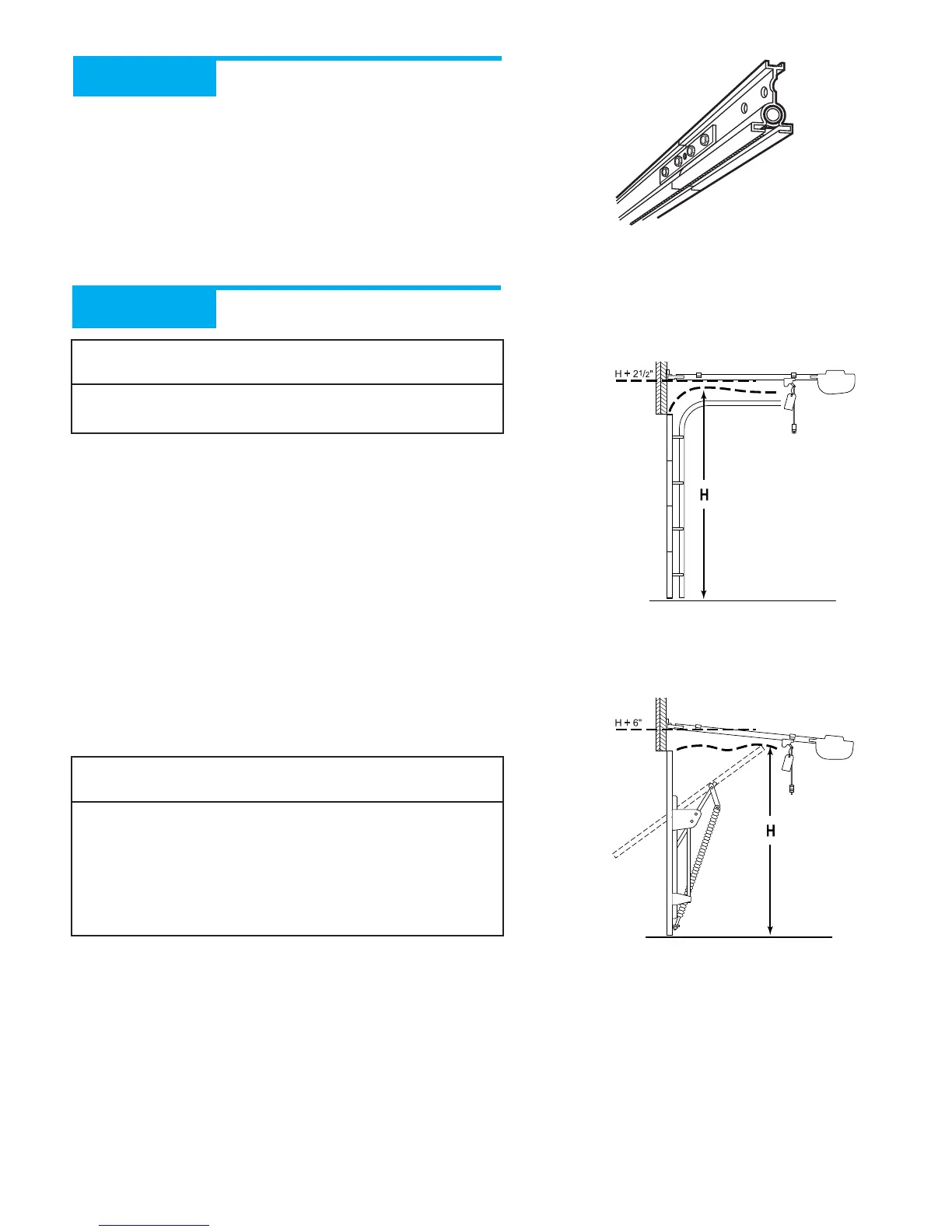

Figure 3 Rail Extension Kit
Figure 4 Find Highest Point of Travel
SECTIONAL DOOR
ONE-PIECE DOOR
