16
For Help, call 1-800-35-GENIE or visit www.geniecompany.com
CH INSTALL SAFE-T-BEAM®
S
YSTEM
Installation Step 6:

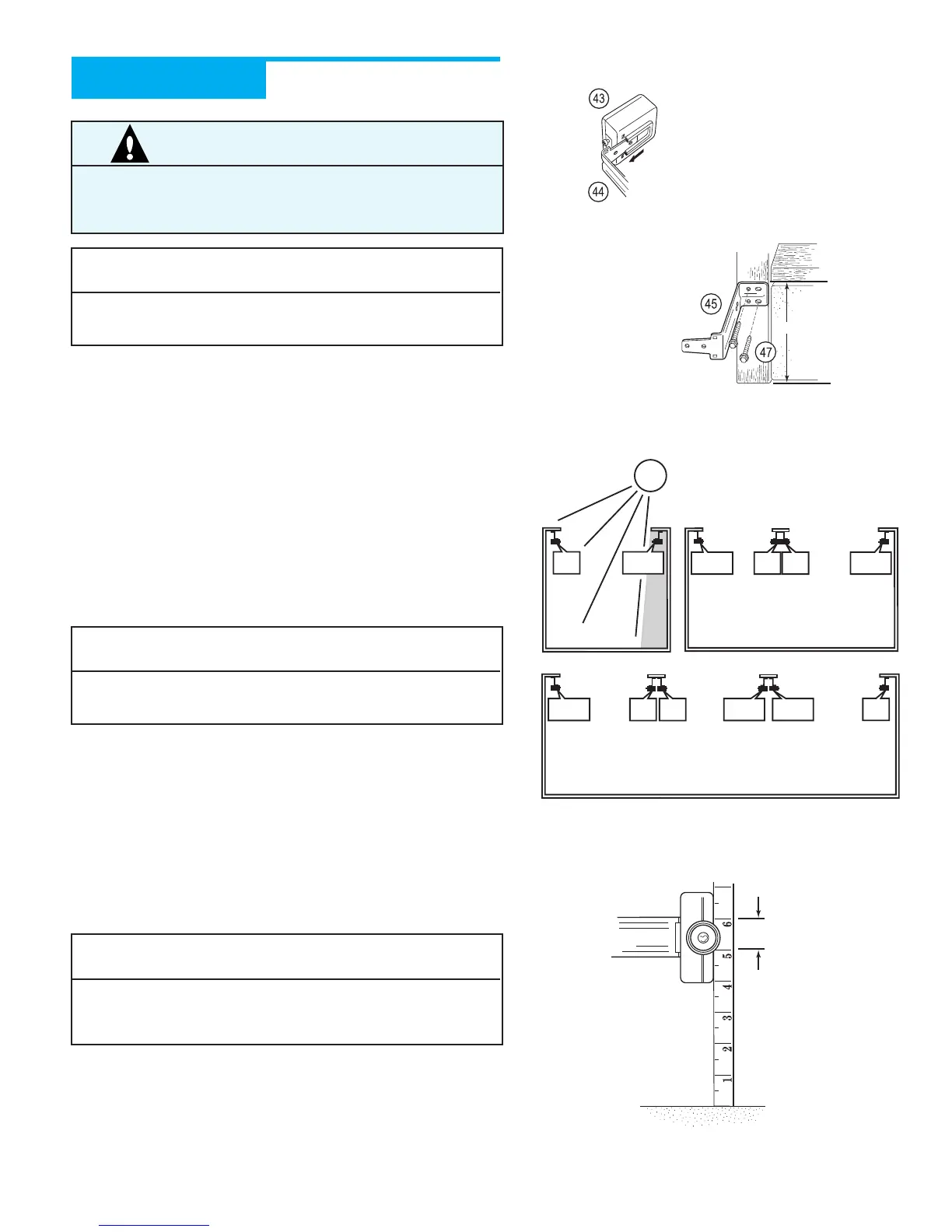

A Install Safe-T-Beam® Source and Sensor (Figure 25):
• Mark both sides of garage door frame or wall 6"
above floor.
• Hold Bracket against door frame or wall. Check if Bracket
extends out from wall far enough so tongue of Bracket is
beyond door, tracks, or any door hardware. If not, Safe-T-
Beam® Mounting Bracket Extensions are available from a
Genie Factory Authorized Dealer or through the
Accessories Order Form.
–Blocks of wood, etc. may be substituted
for extensions.
• Position top of Mounting Bracket at 6" mark and fasten
with 2 (#10-16 x 1-1/4") Phillips Hex Head Screws
per Bracket.
B Attach Safe-T-Beam® Source (Red LED) and Sensor (Green
LED) to Brackets (Figure 25):
• For single-door garages.
–Determine which side of garage receives the most
direct sunlight, and place Source (Red LED) on this
side whenever possible.
• For multiple-door garages see (Figure 26).
–Preventing crossed signals is critical.
–Place Source and Sensor modules on adjacent doors
facing in opposite directions.
• Slide the Safe-T-Beam® Source and Sensor onto the
tongues of the Brackets until they click into place.
• Check final height of Lens (Figure 27).
ELECTRICAL WARNING
Ensure there is No power to the Opener before installing
Safe-T-Beam® System Wires. If Opener is plugged into outlet,
Unplug it now.
NOTE
The Opener will not close the door automatically unless the
Safe-T-Beam® System is installed.
NOTE
Mounting Brackets can be attached to brick walls or concrete
floor using masonry anchors (not included).
NOTE
To help prevent interference from the sun, the Safe-T-Beam®
Sensor (Green LED) may be placed further away from the
door opening, where it will spend more time in the shadows.
