Section 6: Service & Maintenance

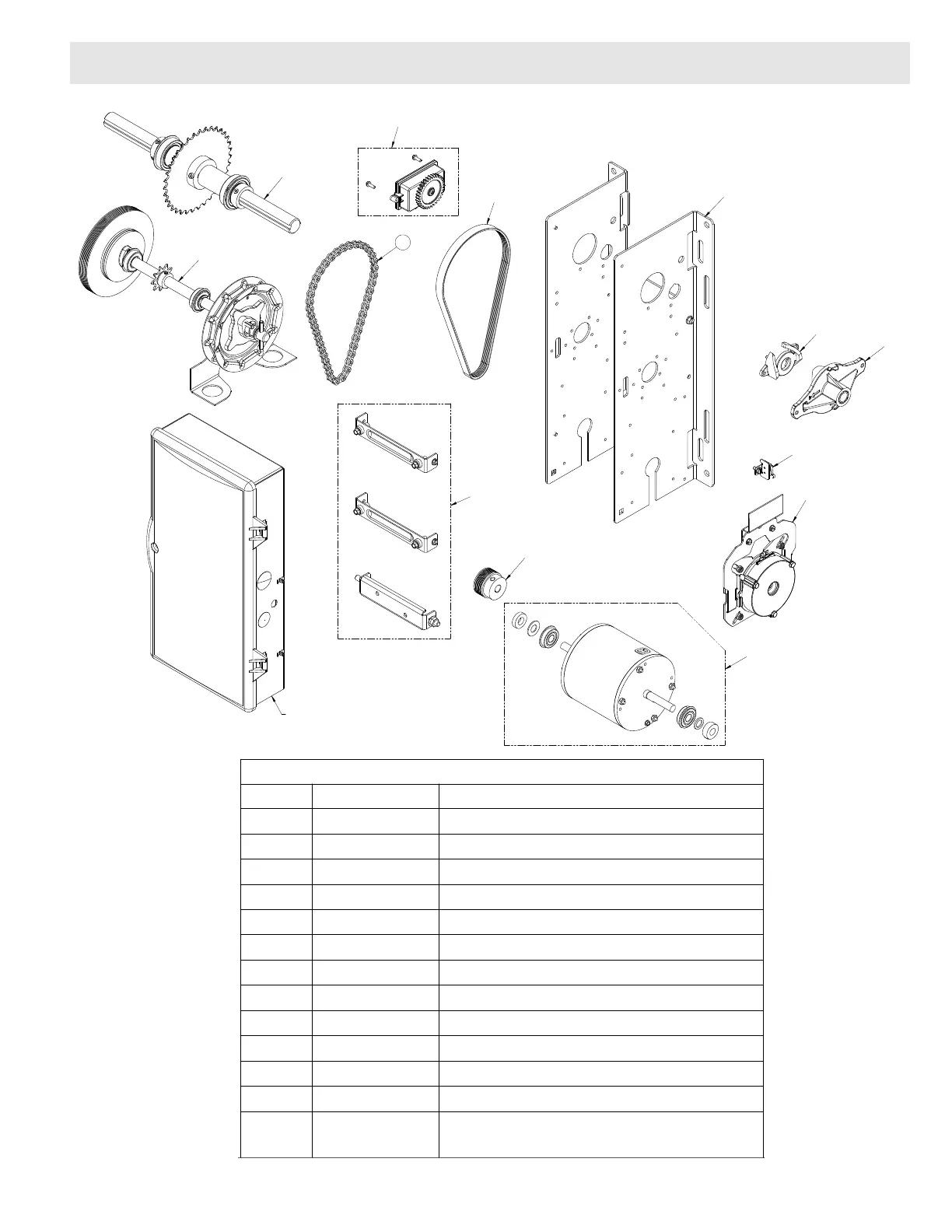

BILL OF MATERIAL
ITEM NO.
PART NO. DESCRIPTION
1 113125-0001 KIT, ENCLOSURE, MZ
2 111010-0001 BELT, POLY-V, STRETCH
3 111421-0003 LIMIT MODULE, X-SERIES, AK
4 113055-0048 CHAIN, #410 X 48P, LOOP
5 113068-0002 BRAKE ASSY, HOIST, MZ
6 113058-0002 SHAFT ASSY, OUTPUT, DC/IC, MZ
7 113057-0003 SHAFT ASSY, CLUTCH, HOIST, MZ
8 113126.0001 KIT,BRKT, MZ
9 113030.0001 PULLEY, MOTOR, MZ
10 113021.0001 KIT, MOTOR, SVCE, MZ
11 111089-0001 RELEASE ASSY, HOIST
12 111036-0001 LIFTING RAMP, RELEASE
13 111420.0001 SWITCH ASSY,INTERLOCK, RH
11
13
1
2
3
4
5
6
7
8
9
21
12
ELECTRIC BOX
HOIST
13 113144.0001 SWITCH ASSY,INTERLOCK, LH
