Sec-6.3
Section 6: Service & Maintenance
9
10
1
5
4
3
2
6
7
8
ELECTRIC BOX
11
JACKSHAFT

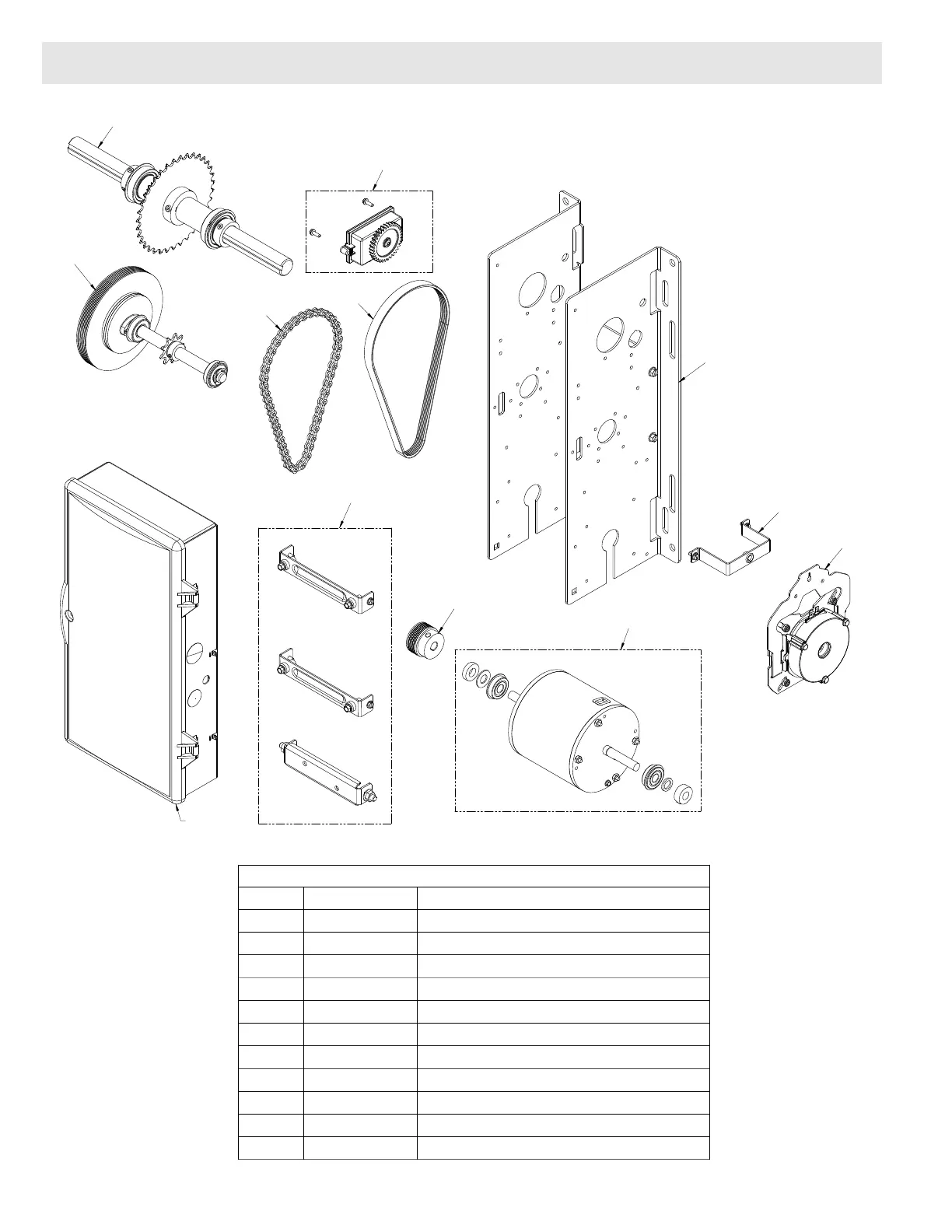

BILL OF MATERIAL
ITEM NO.
PART NO. DESCRIPTION
1 113125-0001 KIT, ENCLOSURE, MZ
2 111010-0001 BELT, POLY-V, STRETCH
3 111421-0003 LIMIT MODULE, X-SERIES, AK
4 113055-0048 CHAIN, #410 X 48P, LOOP
5 113068-0001 BRAKE ASSY, TROLLEY/JACKSHAFT, MZ
6 113058-0002 SHAFT ASSY, OUTPUT, DC/IC, MZ
7 113057-0002 SHAFT ASSY, CLUTCH, JACKSHAFT, MZ
8 113126-0001 KIT, BRKT, MZ
9 113030-0001 PULLEY, MOTOR, MZ
10 113021-0001 KIT, MOTOR, SVCE, MZ
11 113054-0001 BRACKET, RELEASE, JACKSHAFT
