12
ENGLISH
CONTROL BOARD SPRINT 382
1. WARNINGS
Before attempting any work on the control board (connections, main-
tenance), always turn off power.
Install, upstream of the system, a differential thermal breaker with
adequate tripping threshold.
Connect the earth cable to the appropriate terminal on the J7 con-
nector of the equipment (see fig.2).
Always separate power cables from control and safety cables (push-
button, receiver, photocells, etc.). To avoid any electric noise, use
separate sheaths or a shielded cable (with earthed shield).
2. TECHNICAL SPECIFICATIONS
Power supply 230 V~ ( +6% -10%) - 50 Hz
Absorbed power 10 W
Motor max. load 1000 W
Accessories max. load 0,5 A
Operating ambient tempe-
rature
-20 °C +55 °C
Protection fuses 2 (see fig. 1)
Function logics
Automatic / “Stepped” automatic / Semi-au-
tomatic / Safety devices / Semi-automatic B
/ Dead-man C / “Stepped” semi-automatic
/ Mixed Log. B+C
Work time Programmable (from 0 to 4 min.)
Pause time Programmable (from 0 to 4 min.)
Thrust force Adjustable over 50 levels
Terminal board inputs
Open / Pàartial opening / Safety devices
at opng. / Safety devices at clsng. / Stop /
Edge / Power supply + Earth
On-connector inputs
Opening and closing limit-switches / Enco-
der
Terminal board outputs
Flashing lamp - Motor - 24 Vdc accessories
power supply - 24 Vdc indicator-light / Timed
output. - Fail safe
Rapid connector 5-pin card connection for receivers
Programming
3 keys (+, -, F) and display, “basic” or
“advanced” mode
Basic mode programmable
functions
Function logic - Pause time - Thrust Force
- Gate direction
Advanced mode program-
mable functions
Torque at initial thrust - Braking - Fail safe
- Pre-flashing - Indicator-light/Timed output -
Opening and closing safety devices logic -
Encoder - Decelerations - Partial opening
time - Work time - Assistance request - Cycle
counter

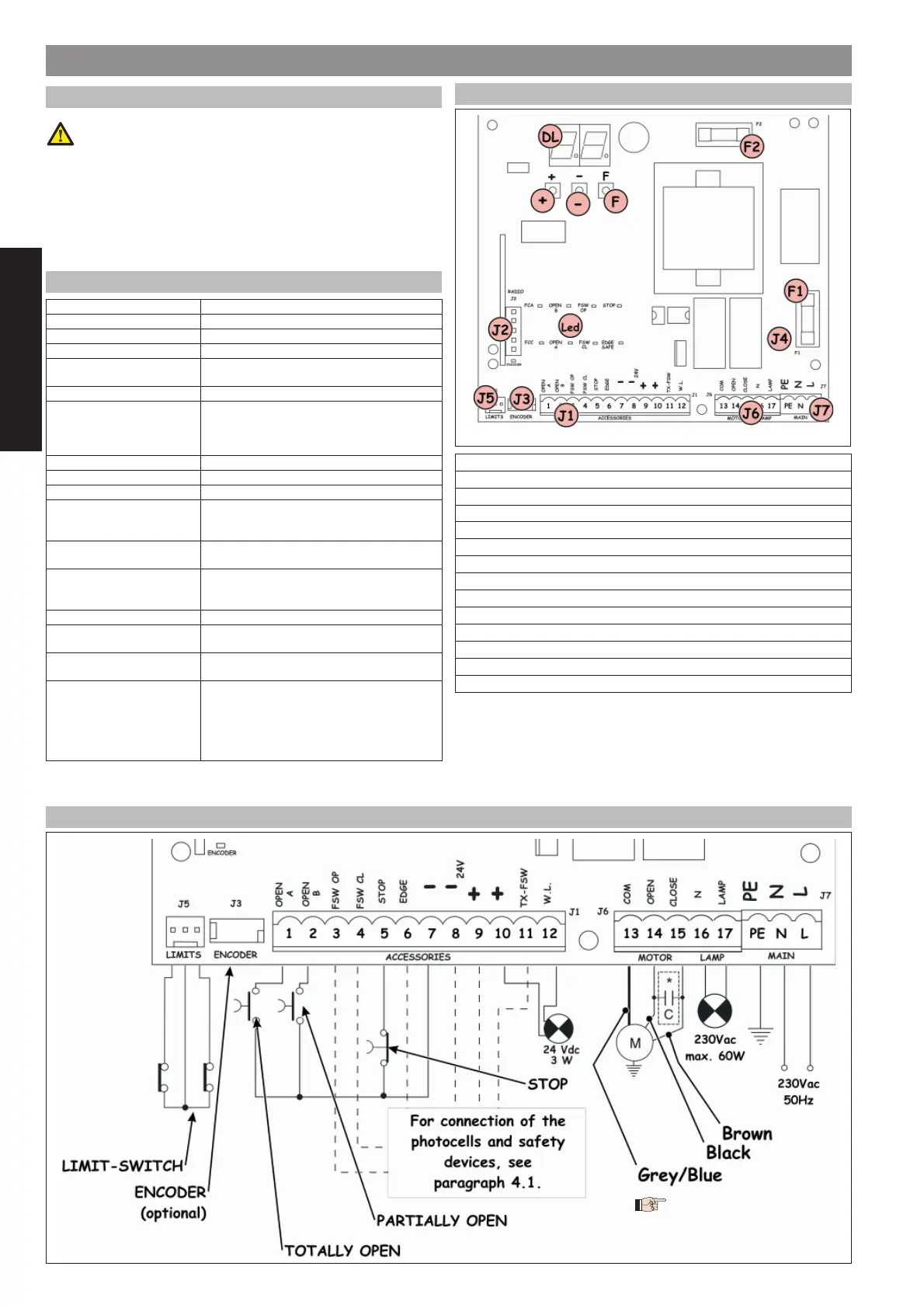

3. LAYOUT AND COMPONENTS
DL SIGNALLING AND PROGRAMMING DISPLAY
Led INPUTS STATUS CONTROL LED
J1 LOW VOLTAGE TERMINAL BOARD
J2 CONNECTOR FOR RECEIVER
J3 ENCODER CONNECTOR
J4 CAPACITOR CONNECTOR
J5 LIMIT -SWITCH CONNECTOR
J6 MOTORS AND FLASHING LAMP CONNECTION TERMINAL BOARD
J7 POWER SUPPLY TERMINAL BOARD 230Vac
F1 MOTORS AND TRANSF. PRIMARY FUSE (F 5A)
F2 LOW VOLTAGE AND ACCESSORIES FUSE (T 800mA)
F “F” PROGRAMMING PUSH-BUTTON
- “–” PROGRAMMING PUSH-BUTTON
+ “+” PROGRAMMING PUSH-BUTTON
Fig. 1Fig. 1
4. ELECTRIC CONNECTIONS
Fig. 2Fig. 2
* Only if don’t use J4 connector * Only if don’t use J4 connector
