GeoMax Zone80 DG User Manual

4 ZRC60 Remote Control

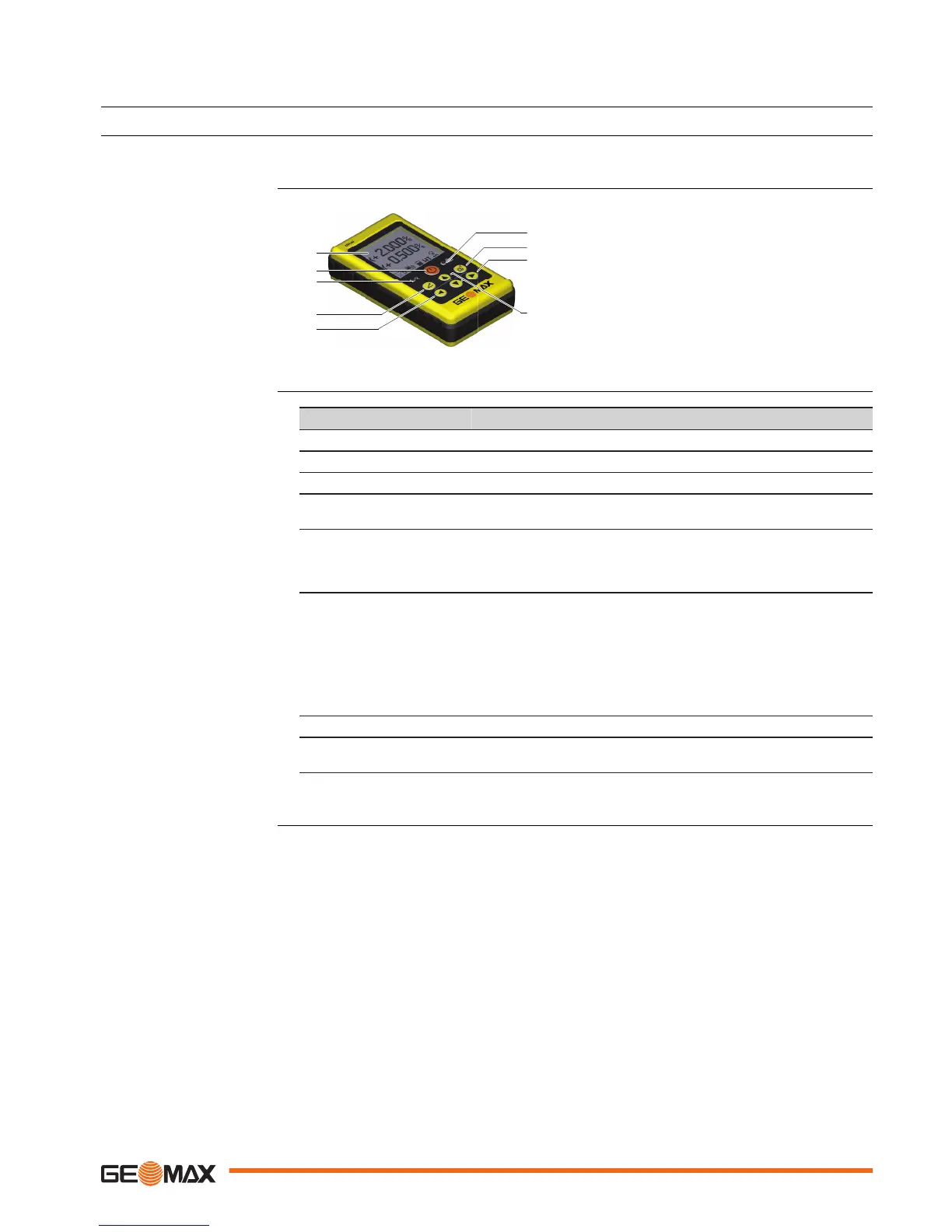

4.1 Description of the Remote Control
The RF Remote Control communicates with the Zone80 DG via RF (radio frequency) and is used
to control the same functions as on the laser.
011221_001
a
b
c
d
e
f
g
h
e
a LCD display
b Power button
c Remote battery LED
d Grade button
e Left and right arrow
buttons
f Zone80 DG LED
g Sleep mode button
h Up and down arrow
buttons
Components Function
LCD display Displays all required user information.
Power button Press to turn on or off the remote control.
Grade button Press to start grade entry mode.
Up and Down arrow but-
tons
Press to change the grade displayed.
Press both simultaneously to reset the grade value to zero.
Left and Right arrow but-
tons
Press to display and move cursor for grade entry.
Press both simultaneously to enter the Zone80 DG menu.
Press and hold simultaneously for 1.5 seconds to enter the
remote control menu.
Sleep mode button Press to put the Zone80 DG in sleep mode.
•
During sleep mode, all functions are disabled.
•
The LCD display indicates that the Zone80 DG is in sleep
mode.
•
The Zone80 DG sleeps for 2 hours
*
, then shuts down auto-
matically and must be turned on again at the laser.
•
When in sleep mode, pressing the sleep button wakes the
Zone80 DG and normal operation is resumed.
Zone80 DG LED Indicates level status of the Zone80 DG.
Remote battery LED Indicates when the batteries for the remote control should be
replaced.
* In the remote control menu, you can select the sleep time.
☞
The remote control is powered by 2x AA batteries.
If the remote battery LED flashes, replace the batteries as shown in the picture.
ZRC60 Remote Control
Description of the control
panel
Replacing the batteries
ZRC60 Remote Control 23
